Name: Grundfos UP26-96SF, 1/12 HP, 115v, Booster Pump 98961756
Brand: Grundfos
SKU: GNC01-0055
Price: 791.95 USD
Availability: OutOfStock

Grundfos UP26-96SF, 1/12 HP, 115v, Booster Pump 98961756

Roll over image to zoom in Click on image to zoom

UPS15-58FRC wet-rotor, stainless steel circulator pump with a 1/12 HP, 115v, single phase, 1-speed motor for hydronic heating in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UPS Series pumps feature a 3-speed motor, allowing users to adjust the pump speed to fit their specific application. Ceramic bearings ensure years of quiet, trouble-free operation, and quick-connect terminals provide easy installation.

Manufacturer	Grundfos
Part Number	98961756
Model	UP26-96SF
Speed Number	1
Max flow	28.2 US gpm
Maximum head	29.86 ft
Approvals	UL, CSA
Pump housing	Stainless steel, EN 1.4301
Impeller	Composite, PES
Maximum ambient temperature	104 °F
Ambient max at 176°F liquid	176 °F
Maximum operating pressure	145.04 psi
Type of connection	USA Oval, S.S. Flange
Pipe connection	2 - Bolt Flange
Pressure rating for connection	PN 10
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Max. power input	205 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Current in speed 3	1.7 A
Capacitor size - run	10 µF/180 V
Number of poles	2
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	internal
Terminal box position	9H
Gross weight	11.5 lb

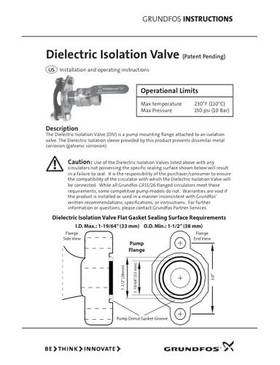

Dielectric Isolation Valve (Installation and operating instructions)

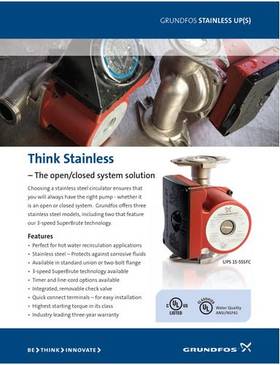

GRUNDFOS STAINLESS UP(S)

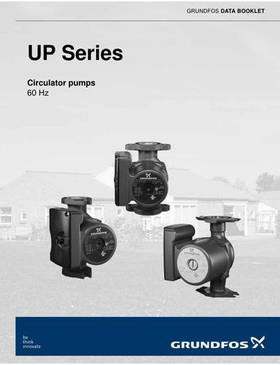

UP Series, Circulator pumps (Data booklet)

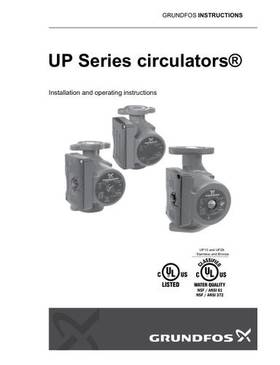

UP Series circulators® (Installation and operating instructions)

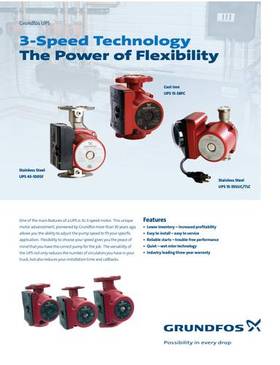

UPS, 3-SPEED TECHNOLOGY (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)

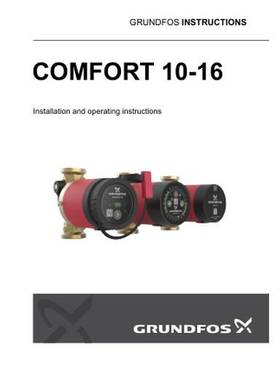

COMFORT 10-16 (Installation and operating instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

From the Atoms & Bits Blog

Grundfos Water Pumps - Comprehensive Guide

Published: Jan 08, 2026 By: Lucas Gasparotto

Discover Grundfos water pump models, learn about their benefits, technical details, main applications, controls, arrangement tips, and let Liberty Supply help you choose the ideal Grundfos pump today.

Grundfos Circulator Pumps | 2026 tips

Published: Feb 09, 2026 By: Lucas Gasparotto

Grundfos circulator pumps are a trusted choice for water systems. With proper setup and routine care, these pumps deliver quiet operation and optimized energy use. This guide highlights key checks ...

Save 9%

Grundfos

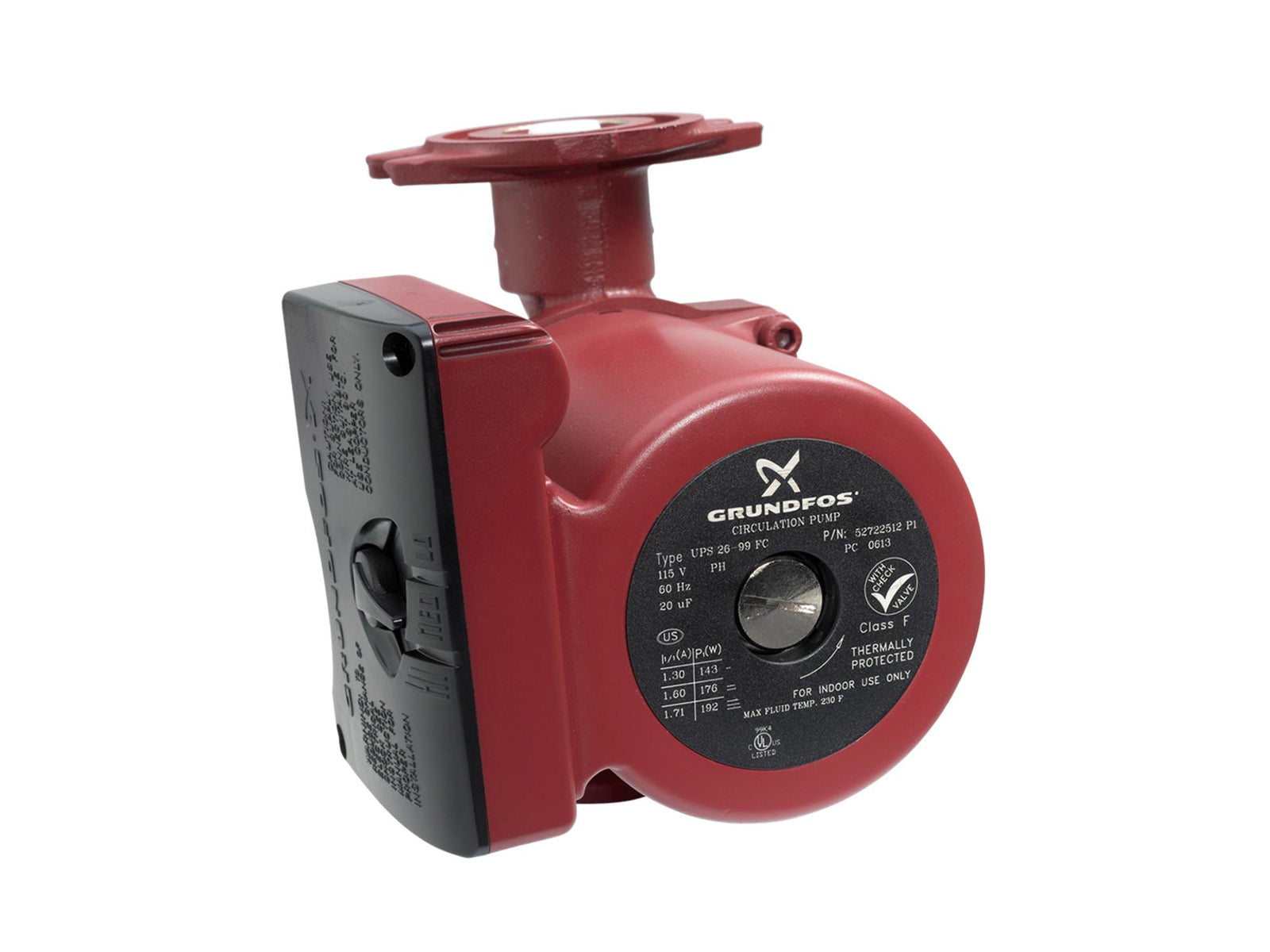

Grundfos 98961763, UPS26-99SFC Circulator Pump 115V 60 Hz
