Description

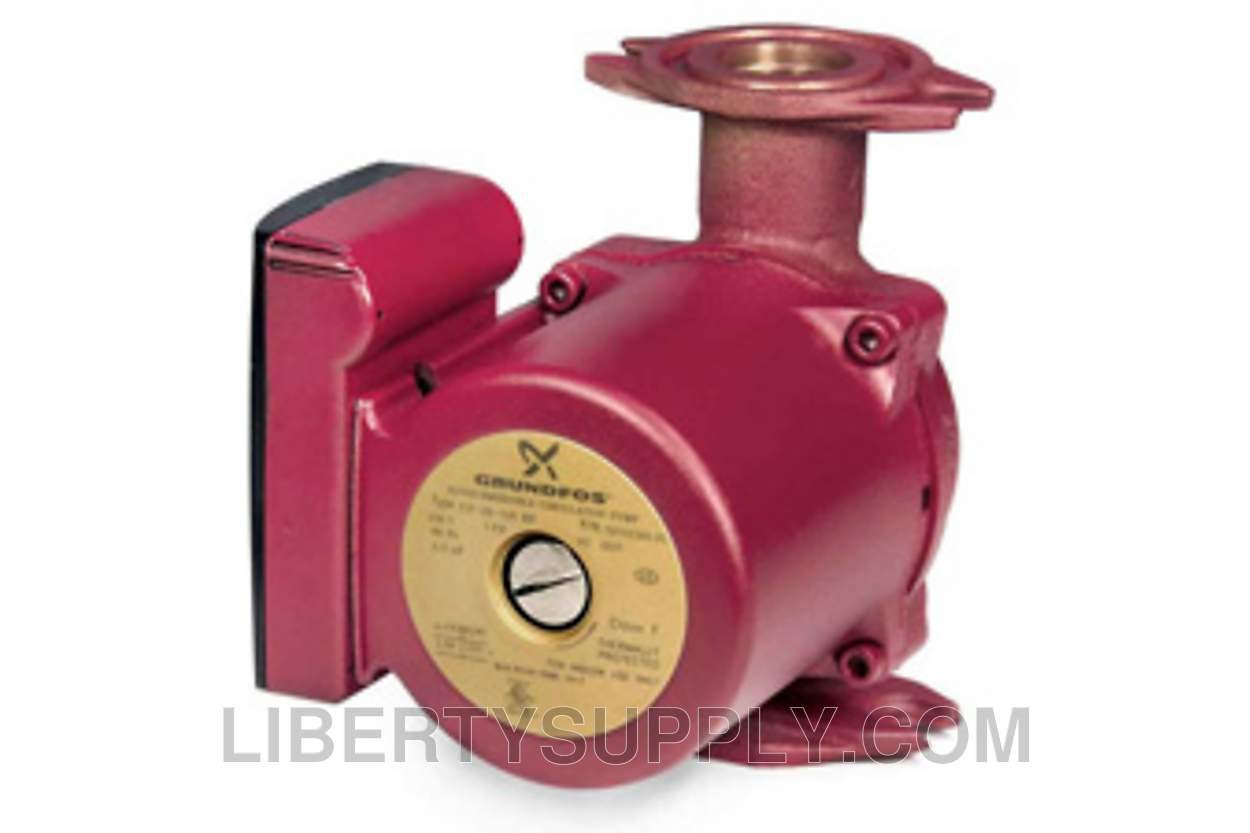

UP43-75BF wet-rotor, bronze circulator pump with a 1/6 HP, 230v, single phase, 1-speed motor for hydronic heating in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UP Series pumps feature a canned rotor design in which the pump and rotor form an integral unit without a shaft seal to provide long life, excellent performance, and quiet operation. Internally lubricated bearings eliminate frequent lubrication. The UP Series' impeller is made out of corrosive-resistant, non-metallic material.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 52722369 |
| Model | UP43-75BF |
| Speed Number | 1 |
| Rated flow | 21.7 US gpm |
| Max flow | 40.9 US gpm |
| Rated head | 14.73 ft |
| Maximum head | 24.94 ft |
| Approvals | UL, CSA |
| Pump housing | Bronze, EN 1982:2008 CC495K, ASTM B 505 C93700 |
| Impeller | Composite, PES+30% GF |
| Maximum ambient temperature | 104 °F |
| Ambient max at 176°F liquid | 176 °F |
| Maximum operating pressure | 145.04 psi |
| Type of connection | 2-BOLT FLANGE, Bronze Flange |
| Pipe connection | 2-BOLT FLANGE |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 8 9/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 35.6 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Max. power input | 220 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 230 V |
| Current in speed 3 | 1.07 A |
| Capacitor size - run | 2.5 µF/400 V |
| Number of poles | 2 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | CONTACT |
| Thermal protec | internal |
| Terminal box position | 9H |
| Net weight | 14.7 lb |
| Gross weight | 15.9 lb |
