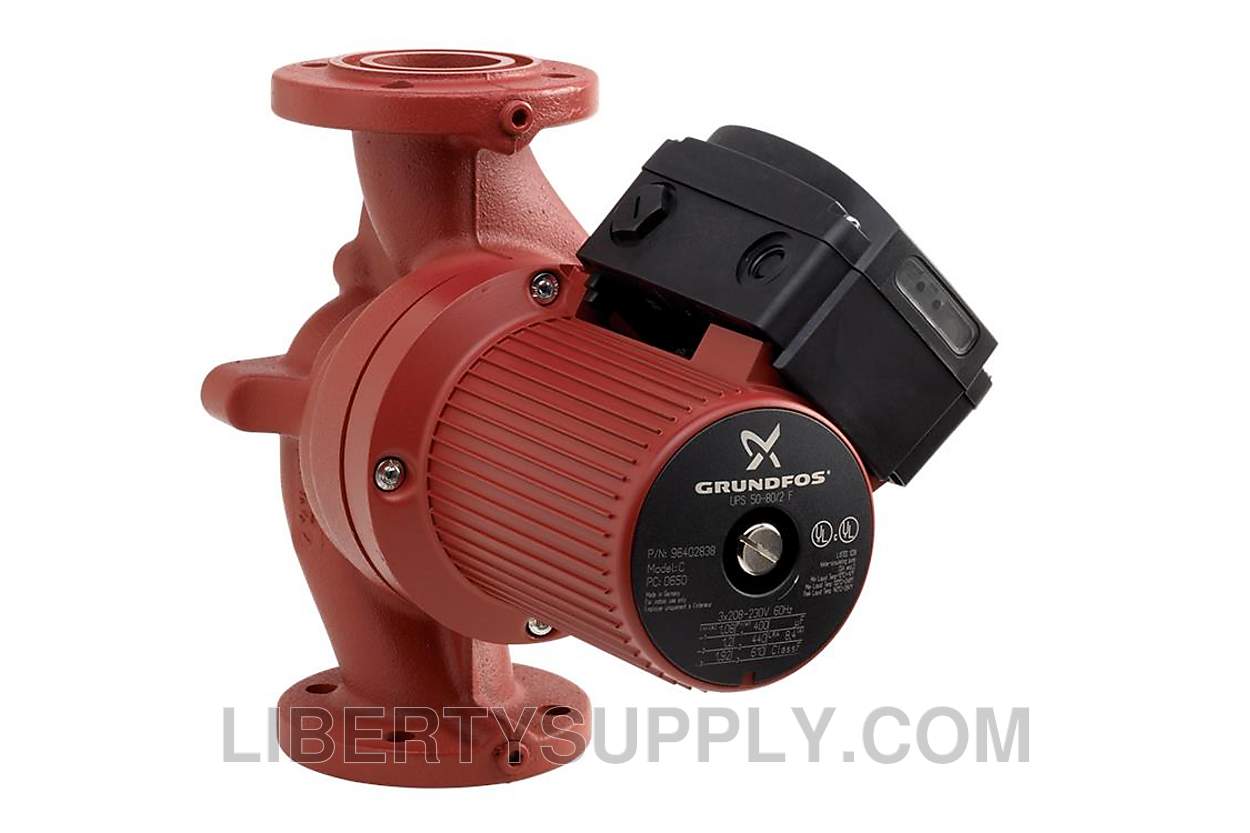

UP53-46BF wet-rotor, bronze circulator pump with 1-1/2" flanged connection and a 3/4 HP, 115/230v, single phase, 1-speed motor for hydronic heating and cooling in closed loop systems. It has a flow range of 0-98 GPM and a head range of 0-37 feet. Flange gaskets are included, but flanges are sold separately. Grundfos UP Series pumps feature a canned rotor design in which the pump and rotor form an integral unit without a shaft seal to provide long life, excellent performance, and quiet operation. Internally lubricated bearings eliminate frequent lubrication. The UP Series' impeller is made out of corrosive-resistant, non-metallic material.
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96633592 |
| Model | UP53-46BF |
| Speed Number | 1 |
| Maximum head | 15.09 ft |
| Approvals | CCSAUS,IAPMO |
| Pump housing | Bronze, CuSn10 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 145.04 psi |
| Type of connection | DIN |
| Pipe connection | GF 53 |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 9 7/8 in |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Max. power input | 420 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115-230 V |
| Current in speed 3 | 3.9/2.1 A |
| Cos phi | 0.90 |
| Capacitor size - run | 50 µF/240 V |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Built-in motor protection | CONTACT |
| Thermal protec | internal |
| Relay | with relay |
| Terminal box position | 1.30H |
| Net weight | 49.2 lb |
| Gross weight | 57.1 lb |
| Shipping volume | 2.12 ft³ |
