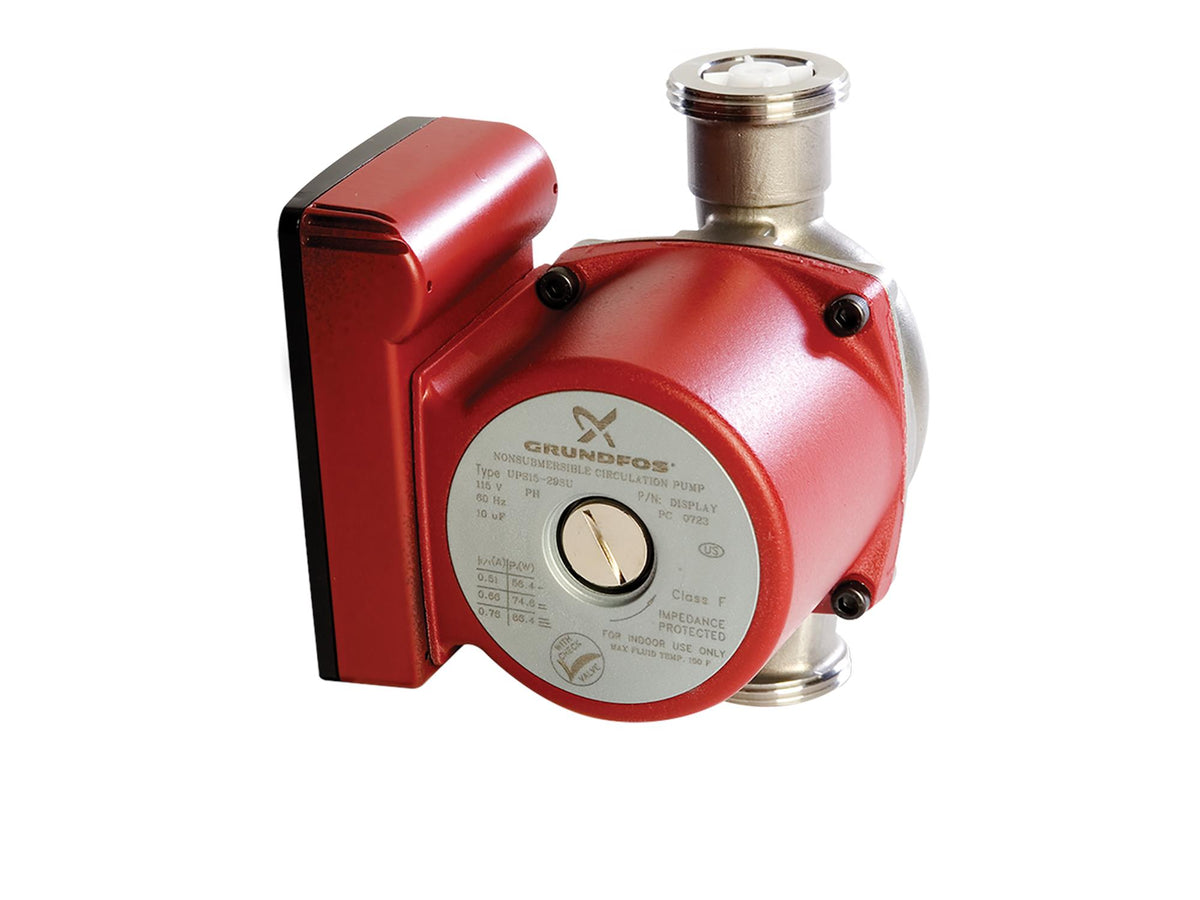

Grundfos 59896772, UPS15-35SFC Circulator Pump 115V 60 Hz

Roll over image to zoom in Click on image to zoom

Discontinued Direct Replacement Available

Grundfos 59896772, UPS15-35SFC Circulator Pump 115V 60 Hz

SKU:: GNC01-0200
MPN:: 59896772
Model:: UPS15-35SFC

Grundfos 59896773, UPS15-55SFC 1/12hp 115V Stainless Steel Pump

$596.95

In stock (15 units)

View Replacement

This circulator pump is a three-speed model with a corrosion-free stainless-steel housing, suitable for domestic hot-water recirculation and underfloor heating systems.

Manufacturer	Grundfos
Part Number	59896772
Model	UPS15-35SFC
Speed Number	3
Rated flow	8.85 US gpm
Max flow	21.6 US gpm
Rated head	5.745 ft
Maximum head	12.14 ft
Approvals	UL, CSA
Pump with built-in isolating and non-return valves	Yes
Pump housing	Stainless steel, AISI 304, EN 1.4308
Impeller	Composite, PES+30% GF
Maximum ambient temperature	104 °F
Ambient max at 176°F liquid	176 °F
Maximum operating pressure	145.04 psi
Type of connection	2-BOLT FLANGE, S.S. Flange
Pipe connection	2-BOLT FLANGE
Pressure rating for connection	PN 10
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 165.2 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Power input in speed 1	0.0818 HP
Power input in speed 2	84 W
Max. power input	110 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Current in speed 1	0.55 A
Current in speed 2	0.75 A
Current in speed 3	0.95 A
Capacitor size - run	10 µF/180 V
Number of poles	2
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	Impedance protected
Terminal box position	9H
Net weight	5.45 lb
Gross weight	5.97 lb

Dielectric Isolation Valve (Installation and operating instructions)

Maintenance-free, Timer and Thermostatic, Control Accessories (Installation and operating instructions)

GRUNDFOS STAINLESS UP(S)

UP Series, Circulator pumps (Data booklet)

UP Series circulators® (Installation and operating instructions)

UP(S) 15 circulators, With power cable and optional digital timer (Installation and operating instructions)

UPS, 3-SPEED TECHNOLOGY (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)

COMFORT 10-16 (Installation and operating instructions)
