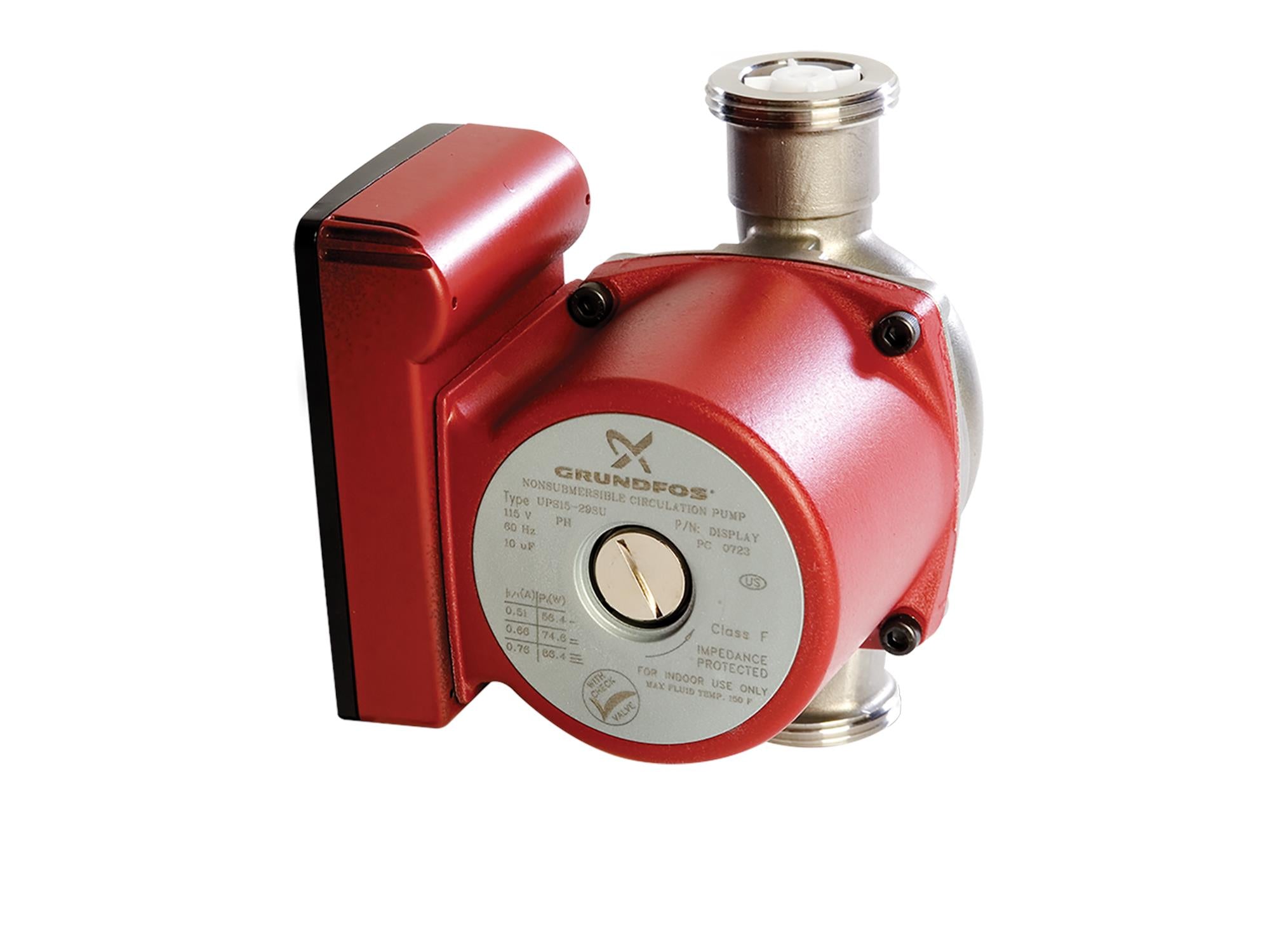

Grundfos 59896772, UPS15-35SFC Circulator Pump 115V 60 Hz

Roll over image to zoom in Click on image to zoom

Grundfos 59896772, UPS15-35SFC Circulator Pump 115V 60 Hz

Name: Grundfos 59896772, UPS15-35SFC Circulator Pump 115V 60 Hz
Brand: Grundfos
SKU: GNC01-0200
Price: 511.95 USD
Availability: OutOfStock

SKU: GNC01-0200 Part Number: 59896772 Model: UPS15-35SFC

Price:

$511.95 $562.00

Save 9% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This circulator pump is a three-speed model with a corrosion-free stainless-steel housing, suitable for domestic hot-water recirculation and underfloor heating systems.

Manufacturer	Grundfos
Part Number	59896772
Model	UPS15-35SFC
Speed Number	3
Rated flow	8.85 US gpm
Max flow	21.6 US gpm
Rated head	5.745 ft
Maximum head	12.14 ft
Approvals	UL, CSA
Pump with built-in isolating and non-return valves	Yes
Pump housing	Stainless steel, AISI 304, EN 1.4308
Impeller	Composite, PES+30% GF
Maximum ambient temperature	104 °F
Ambient max at 176°F liquid	176 °F
Maximum operating pressure	145.04 psi
Type of connection	2-BOLT FLANGE, S.S. Flange
Pipe connection	2-BOLT FLANGE
Pressure rating for connection	PN 10
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 165.2 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Power input in speed 1	0.0818 HP
Power input in speed 2	84 W
Max. power input	110 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Current in speed 1	0.55 A
Current in speed 2	0.75 A
Current in speed 3	0.95 A
Capacitor size - run	10 µF/180 V
Number of poles	2
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	Impedance protected
Terminal box position	9H
Net weight	5.45 lb
Gross weight	5.97 lb

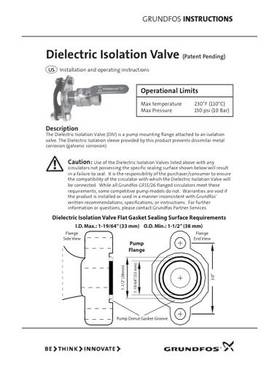

Dielectric Isolation Valve (Installation and operating instructions)

Maintenance-free, Timer and Thermostatic, Control Accessories (Installation and operating instructions)

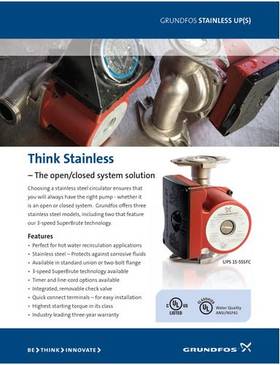

GRUNDFOS STAINLESS UP(S)

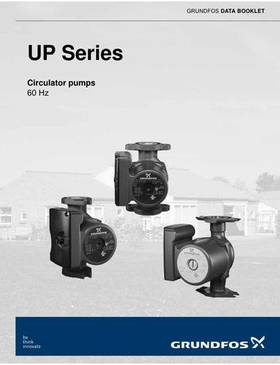

UP Series, Circulator pumps (Data booklet)

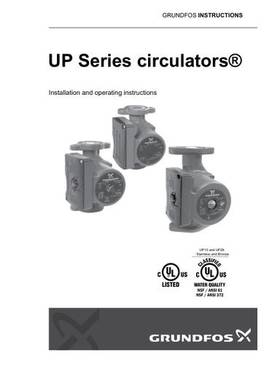

UP Series circulators® (Installation and operating instructions)

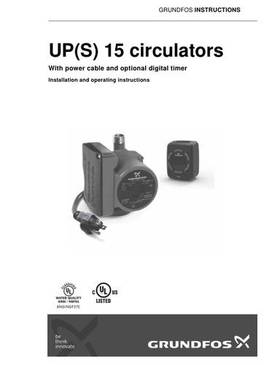

UP(S) 15 circulators, With power cable and optional digital timer (Installation and operating instructions)

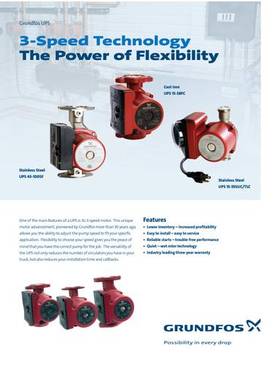

UPS, 3-SPEED TECHNOLOGY (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)

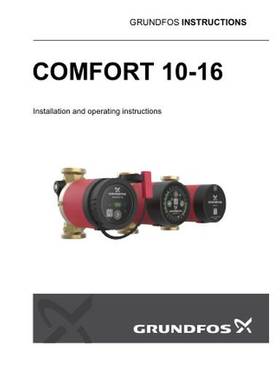

COMFORT 10-16 (Installation and operating instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
