Grundfos UPS32-40/4, 1/3 HP, 230v, Booster Pump 96402694

Roll over image to zoom in Click on image to zoom

Discontinued Direct Replacement Available

Grundfos UPS32-40/4, 1/3 HP, 230v, Booster Pump 96402694

SKU:: GNC01-0260
MPN:: 96402694
Model:: UPS32-40/4

Grundfos 96402708, UPS32-80 Circulator Pump 115V 1.25 Inch Versaflo

$1,945.00

In stock (3 units)

View Replacement

UPS32-40/4 wet-rotor, cast iron circulator pump with a 1/3 HP, 230v, single phase, 3-speed motor for hydronic heating and cooling in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UPS Series pumps feature a 3-speed motor, which allow the user to adjust the pump speed to fit their specific application. Ceramic bearings ensure years of quiet, trouble-free operation and quick connect terminals provide easy installation.

Manufacturer	Grundfos
Part Number	96402694
Model	UPS32-40/4
Speed Number	3
Maximum head	13.12 ft
Approvals	CCSAUS
Pump housing	Cast iron, EN 1561 EN-GJL-250, ASTM 35 B - 40 B
Impeller	Stainless steel, EN 1.4301, AISI 304
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	DIN
Pipe connection	GF 15/26
Pressure rating for connection	PN 10
Port-to-port length	11 in
Connect code	F
Pumped liquid	Water
Liquid temperature range	14 .. 248 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Power input in speed 1	0.114 HP
Power input in speed 2	100 W
Max. power input	120 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Current in speed 1	0.95 A
Current in speed 2	1.04 A
Current in speed 3	1.08 A
Cos phi in speed 1	0.78
Cos phi in speed 2	0.84
Cos phi	0.97
Capacitor size - run	16 µF/400 V
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	internal
R a	17.8 - 23.2 ohm
R s1	3.95 - 5.2 ohm
R s2	9.4 - 12.4 ohm
Relay	with relay
Terminal box position	1.30H
Net weight	35.9 lb
Gross weight	43.4 lb
Shipping volume	2.08 ft³

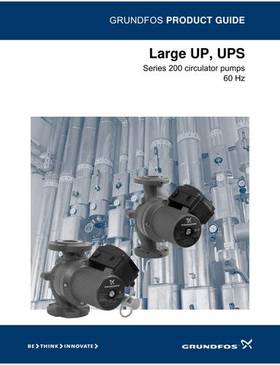

Large UPS, UPS

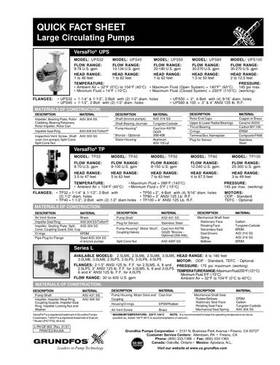

QUICK FACT SHEET, Large Circulating Pumps (Data Sheet)

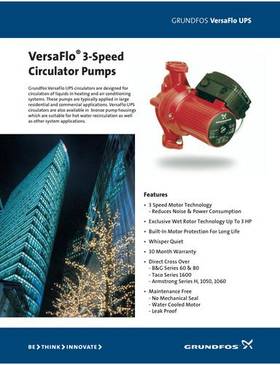

VersaFlo® 3-Speed Circulator Pumps

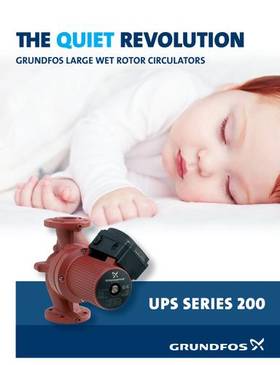

THE QUIET REVOLUTION, GRUNDFOS LARGE WET ROTOR CIRCULATORS, UPS Series 200 (Product brochure)

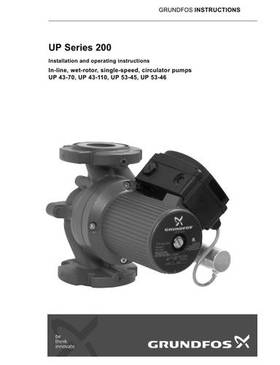

UP Series 200 (I & O instructions)

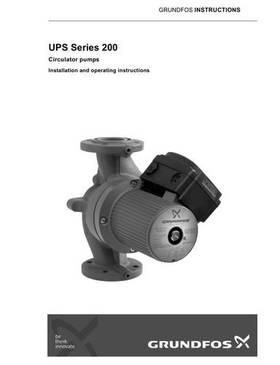

UPS Series 200 (I & O instructions)

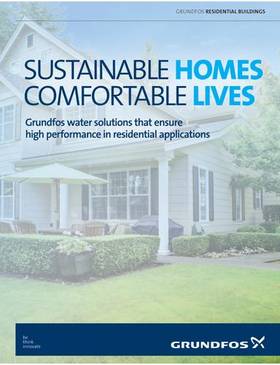

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)
