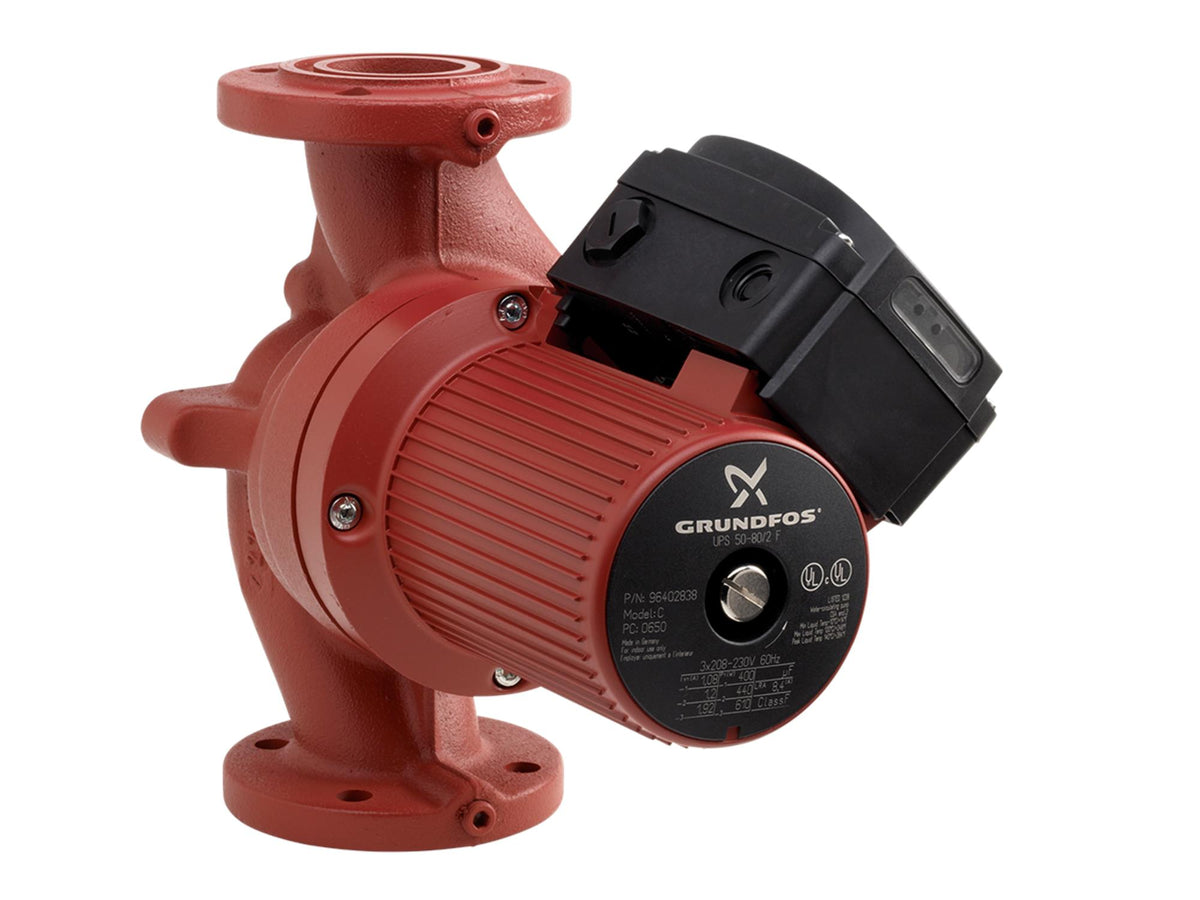

Grundfos 96402788, 230V UPS40-160 Circulator Pump for Hot Water

SKU: GNC01-0505 Part Number: 96402788 Model: UPS40B-160/2

Price:
Sale price$4,219.95 Regular price$7,479.00

Save 44% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This circulator pump is a three-speed model with a corrosion-resistant bronze housing, designed for hot-water recirculation. It operates on 230V and provides reliable, maintenance-free performance in domestic hot water systems.

Specifications

Manufacturer Grundfos
Part Number 96402788
Model UPS40B-160/2
Speed Number 3
Maximum head 52.5 ft
Approvals CCSAUS,IAPMO
Pump housing Bronze, CuSn10
Impeller Stainless steel, EN 1.4301, AISI 304
Range of ambient temperature 32 .. 104 °F
Maximum operating pressure 145.04 psi
Type of connection DIN
Pipe connection GF 40/43
Pressure rating for connection PN 10
Port-to-port length 11 1/2 in
Connect code F
Pumped liquid Water
Liquid temperature range 14 .. 248 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³
Power input in speed 1 0.9253 HP
Power input in speed 2 760 W
Max. power input 890 W
Main frequency 60 Hz
Rated voltage 1 x 230 V
Current in speed 1 3.45 A
Current in speed 2 3.75 A
Current in speed 3 4.2 A
Cos phi in speed 1 0.86
Cos phi in speed 2 0.89
Cos phi 0.92
Capacitor size - run 20 µF/400 V
Enclosure class (IEC 34-5) X4D
Insulation class (IEC 85) H
Built-in motor protection CONTACT
Thermal protec internal
R a 5.6 - 7.35 ohm
R s1 2.02 - 2.66 ohm
R s2 3.75 - 4.95 ohm
Relay with relay
Terminal box position 1.30H
Net weight 47.6 lb
Gross weight 59.8 lb
Shipping volume 3.46 ft³
Country of origin RS
Custom tariff no. 8413.70.2005
