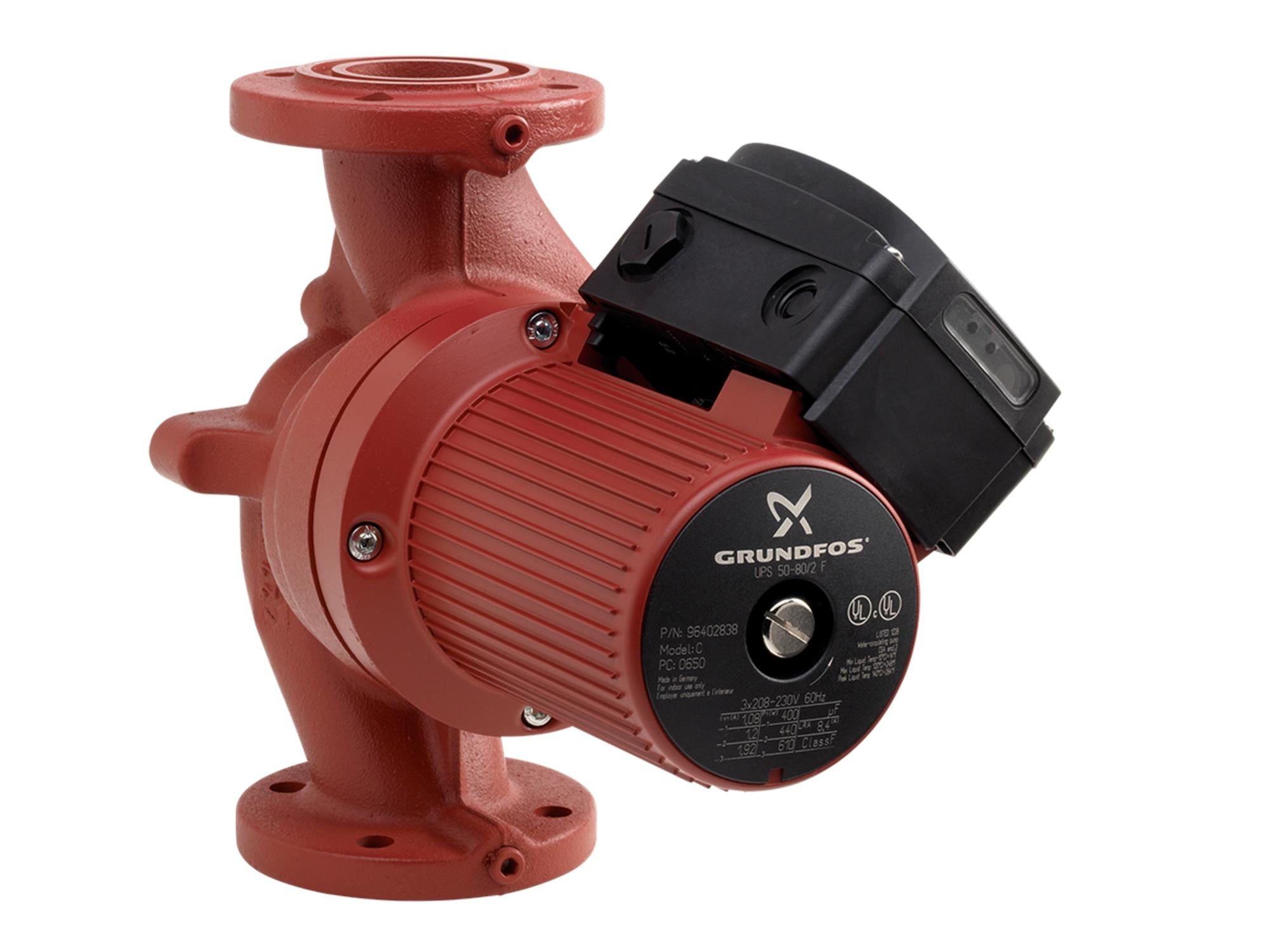

Grundfos 96402798, UPS40-240 Circulator Pump 208-230V 3Ph

SKU: GNC01-0525 Part Number: 96402798 Model: UPS40-240/2

Price:
Sale price$3,246.95 Regular price$5,522.00

Save 41% Call 844-448-0880 for large volume pricing

Stock:
In stock (1 unit), ready to be shipped
 More payment options

Description

This circulator pump is a three-speed model designed for heating and air-conditioning systems, suitable for central and district heating. It operates on 208-230V with a 1 1/2" connection, providing reliable and maintenance-free performance in commercial air conditioning, heating, and hot water recirculation applications.

Specifications

Manufacturer Grundfos
Part Number 96402798
Model UPS40-240/2
Speed Number 3
Maximum head 78.74 ft
Approvals CCSAUS
Pump housing Cast iron, EN 1561 EN-GJL-250, ASTM 35 B - 40 B
Impeller Stainless steel, EN 1.4301, AISI 304
Range of ambient temperature 32 .. 104 °F
Maximum operating pressure 145.04 psi
Type of connection DIN
Pipe connection GF 40/43
Pressure rating for connection PN 10
Port-to-port length 13 1/2 in
Connect code F
Pumped liquid Water
Liquid temperature range 14 .. 248 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³
Power input in speed 1 1.3276 HP
Power input in speed 2 1100 W
Max. power input 1440 W
Main frequency 60 Hz
Rated voltage 3 x 208-230 V
Current in speed 1 2.95 A
Current in speed 2 3.25 A
Current in speed 3 4.5 A
Cos phi in speed 1 0.84
Cos phi in speed 2 0.85
Cos phi 0.8
Enclosure class (IEC 34-5) X4D
Insulation class (IEC 85) H
Built-in motor protection CONTACT
Thermal protec external
Winding resistance 11.0 - 14.4 ohm
Relay without relay
Terminal box position 1.30H
Net weight 47.2 lb
Gross weight 59.3 lb
Shipping volume 3.46 ft³
Country of origin RS
Custom tariff no. 8413.70.2005

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
