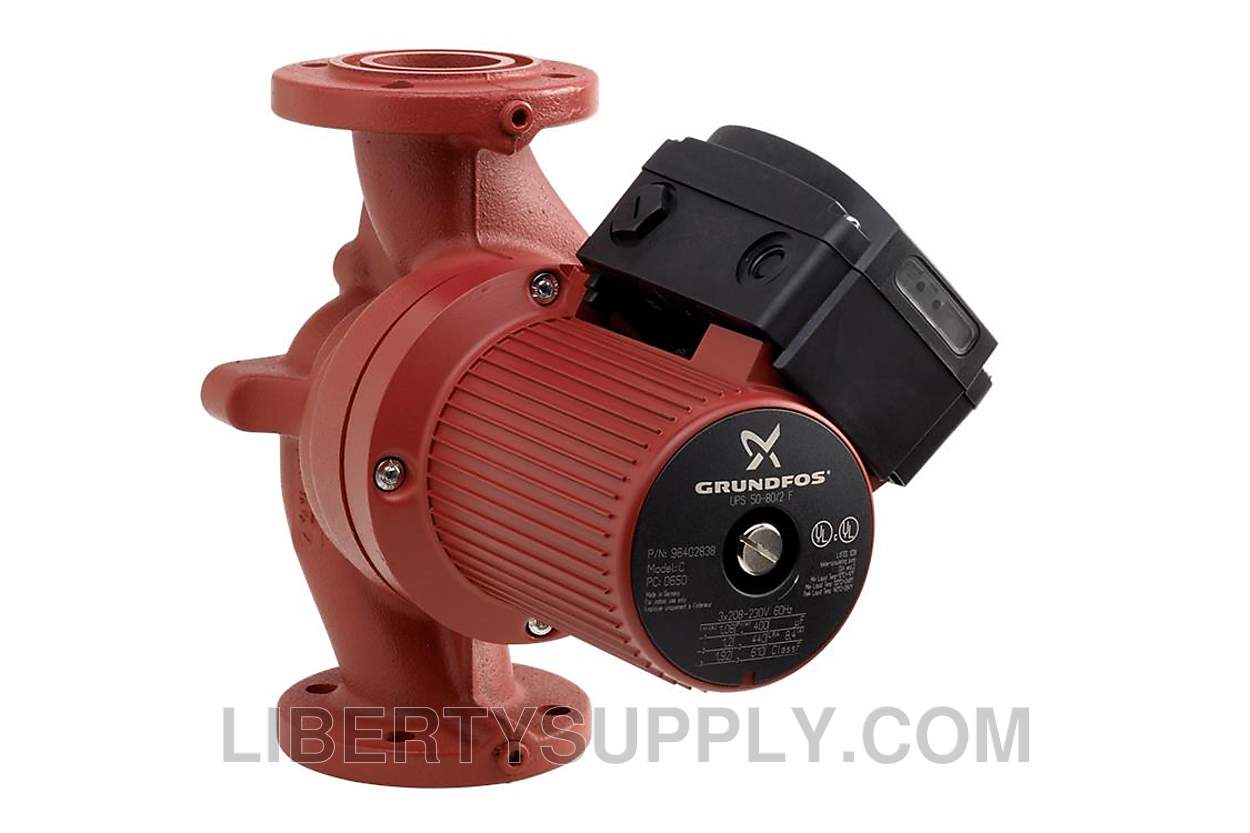

Grundfos UPS50B-40/4, 1/3 HP, 460v, Booster Pump 96402822

Roll over image to zoom in Click on image to zoom

Discontinued Direct Replacement Available

Grundfos UPS50B-40/4, 1/3 HP, 460v, Booster Pump 96402822

SKU:: GNC01-0585
MPN:: 96402822
Model:: UPS50B-40/4

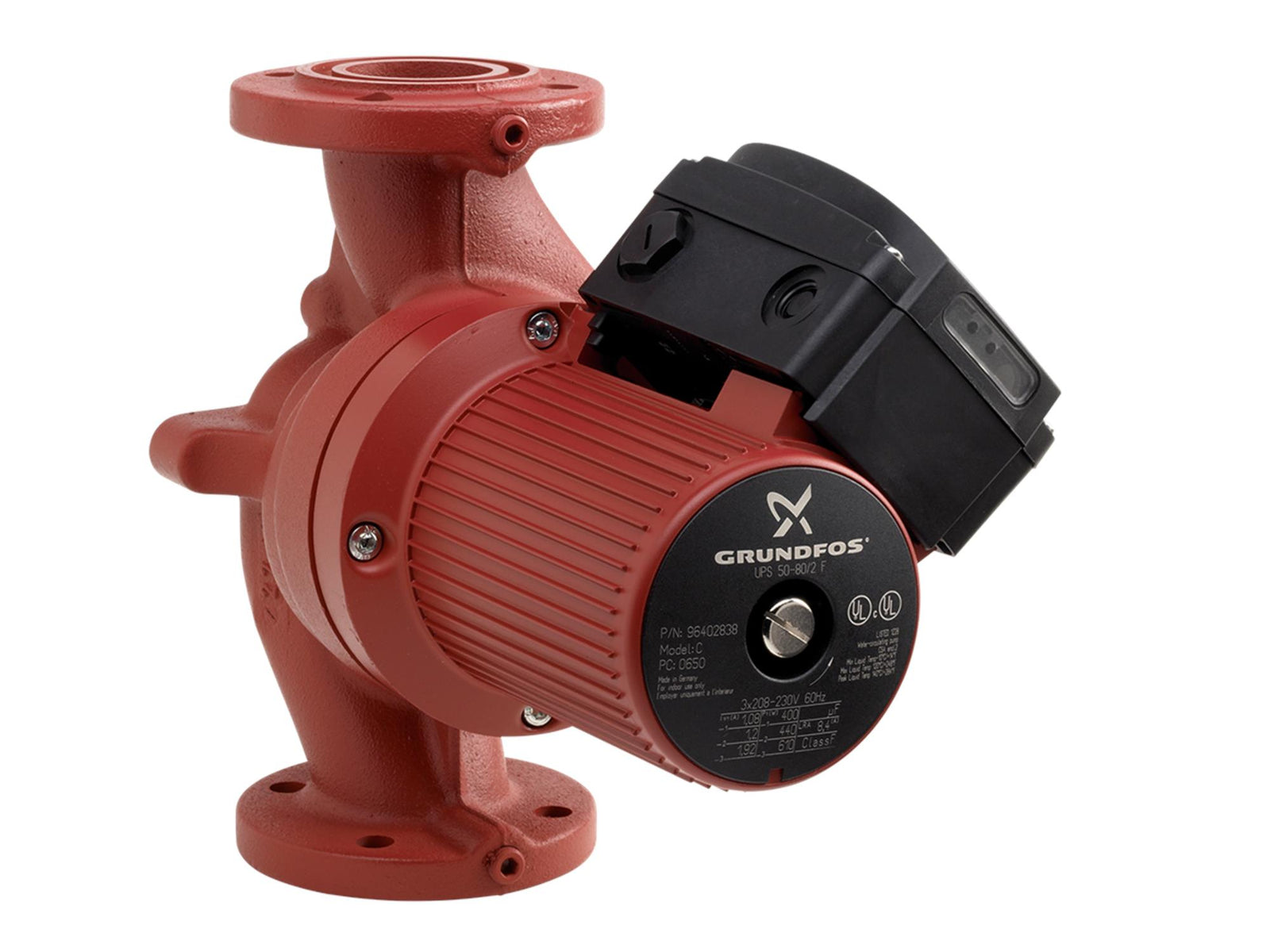

Grundfos 96402840, UPS 50-80/2F Circulator Pump 460V 3/4HP

$2,612.00

Call or Chat for availability

View Replacement

UPS50B-40/4 wet-rotor, bronze-body circulator pump with 2" flanged connection and a 1/3 HP, 460v, three phase, 3-speed motor for hydronic heating and cooling in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UPS Series pumps feature a 3-speed motor, which allow the user to adjust the pump speed to fit their specific application. Ceramic bearings ensure years of quiet, trouble-free operation and quick connect terminals provide easy installation.

Manufacturer	Grundfos
Part Number	96402822
Model	UPS50B-40/4
Speed Number	2
Maximum head	13.12 ft
Approvals	CCSAUS,IAPMO
Pump housing	Bronze, CuSn10
Impeller	Stainless steel, EN 1.4301, AISI 304
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	DIN
Pipe connection	GF 50
Pressure rating for connection	PN 10
Port-to-port length	14 in
Connect code	F
Pumped liquid	Water
Liquid temperature range	14 .. 248 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Power input in speed 2	170 W
Max. power input	270 W
Main frequency	60 Hz
Rated voltage	3 x 460 V
Current in speed 2	0.33 A
Current in speed 3	0.7 A
Cos phi in speed 2	0.65
Cos phi	0.48
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	external
Winding resistance	114.0 - 148.0 ohm
Relay	without relay
Terminal box position	1.30H
Net weight	53.6 lb
Gross weight	61.1 lb
Shipping volume	2.08 ft³
