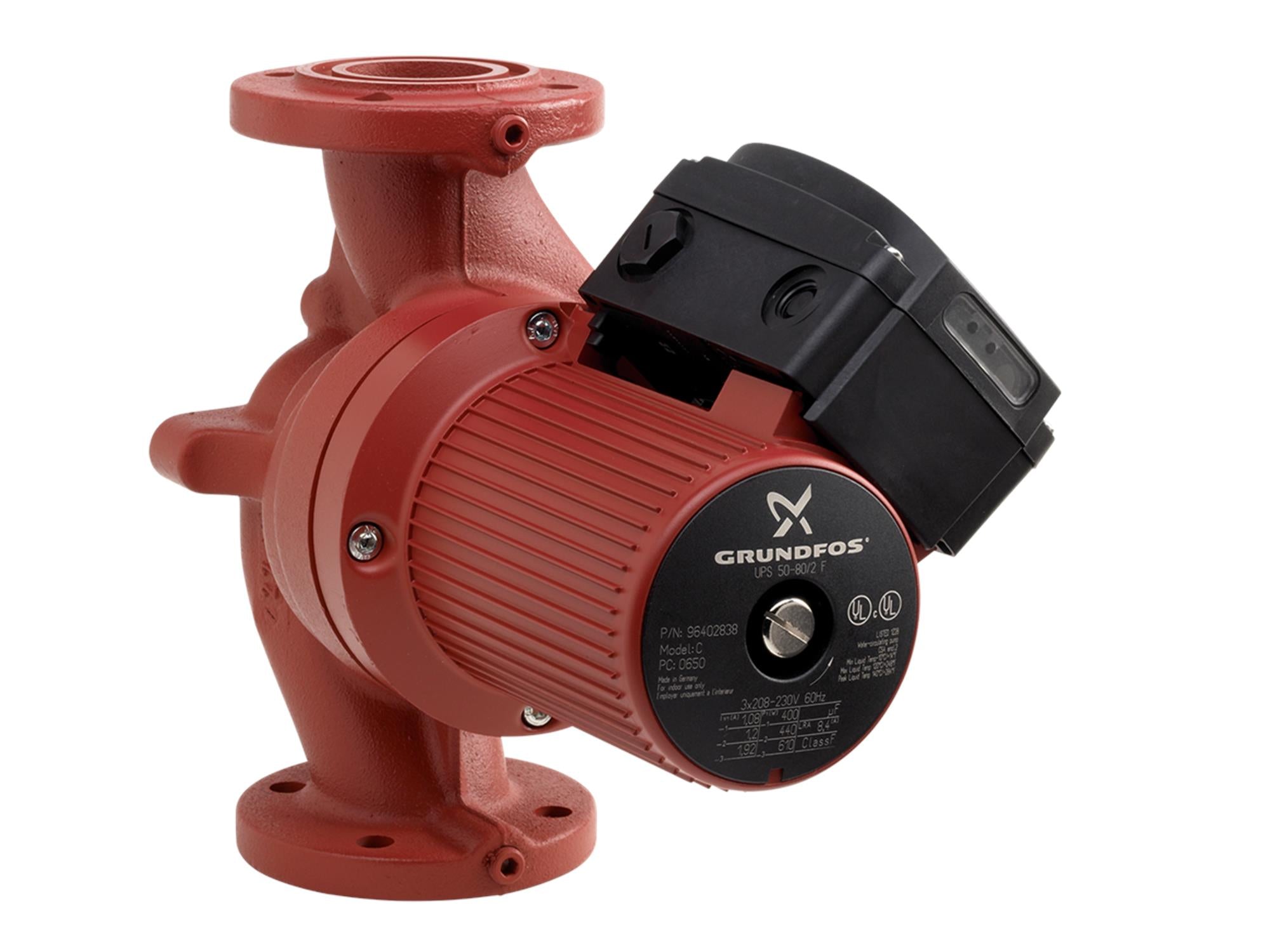

Grundfos 96402846, UPS 50-80/2 F B Circulator Pump 460V 3PH

SKU: GNC01-0665 Part Number: 96402846 Model: UPS50B-80/2

Price:
Sale price$3,438.95 Regular price$5,849.00

Save 41% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This circulator pump is a three-speed unit with a corrosion-resistant bronze housing, designed for hot-water recirculation. It operates on 460V in commercial applications such as air conditioning, heating, and hot water recirculation, providing reliable and maintenance-free performance.

Specifications

Manufacturer Grundfos
Part Number 96402846
Model UPS50B-80/2
Speed Number 2
Maximum head 26.25 ft
Approvals CCSAUS,IAPMO
Pump housing Bronze, CuSn10
Impeller Stainless steel, EN 1.4301, AISI 304
Range of ambient temperature 32 .. 104 °F
Maximum operating pressure 145.04 psi
Type of connection DIN
Pipe connection GF 50
Pressure rating for connection PN 10
Port-to-port length 11 1/2 in
Connect code F
Pumped liquid Water
Liquid temperature range 14 .. 248 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³
Power input in speed 2 440 W
Max. power input 610 W
Main frequency 60 Hz
Rated voltage 3 x 460 V
Current in speed 2 0.6 A
Current in speed 3 0.96 A
Cos phi in speed 2 0.92
Cos phi 0.8
Number of poles 2
Enclosure class (IEC 34-5) X4D
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Thermal protec external
Winding resistance 53.5 - 70.0 ohm
Relay without relay
Terminal box position 1.30H
Net weight 51.7 lb
Gross weight 56.7 lb
Shipping volume 2.08 ft³
Country of origin RS
Custom tariff no. 8413.70.2005

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
