Grundfos UPS80B-40/4, 1/2 HP, 208/230v, Booster Pump 96402899

Roll over image to zoom in Click on image to zoom

Grundfos UPS80B-40/4, 1/2 HP, 208/230v, Booster Pump 96402899

Name: Grundfos UPS80B-40/4, 1/2 HP, 208/230v, Booster Pump 96402899
Brand: Grundfos
SKU: GNC01-0800
Price: 3771.95 USD
Availability: OutOfStock

SKU: GNC01-0800 Part Number: 96402899 Model: UPS80B-40/4

Price:

$3,771.95

Save 0 Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

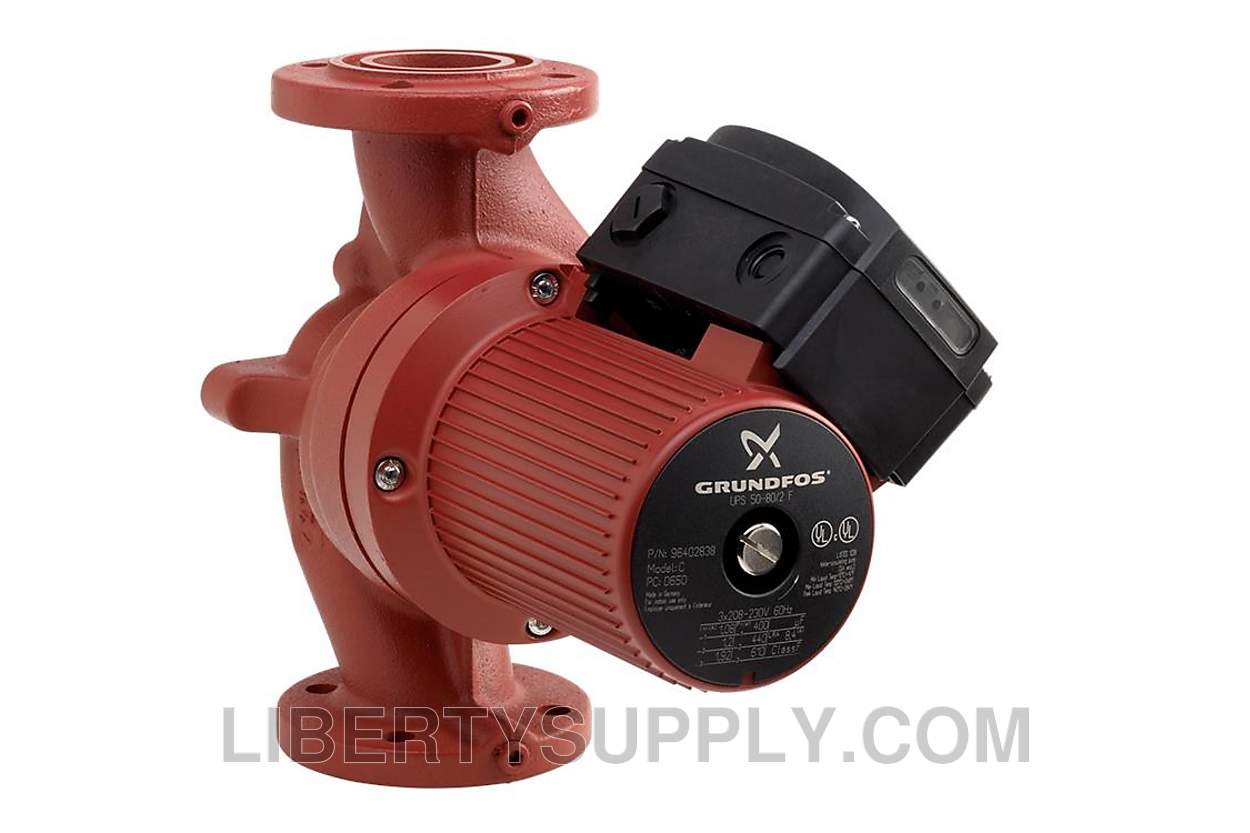

UPS80B-40/4 wet-rotor, bronze-body circulator pump with 3" flanged connection and a 1/2 HP, 208-230v, three phase, 3-speed motor for hydronic heating and cooling in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UPS Series pumps feature a 3-speed motor, which allow the user to adjust the pump speed to fit their specific application. Ceramic bearings ensure years of quiet, trouble-free operation and quick connect terminals provide easy installation.

Manufacturer	Grundfos
Part Number	96402899
Model	UPS80B-40/4
Speed Number	3
Maximum head	13.12 ft
Approvals	CCSAUS,IAPMO
Pump housing	Bronze, CuSn10, ASTM 35 B - 40 B
Impeller	Stainless steel, EN 1.4301, AISI 304
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	DIN
Pipe connection	GF 80
Pressure rating for connection	PN 10
Port-to-port length	19 in
Connect code	F
Pumped liquid	Water
Liquid temperature range	14 .. 248 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Power input in speed 1	0.3084 HP
Power input in speed 2	260 W
Max. power input	380 W
Main frequency	60 Hz
Rated voltage	3 x 208-230 V
Current in speed 1	0.77 A
Current in speed 2	0.87 A
Current in speed 3	1.62 A
Cos phi in speed 1	0.75
Cos phi in speed 2	0.75
Cos phi	0.59
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	H
Built-in motor protection	CONTACT
Thermal protec	external
Winding resistance	46.5 - 61.0 ohm
Relay	without relay
Terminal box position	1.30H
Net weight	85.3 lb
Gross weight	89.7 lb
Shipping volume	3.46 ft³

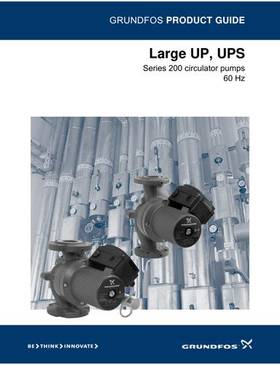

Large UPS, UPS

QUICK FACT SHEET, Large Circulating Pumps (Data Sheet)

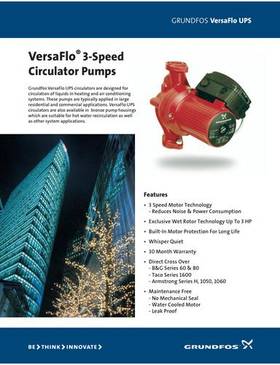

VersaFlo® 3-Speed Circulator Pumps

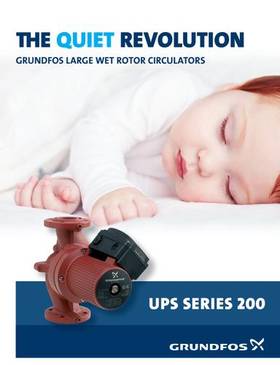

THE QUIET REVOLUTION, GRUNDFOS LARGE WET ROTOR CIRCULATORS, UPS Series 200 (Product brochure)

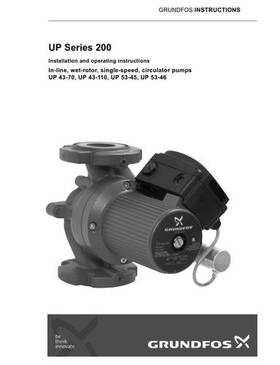

UP Series 200 (I & O instructions)

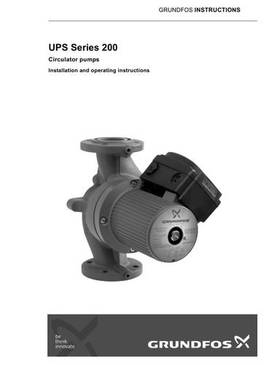

UPS Series 200 (I & O instructions)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)
