Description

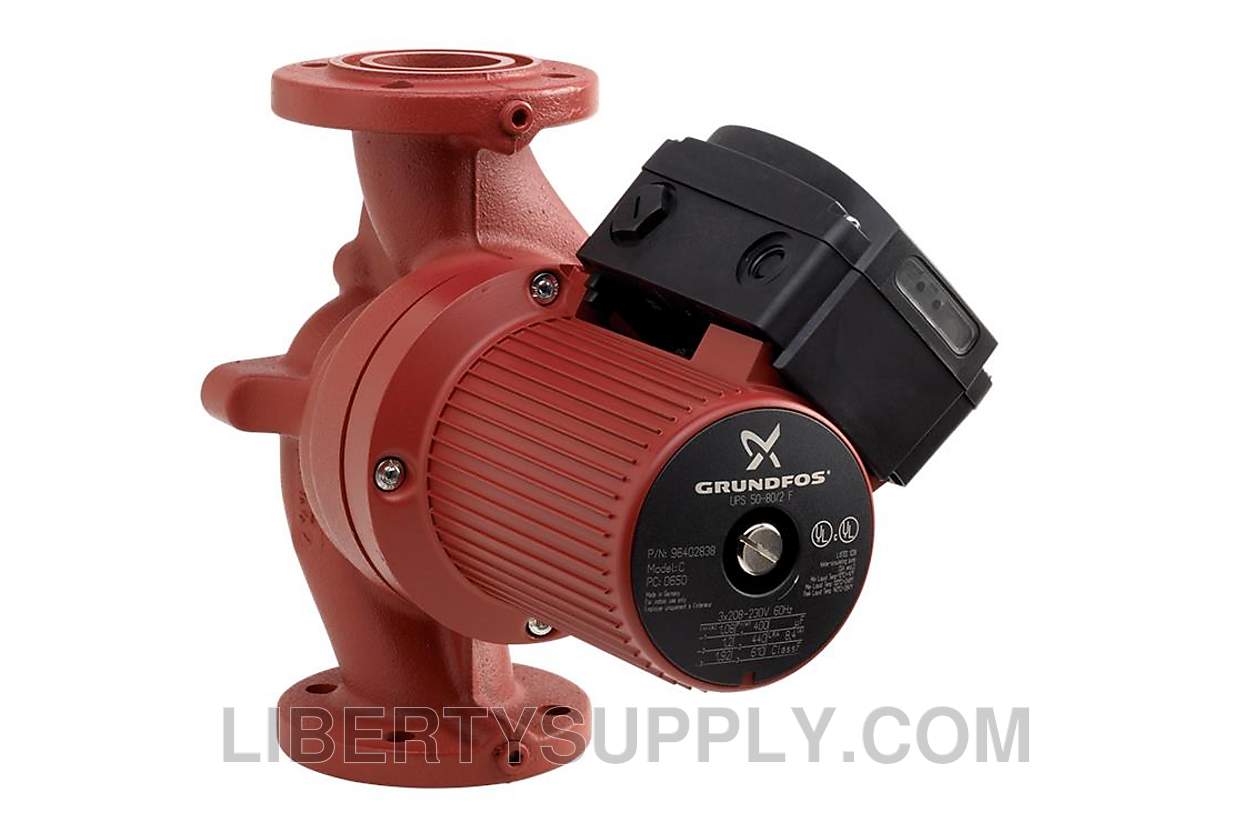

UPS80B-40/4 wet-rotor, bronze-body circulator pump with 3" flanged connection and a 1/2 HP, 208-230v, three phase, 3-speed motor for hydronic heating and cooling in closed loop systems. Flange gaskets are included, but flanges are sold separately. Grundfos UPS Series pumps feature a 3-speed motor, which allow the user to adjust the pump speed to fit their specific application. Ceramic bearings ensure years of quiet, trouble-free operation and quick connect terminals provide easy installation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96402913 |
| Model | UPS80B-80/4 |
| Speed Number | 3 |
| Maximum head | 26.25 ft |
| Approvals | CCSAUS,IAPMO |
| Pump housing | Bronze, CuSn10 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 145.04 psi |
| Type of connection | DIN |
| Pipe connection | GF 80 |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 19 in |
| Connect code | F |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 248 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Power input in speed 1 | 0.7375 HP |
| Power input in speed 2 | 660 W |
| Max. power input | 1050 W |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230 V |
| Current in speed 1 | 1.72 A |
| Current in speed 2 | 2.08 A |
| Current in speed 3 | 3.6 A |
| Cos phi in speed 1 | 0.8 |
| Cos phi in speed 2 | 0.8 |
| Cos phi | 0.73 |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | H |
| Built-in motor protection | CONTACT |
| Thermal protec | external |
| Winding resistance | 23.6 - 31.0 ohm |
| Relay | without relay |
| Terminal box position | 1.30H |
| Net weight | 96 lb |
| Gross weight | 100 lb |
| Shipping volume | 3.46 ft³ |
