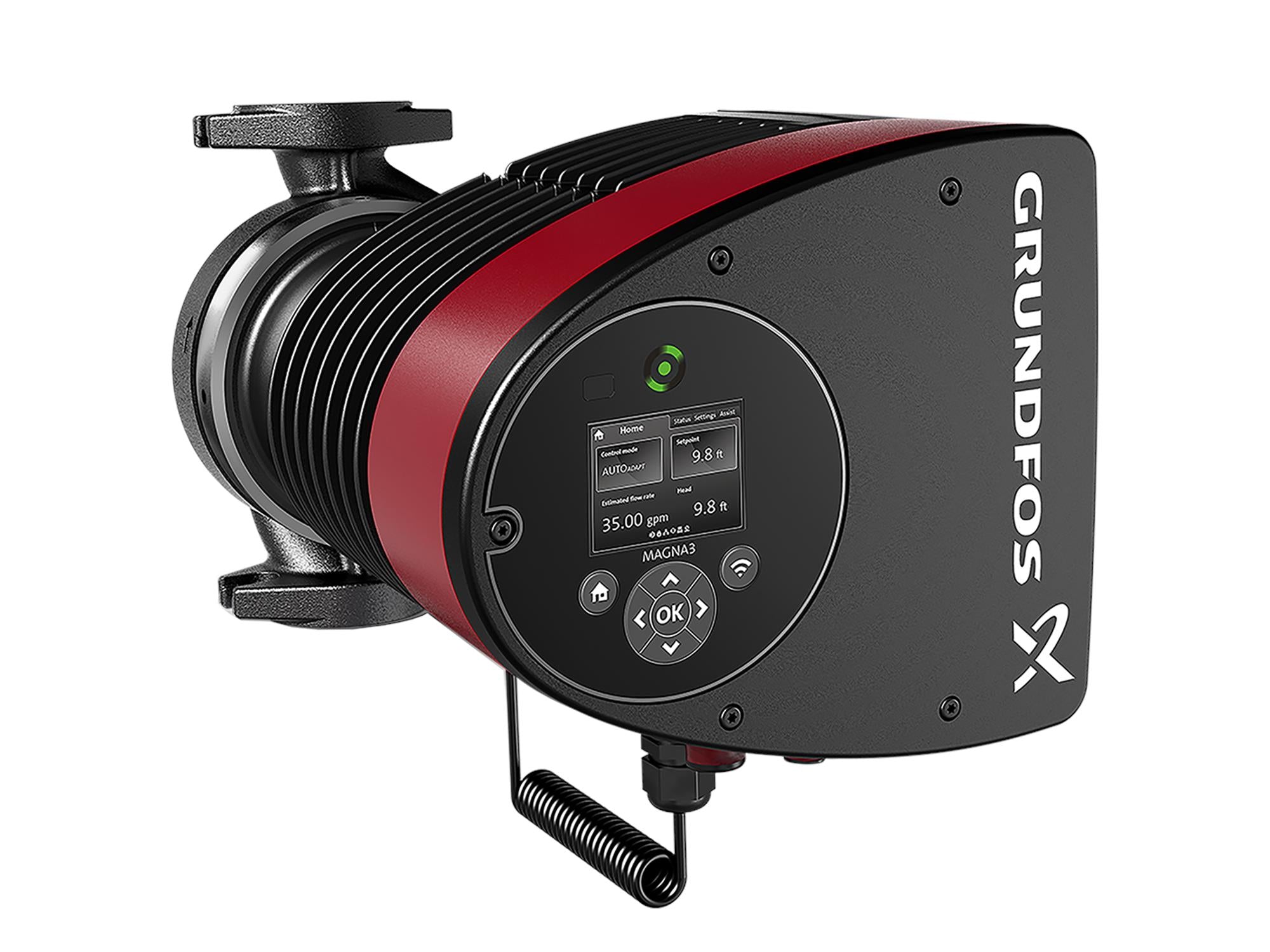

Grundfos 98126800, MAGNA3 40-80 GF Circulator Pump 115V CI 1/3hp

Roll over image to zoom in Click on image to zoom

Grundfos 98126800, MAGNA3 40-80 GF Circulator Pump 115V CI 1/3hp

SKU:: GNC01-0900
MPN:: 98126800
Model:: 40-80

Price:

$3,081.00 $4,578.00

Lower Price Available Add to cart for your price

Stock:

In stock (1 unit), ready to be shipped

Quantity:

This circulator pump, MAGNA3 40-80 GF, operates at 115V and is suitable for commercial heating and hot water recirculation applications. It supports fieldbus through optional CIM modules and connects directly with the Grundfos GO app via Bluetooth for enhanced system control and monitoring.

Manufacturer	Grundfos
Part Number	98126800
Model	40-80
Rated flow	46.7 US gpm
Rated head	17.72 ft
Maximum head	26.25 ft
TF class	110
Approvals	cETLus, Proposition 65
Pump housing	Cast iron, EN 1561 EN-GJL-250, ASTM A48-250B
Impeller	Composite
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	174.05 psi
Flange standard	GF
Pipe connection	GF15/26/40/43
Pressure rating for connection	PN 12
Port-to-port length	8 9/16 in
Pumped liquid	Water
Liquid temperature range	14 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Maximum power input - P1	285 W
P1 min.	16 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Minimum current consumption	0.3 A
Maximum current consumption	2.57 A
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Energy (EEI)	0.20
Net weight	32.7 lb
Gross weight	35.9 lb
Shipping volume	1.06 ft³
Country of origin	US
Custom tariff no.	8413.70.2005

MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N (Service Kit Catalogue)

MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)

MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)

MAGNA3, Terminal-connected versions / Display panel (Service kit instructions)

MAGNA3, Terminal-connected versions, Control box (Service kit instruction)

MAGNA 1 and MAGNA 3 (Addendum to Safety Instructions) (Installation and operating instructions)

MAGNA3, Terminal Connected (Quick Guide) - (US version)

MAGNA3 (Safety instructions)

MAGNA3 (Plug-connected versions / Pump head - clamp - O-ring) (Service kit instruction)

MAGNA3, Sensor cap, Plug and terminal connected versions (Service kit instruction)

MAGNA3 (Product brochure)

MAGNA3, model A, B and C (Installation and operating instructions)

MAGNA3, model D (Quick Guide)

MAGNA3, From Model D (Data booklet)

MAGNA3 (Models 32-60, 32-100) VALID FROM MODEL D (Quick Guide)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

CBS, GRUNDFOS INTELLIGENT PUMP SYSTEMS (Product brochure)

MAGNA3 - VALID FROM MODEL D (Quick Guide)

MAGNA3 (Quick Guide)

MAGNA3, Model D (I & O instructions)

GRUNDFOS DISTRIBUTED PUMPING, A modern approach to HVAC system design (Brochure)

GRUNDFOS DISTRIBUTED PUMPING, SUBSTANTIALLY REDUCE YOUR OPERATING COSTS (Brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)

MAGNA3, Model E (Data booklet)

MAGNA3 Model E, Medium and large (Quick Guide)

MAGNA3 Model E, Small (Quick Guide)

MAGNA 3, Model E (I & O instructions)

MAGNA3, Model E (Safety instructions)

MAGNA3, Model A,B,C (Data booklet)
