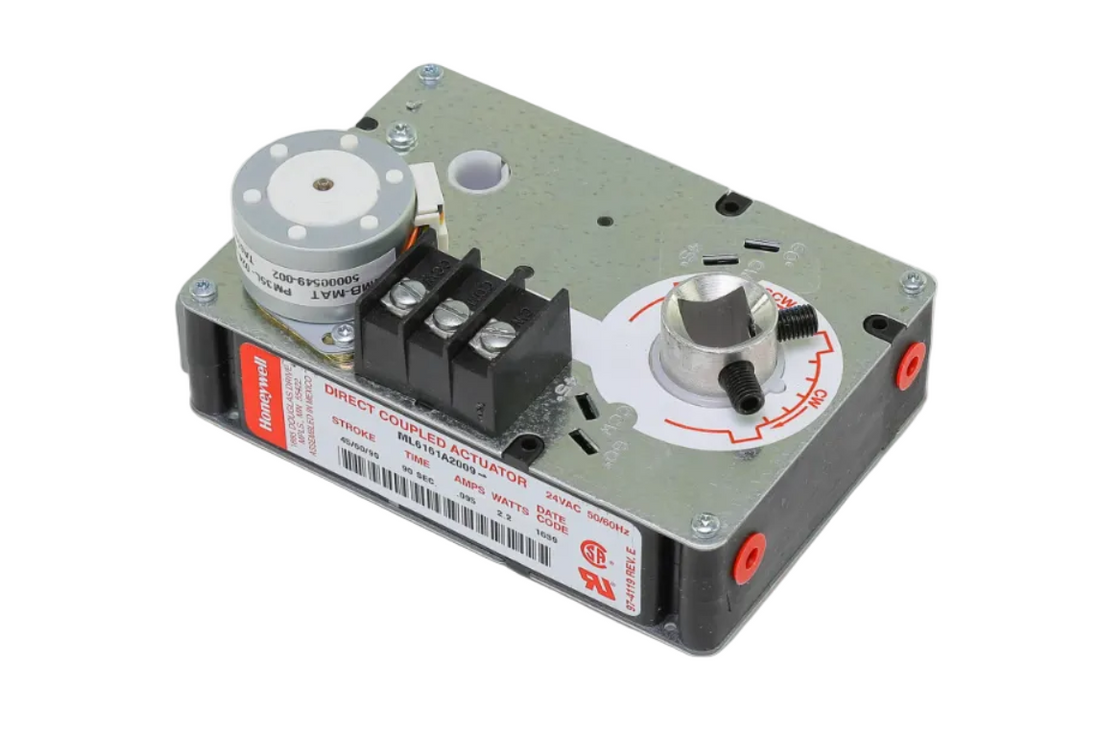

Direct coupled damper actuator, non-spring return, 35 lb-in torque, 24 Vac, floating, on/off, SPDT, floating control signal, 90-second nominal driving time, 3/8"-1/2" square or round shaft, 20-125° ambient temperature, 5-95% RH operating humidity range, potentiometer output.
ML7161/ML7174 Non-Spring Return Direct Coupled Actuators (DCA) provide floating or proportioning control for valves and dampers. The proportioning actuators accept a current or voltage signal from a controller to position the damper or valve at any chosen point between fully open and fully closed.
Features & Benefits:
- Selectable 45°, 60°, or 90° stroke in both clockwise (CW) or counterclockwise (CCW) directions
- 0° to 30° minimum position adjustment (CW or CCW direction) on all models
- Magnetic coupling eliminates the need for mechanical stops
- Two field-addable auxiliary switches
- Auxiliary feedback potentiometer field-addable on select models
- Manual declutch on all models
- Standard reverse/direct acting rotation switch on outside cover
- Superior A/C synchronous submotor for consistent timing and long life
Certifications:
- UL: File No. E4436; Guide No. XAPX2
- UL94-5V: Meets plenum requirements
- CSA (includes Auxiliary Switch)
- CE: ML7161E, ML7174E only
