Description

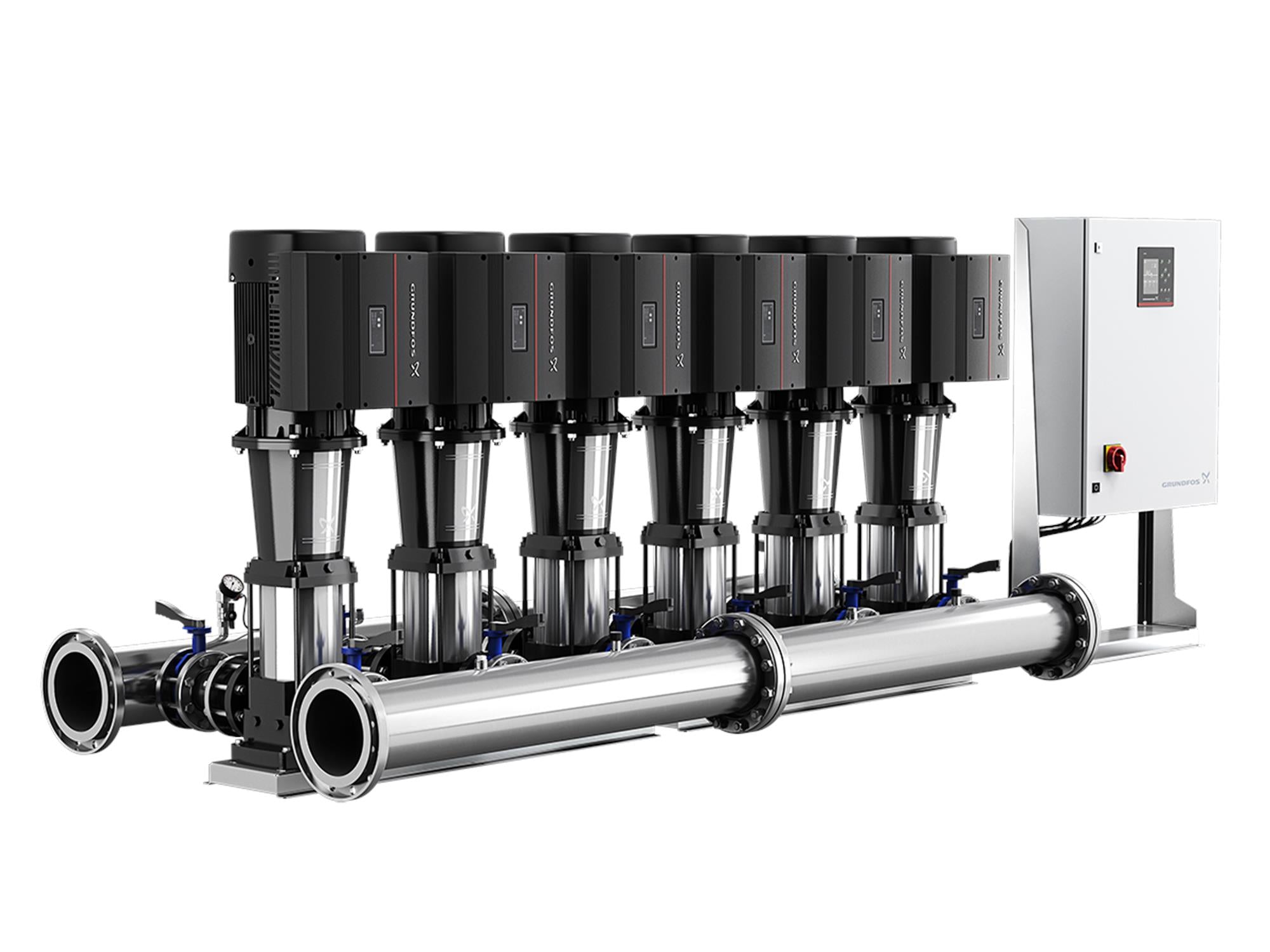

This pressure boosting system is advanced and energy efficient, designed for boosting clean water. It includes 2-6 parallel connected pumps with an integrated advanced controller and all necessary fittings, suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99689308 |
| Rated flow | 2030 US gpm |
| Max flow | 2690 US gpm |
| Rated head | 212.6 ft |
| Maximum head | 290.4 ft |
| Approvals | CULUS,PROP65 |
| Main pump name | CRE 64-2 |
| Non-return valve position | Outlet |
| Number of pumps | 6 |
| Manifold | Stainless steel, EN 1.4571, AISI 316 TI |
| Base | Stainless steel, EN 1.4301, ASTM 304 |
| Range of ambient temperature | 41 .. 104 °F |
| Maximum operating pressure | 232.06 psi |
| Manifold inlet | ANSI 12" |
| Manifold outlet | ANSI 12" |
| Pressure rating for connection | PN 16 |
| Earth connection | PE |
| System design | D |
| Pumped liquid | Water |
| Liquid temperature range | 41 .. 179.6 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power (P2) main pump | 24.8 HP |
| Rated power - P2 | 25 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 460-480 V |
| Rated current | 30.5 A |
| Rated current of system | 184 A |
| Enclosure class (IEC 34-5) | IP54 |
| Radio interference supression | EMC DIRECTIVE(2014/30/EU) |
| Number of phases of main pump | 3 |
| Control type | E |
| Dry running protection, mechanical | PRESSURE SENSOR 0-10 BAR |
| Controller | CU 352 |
| Diaphragm tank | No |
| Net weight | 4910 lb |
| Gross weight | 5550 lb |
| Shipping volume | 389 ft³ |
| Sales region | Namreg |
| Config. file no | 98272463 |
| Configuration file Control MPC | 98271950 |
| Configuration file Hydro MPC | 98272054 |
