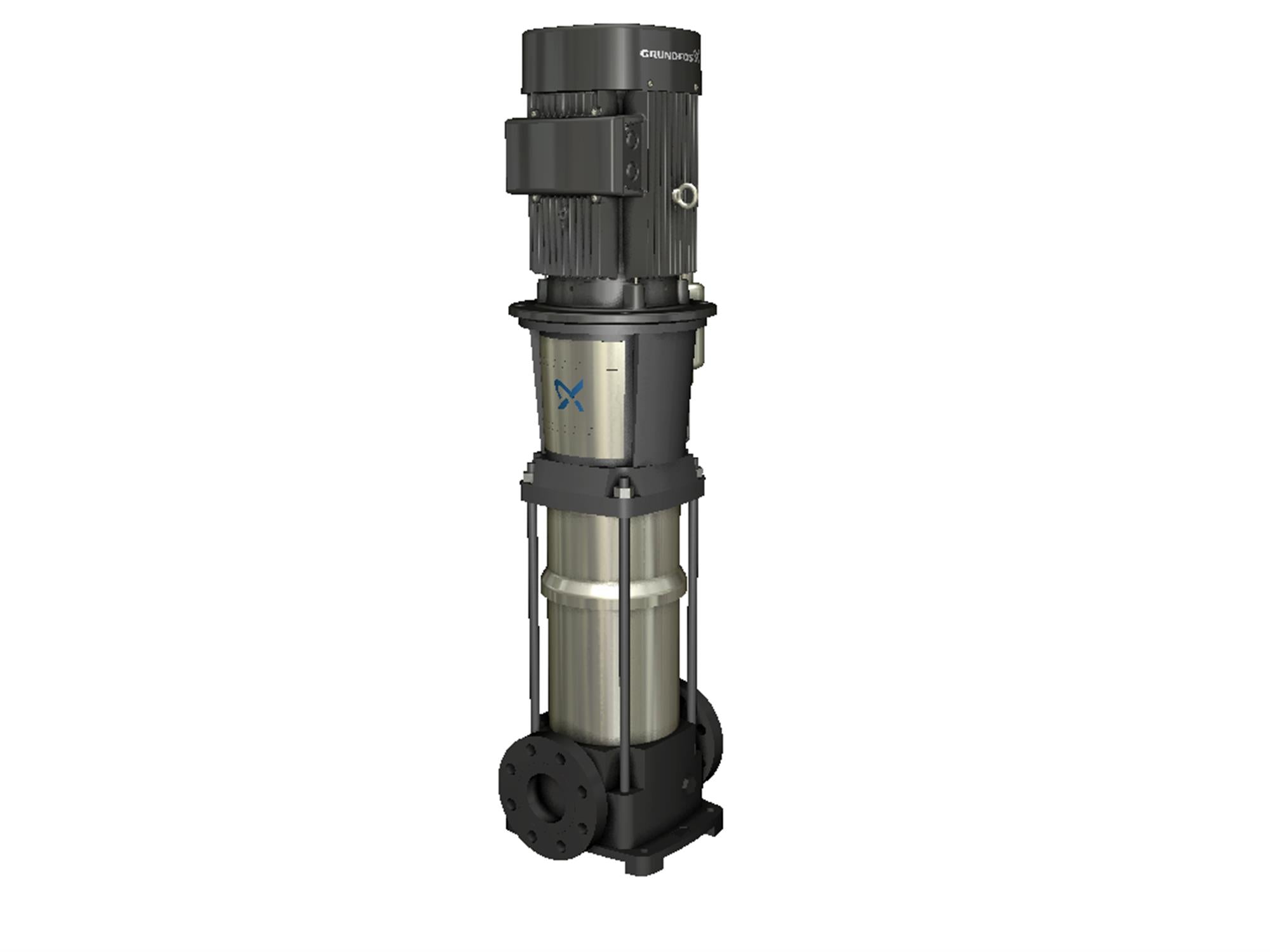

Grundfos 97936213, CR45-8-1 F-G-A-F-HQQE Vertical Multistage Pump

SKU: LSI02LVFFW Part Number: 97936213

Price:
Sale price$20,201.95 Regular price$31,565.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 97936213
Rated pump speed 3550 rpm
Rated flow 238 US gpm
Rated head 768.4 ft
Maximum head 946.2 ft
Actual impeller diameter 5.34 in
Stages 8
Impellers 8
Number of reduced-diameter impellers 1
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version F
Base Cast iron, EN 1563 EN-GJS-500-7, ASTM A536 80-55-06
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber F
Support bearing Graflon
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 356 °F, 362.59 psi / 14 °F
Type of connection ANSI
Size of suction port 3 inch
Size of outlet port 3 inch
Pressure rating for connection PN 40
Flange rating inlet 300 lb
Flange size for motor 324TC
Connect code G
Liquid temperature range 14 .. 356 °F
Motor standard NEMA
Frequency converter None
Pressure sensor N
DOE Pump Energy Index CL 0.89
Net weight 272 lb
Gross weight 290 lb
Shipping volume 17.5 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
