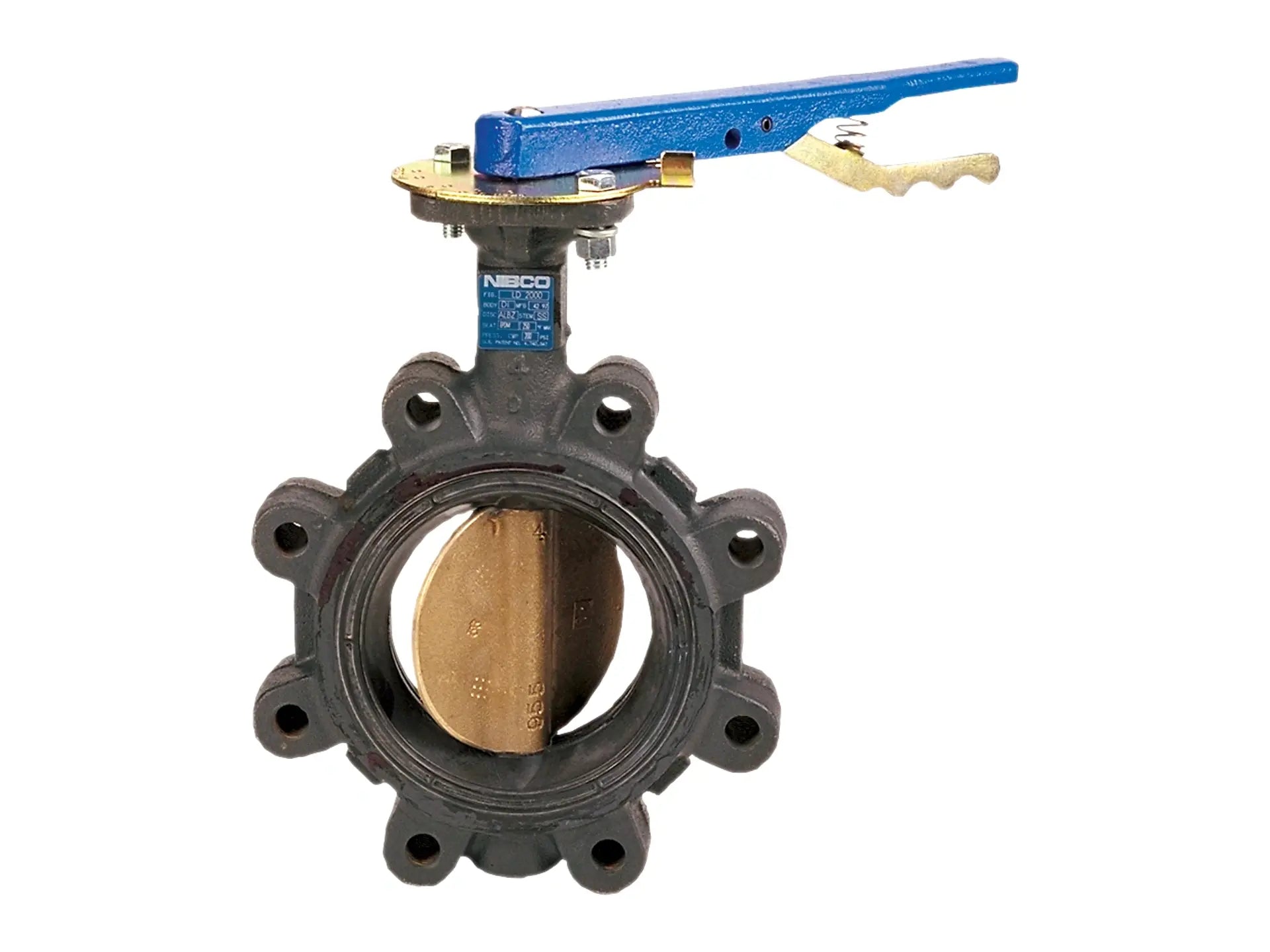

NIBCO LD-3000-3 5" Ductile Iron Butterfly Valve NLG710J

SKU: LSI0EPTJJ4 Part Number: NLG710J Model: LD-3000-3

Price:
Sale price$632.95 Regular price$1,194.00

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is assembled to order and additional lead-times may apply.

NIBCO lug type butterfly valve provides bubble-tight shutoff at 250 psi and bi-directional dead-end service without a downstream flange to 232 psi. The valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water. NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90°) open to close. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2". Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Valve pressure rating 250 psi
  • 225°F continuous and 250°F intermittent service
  • Lug style
  • EPDM molded-in seat liner
  • Aluminum bronze disc
  • Stainless steel stem with copper bushings
  • Geometric drive
  • Extended neck
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • U.S. Coast Guard Category A

Specifications

Manufacturer NIBCO
Part Number NLG710J
Model LD-3000-3
System Use Commercial Plumbing, HVAC, Industrial
Basic Material Ductile Iron
Nominal Pipe Size 5"
Type of Valve Butterfly
Valve End Connection Type Lug
End Connection Lug
Butterfly Operator Lever-Lock Handle
Turns Operations Quarter-Turn
Seat Seal Material EPDM Rubber
Valve Pressure Rating (psi) 250 psi rated pressure
Old Material Number LD300035
UPC 039923237057
Length 18.75"
Width 13.13"
Height 4.59"
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
