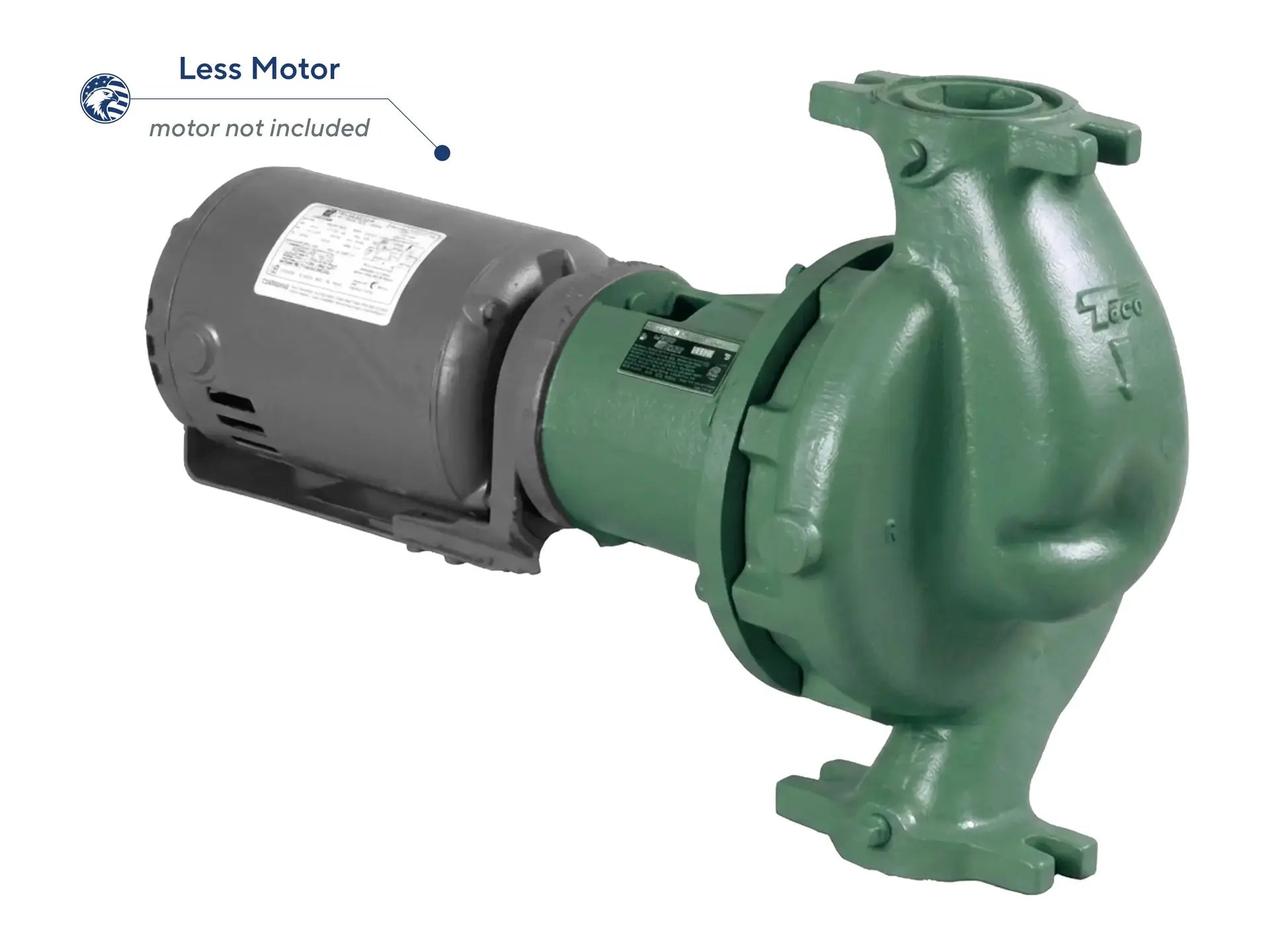

This in-line pump has a 2-inch suction and discharge configuration with a 7.9-inch nominal impeller diameter. The unit uses a cast iron casing and bracket combined with a stainless steel impeller and shaft. A bronze face plate accompanies the bracket assembly. The internal arrangement includes a replaceable bearing cartridge containing permanently sealed, grease-lubricated ball bearings, which isolates components from system fluid temperatures. The mechanical seal assembly consists of a silicon carbide stationary seat, a carbon rotating element, and Viton elastomers, rated for 250°F.
This unit accommodates 1 1/2 or 2 HP motors with a 56 frame size. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
