This Taco Shell & Tube Heat Exchanger, model E8208L, is a liquid to liquid heat exchanger designed for efficient heat transfer. With a nominal shell diameter of 8 inches and two tube passes, this heat exchanger is capable of handling a working pressure of 150 psi. The tube bundle length measures 48 inches, and the double wall cupro-nickel tubes have a smooth surface and a diameter of 3/4" OD. The tube plates are made of carbon steel on the head side with carbon steel shell side tube plates, while the separators are constructed from steel. This heat exchanger features threaded connections for easy installation and maintenance. Ideal for various industrial applications, this Taco Shell & Tube Heat Exchanger provides reliable and effective heat transfer capabilities.
Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.

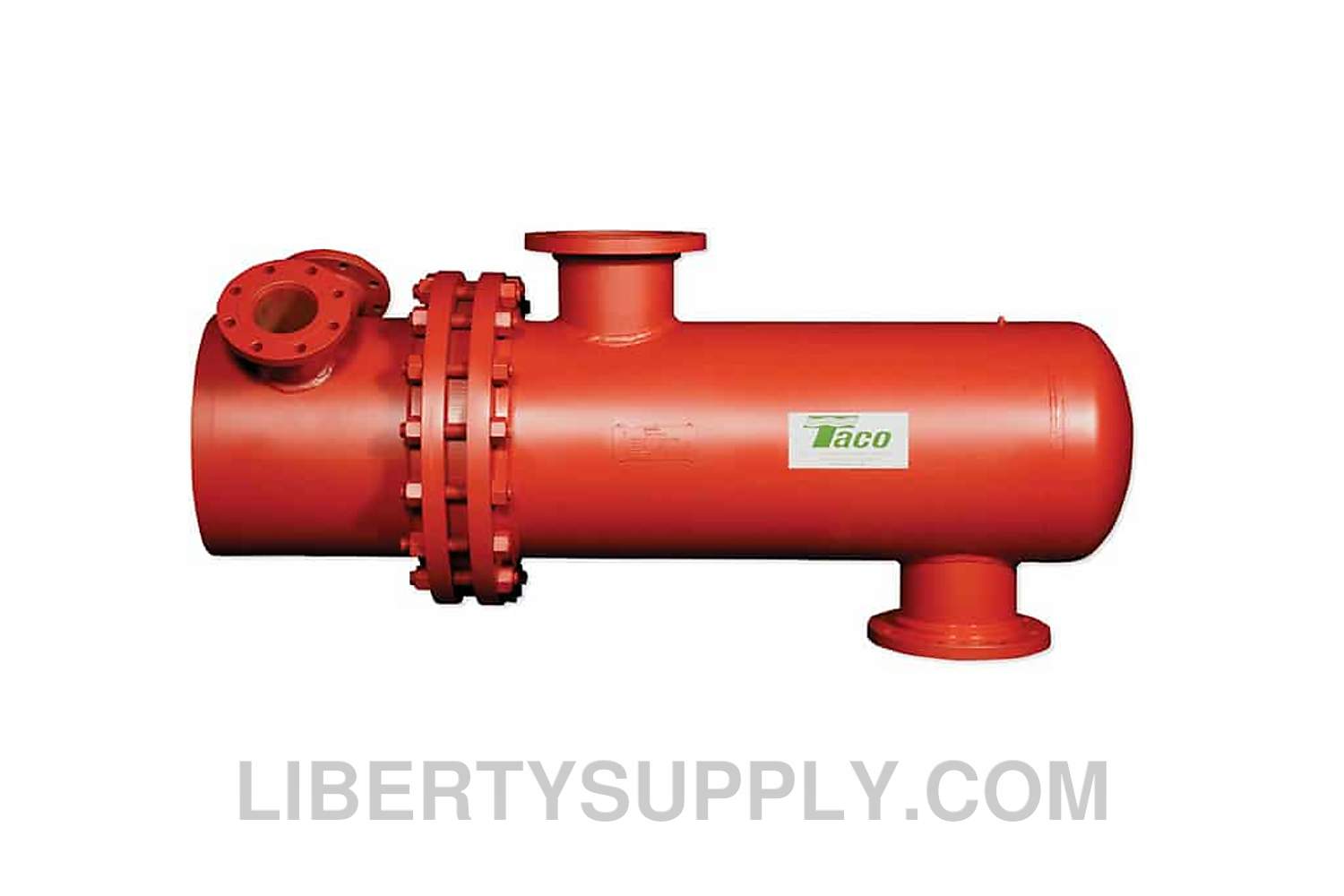

Note: product image is generic
