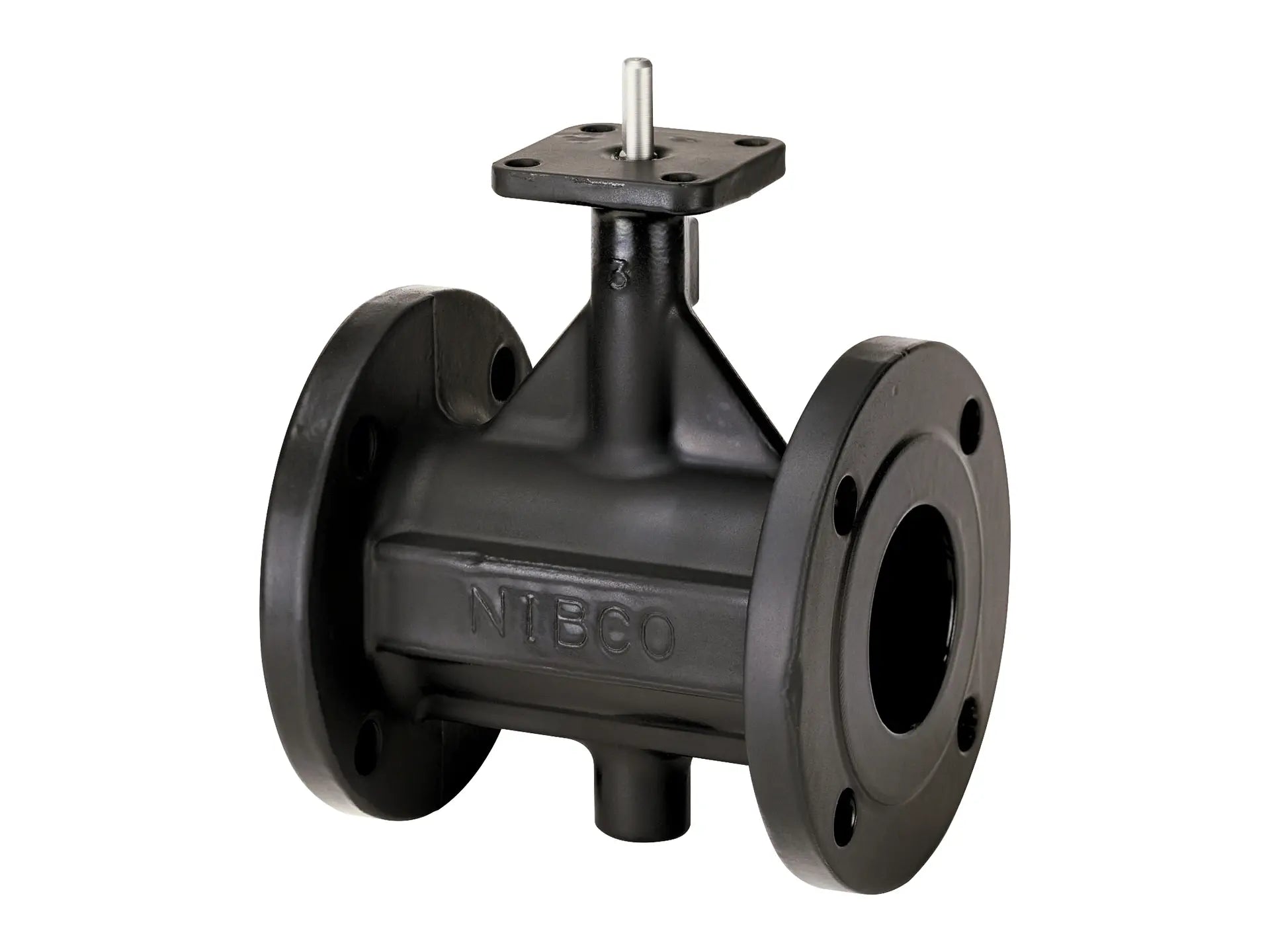

NIBCO FD-5775 3" Flgd Ductile Iron Butterfly Valve NLFR05F

SKU: LSI3551I9Z Part Number: NLFR05F Model: FD-5775-0

Price:
Sale price$870.95 Regular price$1,568.00

Save 44% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

This NIBCO flanged end raised faced type butterfly valve provides bubble-tight shutoff at 285 psi. The valve is an excellent substitute for gate valves installed in water (185&deg:F or lower) applications such as commercial and some light industrial process applications including HVAC, in addition to compressed air and vacuum services. This NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve features a Buna-N encapsulated ductile iron disc. With the internal stem/disc splined drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Valve pressure rating 285 psi
  • Max temperature rating 180°F
  • Flanged style
  • Buna-N encapsulated ductile iron disc
  • Stainless steel stem with metal bushings
  • Splined drive
  • Extended neck
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • Certified to NSF/ANSI/CAN 372-2020, Drinking Water System Components – Health Effects

Specifications

Manufacturer NIBCO
Part Number NLFR05F
Model FD-5775-0
Series FD-5775
Type of Valve Butterfly
Nominal Pipe Size 3"
End Connection Type F -- Flanged
Material Ductile Iron
Butterfly Operator Bare Stem/Bare Shaft
Turns Operations Quarter-Turn
Seat Seal Material Polymid
Pressure Rating (psi) 285 psi rated pressure
UPC Code 039923779663
Length 10.99"
Width 8"
Height 7.5"
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
