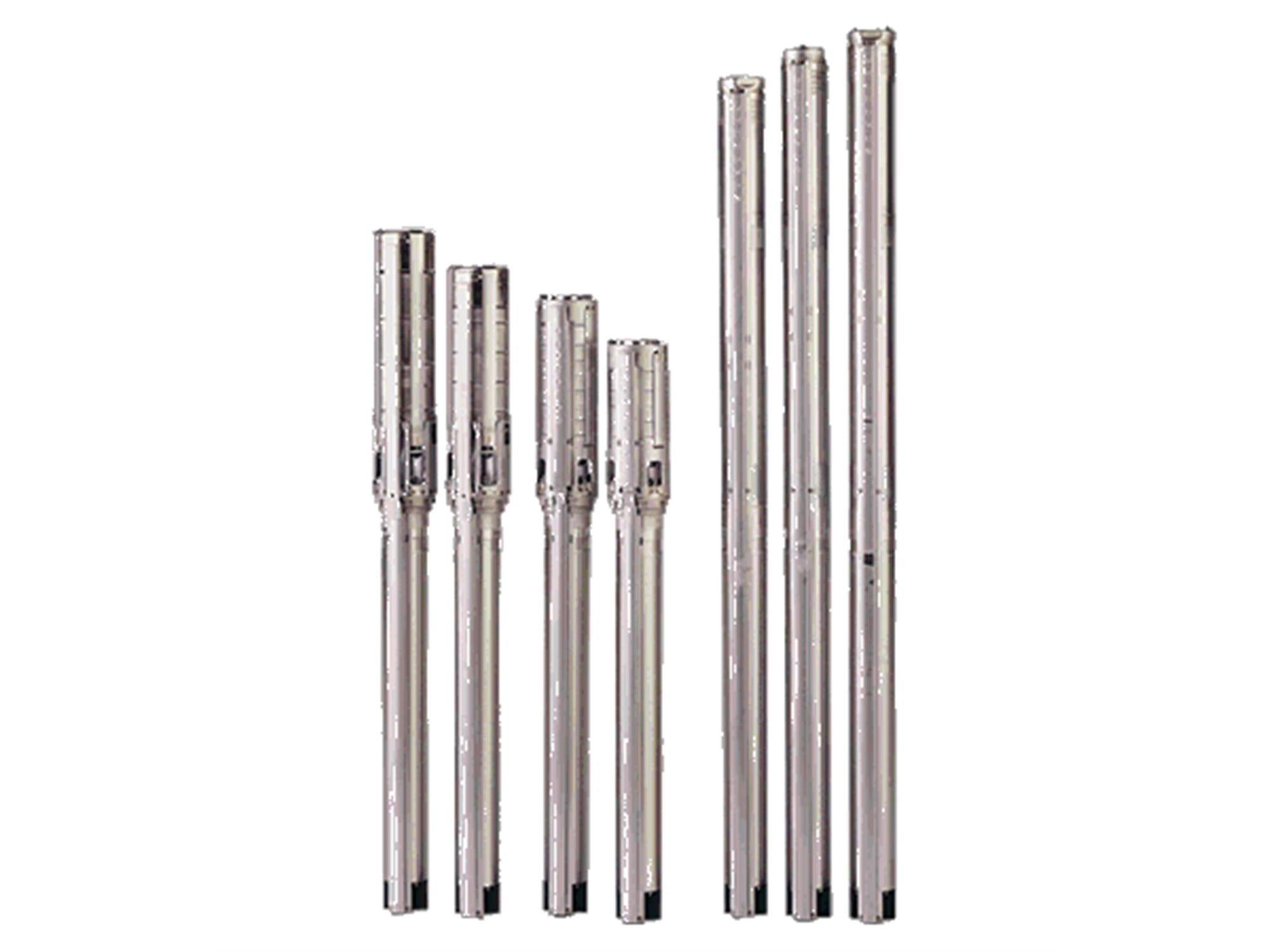

Grundfos 99595463, 30 SQF-160 Submersible Pump with Inverter

SKU: LSI4FQRHDZ Part Number: 99595463

Price:
Sale price$7,789.95

Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This submersible pump is designed for renewable energy applications, utilizing a built-in inverter compatible with solar, wind, and AC power sources. It operates on both AC and DC voltage, making it versatile for various installations. The 3" centrifugal pump is suitable for medium heads and flow rates, providing a reliable water supply system based on renewable energy. It includes features such as maximum power point tracking (MPPT), dry-running protection, and voltage and overload safeguards. This system can be adapted to meet diverse needs at installation sites within categories like groundwater management and irrigation systems.

Specifications

Manufacturer Grundfos
Part Number 99595463
Stages 4
Approvals CE,EAC,CN RoHS Exempt
Pump Number 99595372
Return valve Y
Zinc Anodes No
Pump Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Impeller Polyamide, EN 1.4301, AISI 304
Motor Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum ambient pressure 217.56 psi
Maximum operating pressure 217.56 psi
Type of connection NPT(M)
Size of connection 1 1/2 inch
Minimum borehole diameter 2.99 in
Pumped liquid Water
Liquid temperature range 32 .. 95 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor type MSF3
Power input - P1 2.5 kW
Rated power - P2 2.5 HP
Rated voltage AC 1 x 90-240 V
Rated voltage DC 100-300 V
Rated current 12.5 A
Power factor 1.0
Rated speed 10700 rpm
Start. method direct-on-line
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Built-in motor protection Y
Thermal protec internal
Length of cable 6.56 ft
Udc 300 V, 100 V
Net weight 14.6 lb
Gross weight 16.1 lb
Shipping volume 0.4 ft³
Sales region North America
Country of origin MX
Custom tariff no. 8413.70.2004

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
