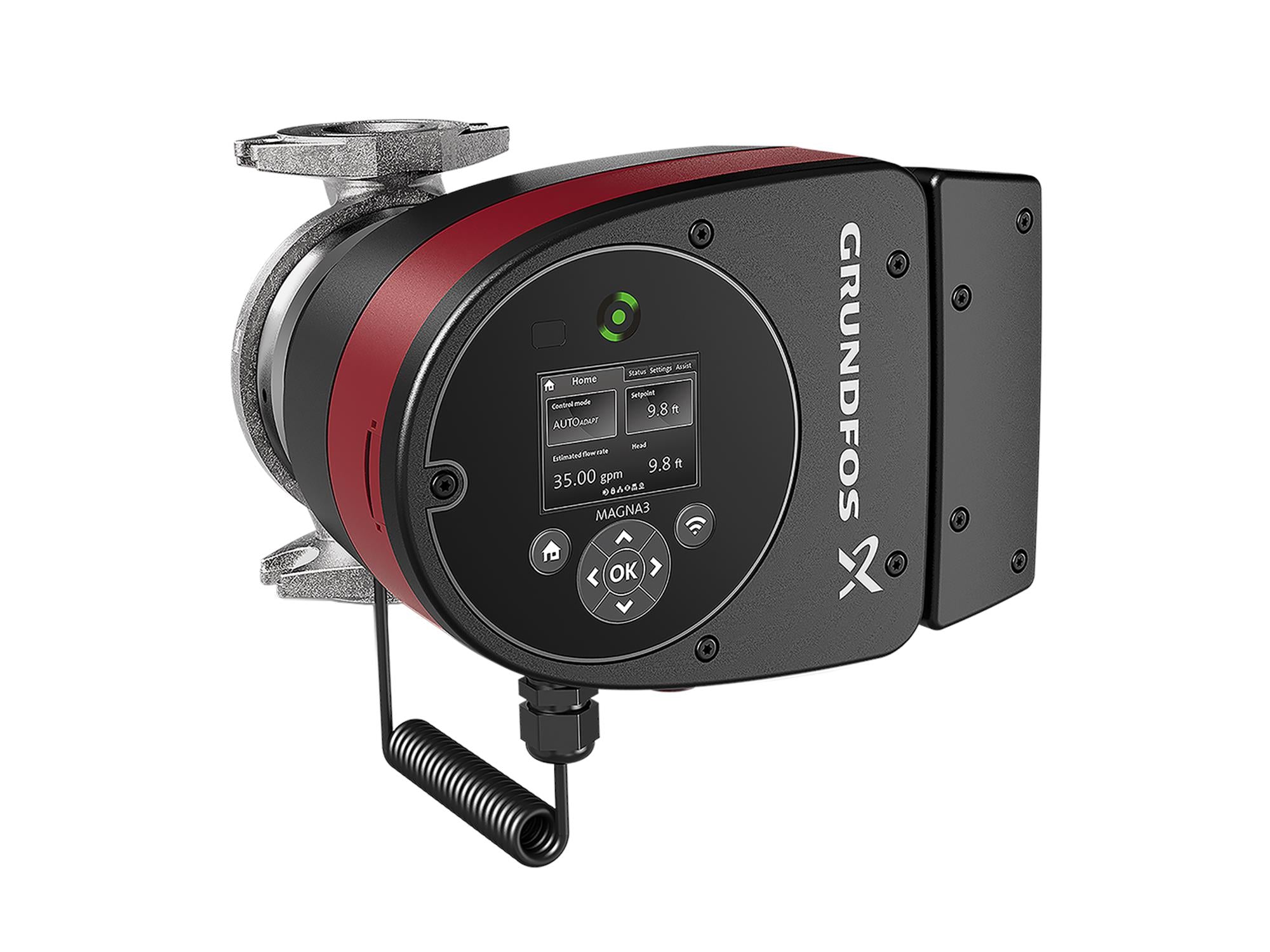

Grundfos 98126826, MAGNA3 32-100 Circulator Pump 115-230V S.S.

Roll over image to zoom in Click on image to zoom

Grundfos 98126826, MAGNA3 32-100 Circulator Pump 115-230V S.S.

SKU:: LSI4MHEYEC
MPN:: 98126826

Price:

$2,859.00 $4,291.00

Lower Price Available Add to cart for your price

Stock:

In stock (1 unit), ready to be shipped

Quantity:

This circulator pump, known as the MAGNA3 32-100, operates on 115-230V and is constructed with stainless steel, making it suitable for applications such as domestic hot water systems. It has integrated Bluetooth connectivity for direct interaction with the GO APP.

Manufacturer	Grundfos
Part Number	98126826
Rated flow	29.1 US gpm
Rated head	20.67 ft
Maximum head	32.81 ft
TF class	110
Approvals	cETLus, Proposition 65
Approvals for drinking water	NSF372
Pump housing	Stainless steel, EN 1.4308, ASTM A351-CF8
Impeller	Composite
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	174.05 psi
Flange standard	GF
Pipe connection	GF15/26/40/43
Pressure rating for connection	PN 12
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	14 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Maximum power input - P1	178 W
P1 min.	9.7 W
Main frequency	60 Hz
Rated voltage	1 x 115-230 V
Minimum current consumption	0.29 A
Maximum current consumption	1.61 A
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Energy (EEI)	0.18
Net weight	15.3 lb
Gross weight	16.4 lb
Shipping volume	0.74 ft³
Country of origin	US
Custom tariff no.	8413.70.2005
