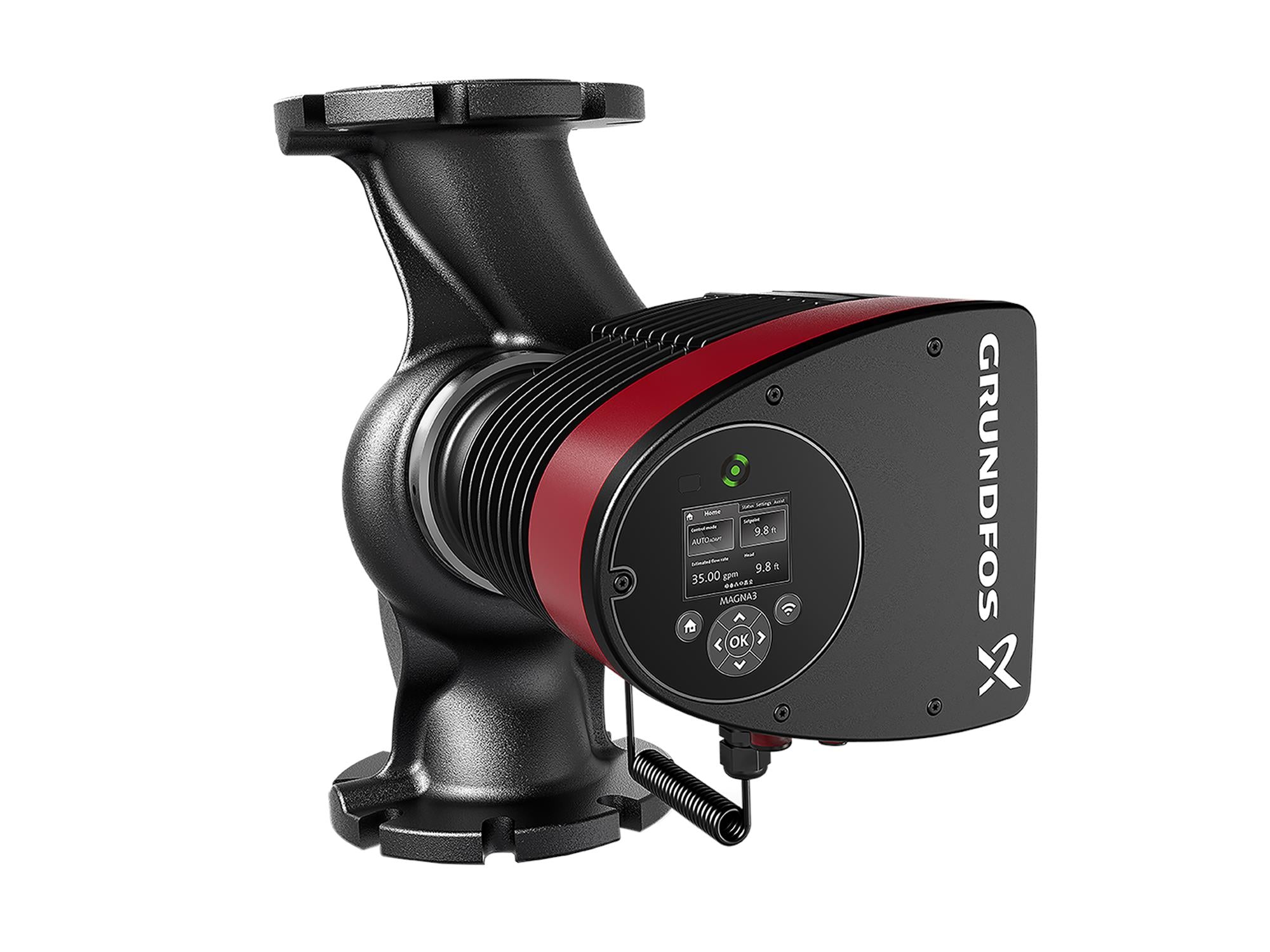

Grundfos 98126860, MAGNA3 100-120 GF Circulator Pump 208-230V

Roll over image to zoom in Click on image to zoom

Grundfos 98126860, MAGNA3 100-120 GF Circulator Pump 208-230V

SKU:: LSI5LXIG62
MPN:: 98126860

Price:

$6,726.95 $10,850.00

Save 38% Call 844-448-0880 for large volume pricing

Stock:

Call or Chat for availability

Contact our team to confirm availability

844-448-0880

Quantity:

This circulator pump is the MAGNA3 100-120 GF, designed for commercial heating and hot water recirculation applications. It operates at 208-230 volts and offers advanced system control and monitoring capabilities. The pump supports fieldbus communication through optional CIM modules and connects directly with a mobile app via Bluetooth for enhanced functionality.

Manufacturer	Grundfos
Part Number	98126860
Rated flow	165 US gpm
Rated head	31.83 ft
Maximum head	39.37 ft
TF class	110
Approvals	cETLus, Proposition 65
Pump housing	Cast iron, EN 1561 EN-GJL-250, ASTM A48-250B
Impeller	Composite
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	174.05 psi
Flange standard	GF
Pipe connection	GF100
Pressure rating for connection	PN 12
Port-to-port length	17 3/4 in
Pumped liquid	Water
Liquid temperature range	14 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Maximum power input - P1	1564 W
P1 min.	31 W
Main frequency	60 Hz
Rated voltage	1 x 208-230 V
Minimum current consumption	0.32 A
Maximum current consumption	6.78 A
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Energy (EEI)	0.17
Net weight	75.7 lb
Gross weight	82.2 lb
Shipping volume	3.21 ft³
Country of origin	US
Custom tariff no.	8413.70.2015

MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N (Service Kit Catalogue)

MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)

MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)

MAGNA3, Terminal-connected versions / Display panel (Service kit instructions)

MAGNA3, Terminal-connected versions, Control box (Service kit instruction)

MAGNA 1 and MAGNA 3 (Addendum to Safety Instructions) (Installation and operating instructions)

MAGNA3, Terminal Connected (Quick Guide) - (US version)

MAGNA3 (Safety instructions)

MAGNA3 (Plug-connected versions / Pump head - clamp - O-ring) (Service kit instruction)

MAGNA3, Sensor cap, Plug and terminal connected versions (Service kit instruction)

MAGNA3 (Product brochure)

MAGNA3, model A, B and C (Installation and operating instructions)

MAGNA3, model D (Quick Guide)

MAGNA3, From Model D (Data booklet)

MAGNA3 (Models 32-60, 32-100) VALID FROM MODEL D (Quick Guide)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

CBS, GRUNDFOS INTELLIGENT PUMP SYSTEMS (Product brochure)

MAGNA3 - VALID FROM MODEL D (Quick Guide)

MAGNA3 (Quick Guide)

MAGNA3, Model D (I & O instructions)

GRUNDFOS DISTRIBUTED PUMPING, A modern approach to HVAC system design (Brochure)

GRUNDFOS DISTRIBUTED PUMPING, SUBSTANTIALLY REDUCE YOUR OPERATING COSTS (Brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)

MAGNA3, Model E (Data booklet)

MAGNA3 Model E, Medium and large (Quick Guide)

MAGNA3 Model E, Small (Quick Guide)

MAGNA 3, Model E (I & O instructions)

MAGNA3, Model E (Safety instructions)

MAGNA3, Model A,B,C (Data booklet)
