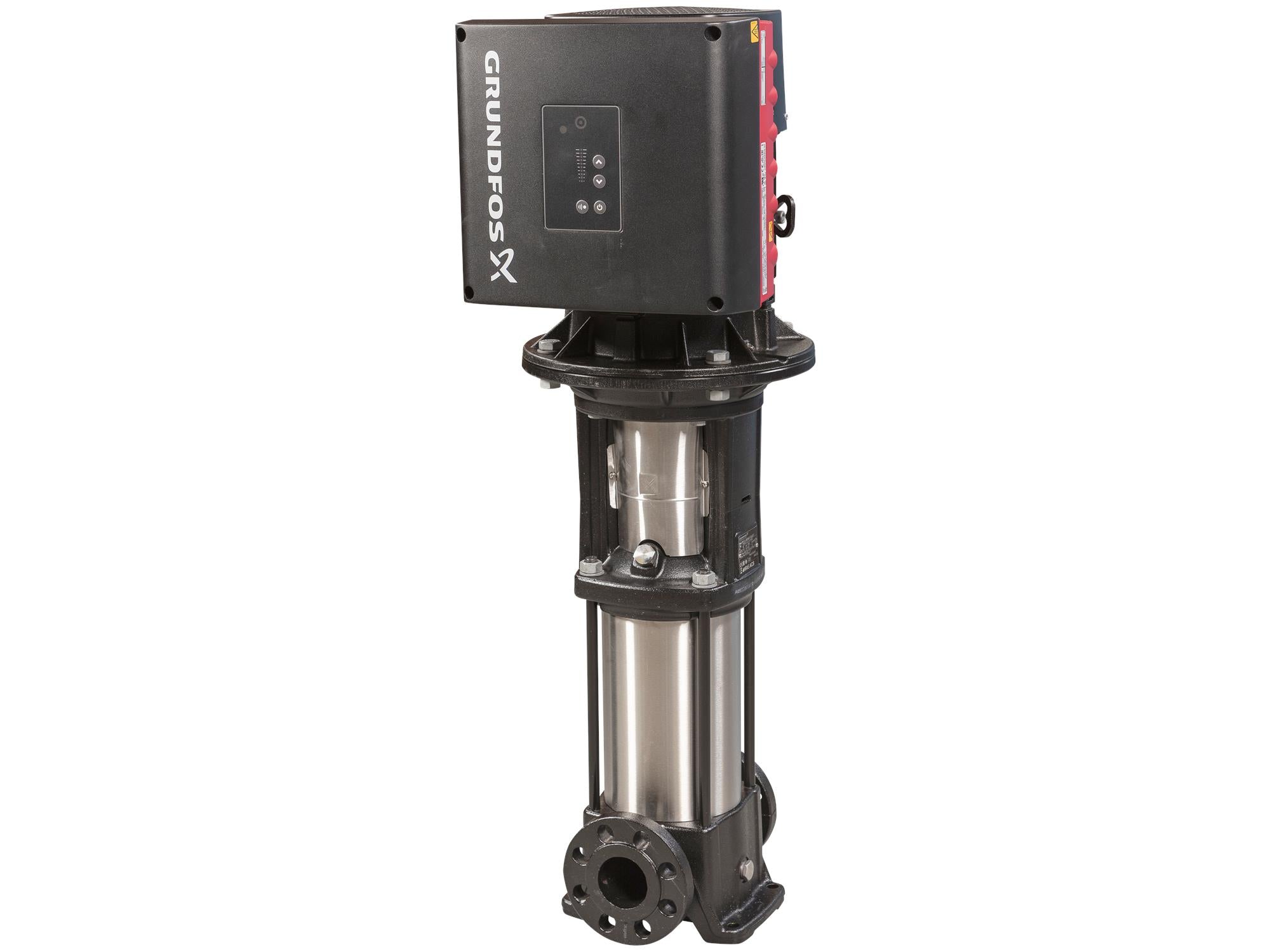

Grundfos 99340793, Vertical Multistage Centrifugal Pump with Frequency Converter

SKU: LSI5PDQJUA Part Number: 99340793

Price:
Sale price$3,307.95 Regular price$3,696.00

Save 10% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has an integrated frequency converter. The pump head and base are made of cast iron, while all other wetted parts are constructed from stainless steel (EN 1.4301). It is suitable for applications such as water treatment fertigation, chemigation and dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99340793
Rated pump speed 3436 rpm
Rated flow 15.4 US gpm
Rated head 44.95 ft
Maximum head 61.68 ft
Stages 3
Impellers 2
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version A
Base Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Bearing SIC
Maximum ambient temperature 122 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 250 lb
Flange size for motor 56C
Connect code FGJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 71A
Rated power - P2 0.5 HP
Power (P2) required by pump 0.5 HP
Over/undersize motor Standard motor size
Main frequency 60 Hz
Rated voltage 1 x 200-240 V
Service factor 1.00
Rated current 2.4-2.1 A
Cos phi - power factor 0.96
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 84 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Pressure sensor N
Terminal box position 6
Net weight 63.9 lb
Gross weight 74.9 lb
Shipping volume 4.94 ft³
Config. file no 98498866
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Save 6%
Grundfos 96453529, Chamber Stack Kit CR/CRI 3-2
Grundfos Grundfos 96453529, Chamber Stack Kit CR/CRI 3-2
Sale price$528.95 Regular price$565.00
Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Grundfos 96455090, Gasket Kit EPDM CR/I/N 1S/1/3/5
