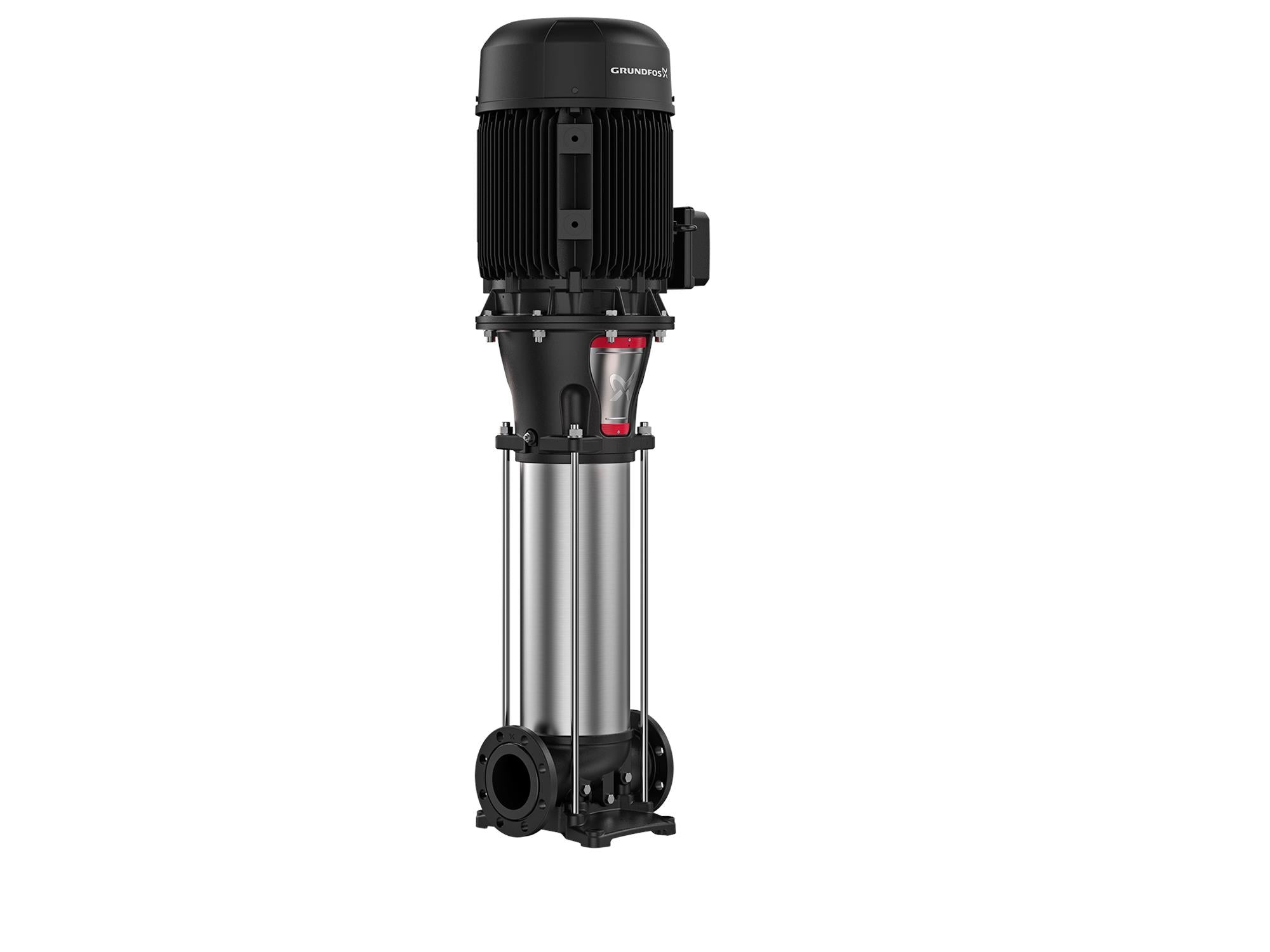

Grundfos 99971265, Vertical Multistage Centrifugal Pump CR 185-5 A-G-A-E-HQQE

Roll over image to zoom in Click on image to zoom

Grundfos 99971265, Vertical Multistage Centrifugal Pump CR 185-5 A-G-A-E-HQQE

Name: Grundfos 99971265, Vertical Multistage Centrifugal Pump CR 185-5 A-G-A-E-HQQE
Brand: Grundfos
SKU: LSI5PFDK8X
Price: 72559.0 USD
Availability: OutOfStock

SKU: LSI5PFDK8X Part Number: 99971265

Price:

$72,559.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

More payment options

This vertical multistage centrifugal pump has suction and discharge ports on the same level. The pump head and base are made of cast iron, while all other wetted parts are constructed from stainless steel (EN 1.4301). It is applicable for water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Manufacturer	Grundfos
Part Number	99971265
Rated pump speed	3576 rpm
Rated flow	980 US gpm
Rated head	805.2 ft
Maximum head	1070 ft
Stages	5
Impellers	5
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals for drinking water	NSF/ANSI 61,NSF/ANSI 372
Curve tolerance	ISO9906:2012 3B
Pump version	A
Base	Ductile cast iron, EN 1563 EN-GJS-500-7, ASTM A536-84 65-45-12
Impeller	Stainless steel, EN 1.4401, AISI 316
Material code	A
Code for rubber	E
Bearing	WC/WC
Support bearing	Graflon
Thrust handling device	Y
Material certified according to	European standards
Maximum operating pressure	580.15 psi
Max pressure at stated temperature	363 psi / 250 °F, 580.15 psi / 176 °F
Type of connection	ANSI
Size of suction port	8 inch
Size of outlet port	8 inch
Pressure rating for connection	300 lb
Flange size for motor	449TSD
Connect code	G
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Power (P2) required by pump	251 HP
Frequency converter	None
Net weight	818 lb
Gross weight	1080 lb
Shipping volume	44.2 ft³
