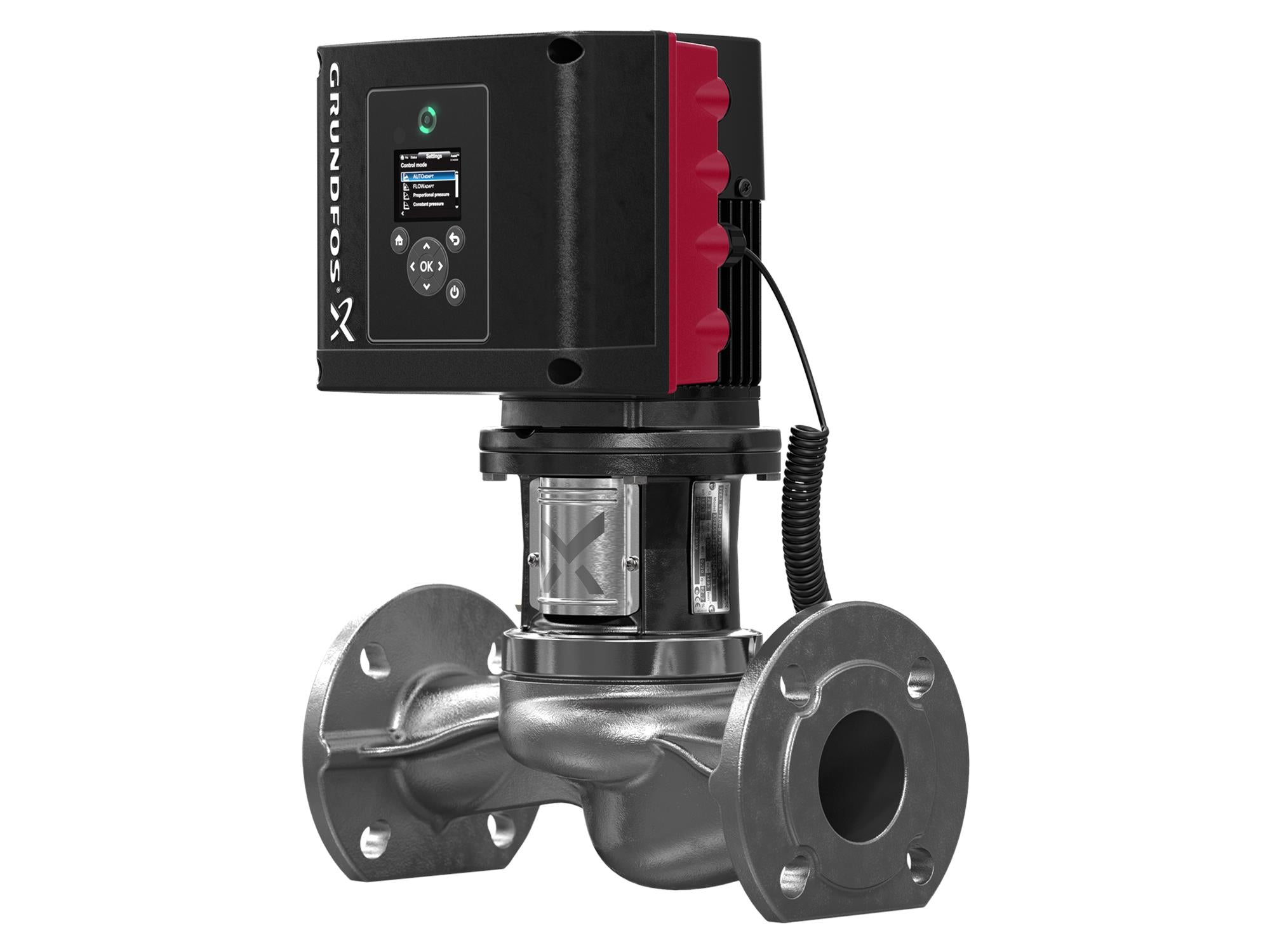

Grundfos 99884117, TPE3 80-110 S-A-G-I-BQQE-GBB Inline Pump

SKU: LSI5PNTSAS Part Number: 99884117

Price:
Sale price$9,199.95 Regular price$15,333.00

Save 40% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This inline single-stage pump is a TPE3 model with a stainless steel pump housing, designed for hot water recirculation. It is a single-stage, close-coupled in-line centrifugal pump with a mechanical shaft seal. The pump has frequency-controlled motors and includes differential pressure and temperature transmitters, making it suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99884117
Rated pump speed 3000 rpm
Rated flow 184 US gpm
Rated head 23.62 ft
Maximum head 36.09 ft
Actual impeller diameter 3.54 in
Code for shaft seal BQQE
Curve tolerance ISO9906:2012 3B2
Pump version A
Pump housing Stainless steel, EN 1.4308, ASTM CF8
Impeller Composite, PES+30% GF
Material code I
Range of ambient temperature -4 .. 104 °F
Maximum operating pressure 174.05 psi
Max pressure at stated temperature 174.05 psi / 248 °F
Type of connection GF
Size of connection GF 80
Pressure rating for connection PN 12
Port-to-port length 14 3/16 in
Flange size for motor 56C
Connect code G
Pumped liquid Water
Liquid temperature range -13 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor type 80B
Rated power - P2 1.5 HP
Main frequency 60 Hz
Rated voltage 3 x 200-240 V
Rated current 4.1-3.5 A
Cos phi - power factor 0.91
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 89.3 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel HMI300 - Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
DOE Pump Energy Index VL 0.40
Net weight 82.7 lb
Gross weight 108 lb
Shipping volume 6.43 ft³
Config. file no 99843635
Country of origin HU
Custom tariff no. 8413.70.2025

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
