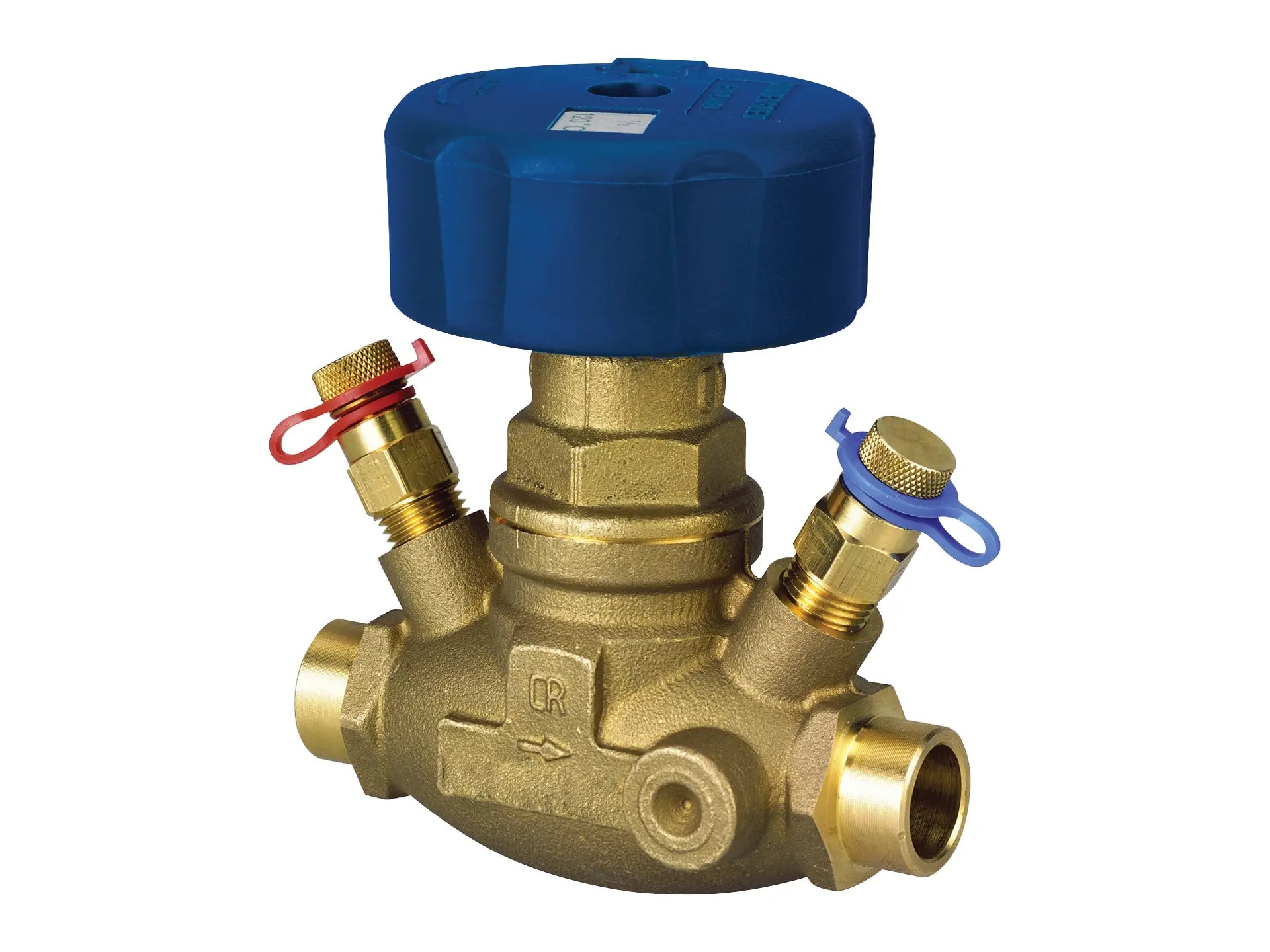

This NIBCO circuit balancing valve is a "T" pattern globe style valve offering improved flow measurement accuracy. With unequalled regulation performance and accuracy across all valve positions, the valve offers positive shutoff and isolation. The memory stop feature provides repeatable regulation and control. The valve is recommended for use in HVAC and plumbing systems. This NIBCO 1710 Series variable orifice manual balancing valve is dezincification-resistant and complete with integral pressure temperature ports and memory stop. The 1710 is also capable of providing system isolation for maintenance. The integral memory stop feature allows the system to be returned to its retained settings once maintenance is completed. NIBCO manual balancing valves provide the ultimate solution for a wide range of mechanical and HVAC chilled and hot water application requirements to ensure a balanced system and a comfortable indoor climate. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- 240 psi non-shock cold working pressure
- Maximum Temperature 250°F at 240 psi
- EPDM O-ring
- Two integral test ports
- Dezincification resistant
- Female solder end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- FLO-BOSS® MV
- ASME B16.18 (solder ends)
