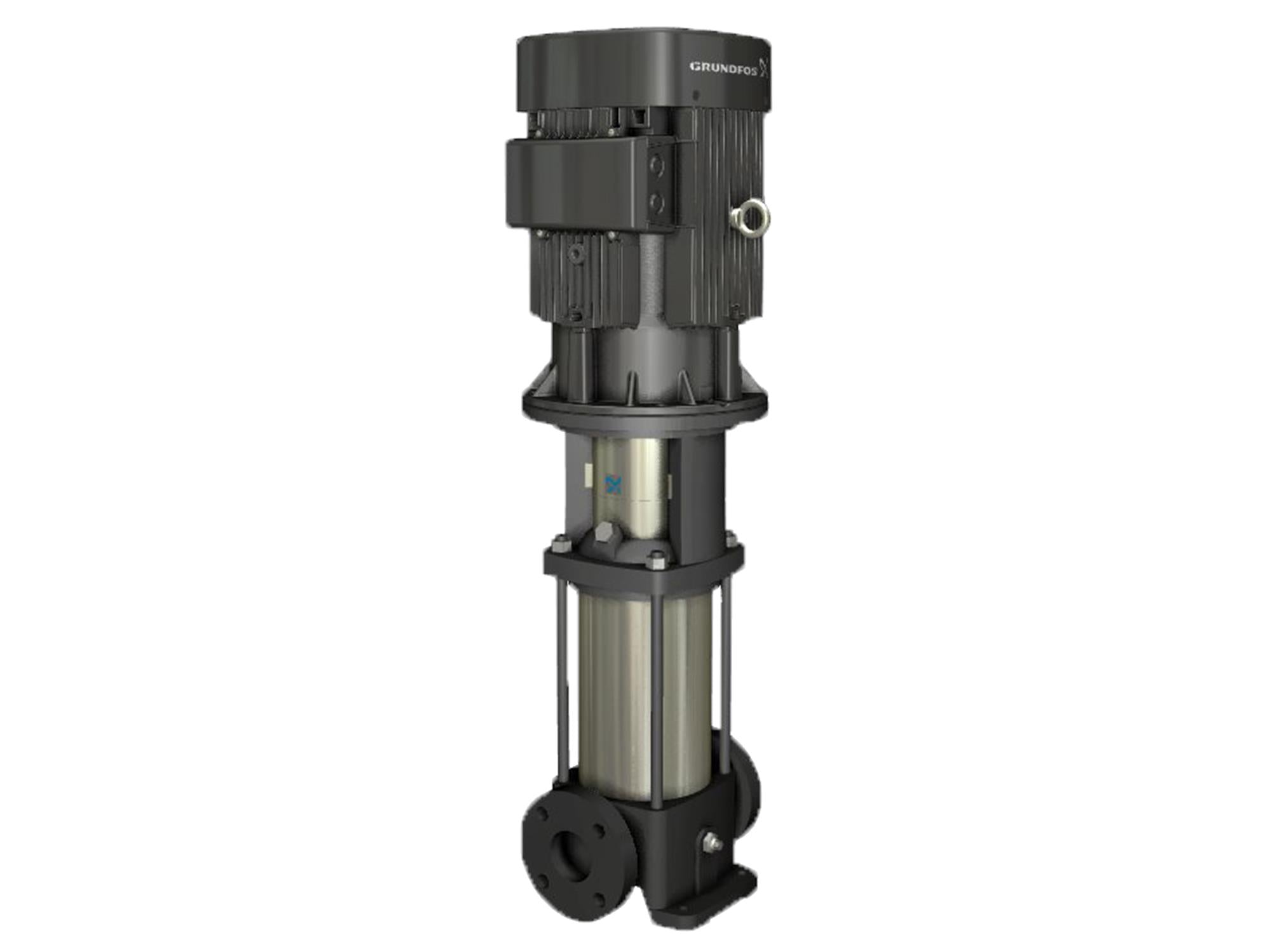

Grundfos 97791967, Vertical Multistage Centrifugal Pump CR 64-2-2 B-G-A-E-HQQE

Roll over image to zoom in Click on image to zoom

Grundfos 97791967, Vertical Multistage Centrifugal Pump CR 64-2-2 B-G-A-E-HQQE

Name: Grundfos 97791967, Vertical Multistage Centrifugal Pump CR 64-2-2 B-G-A-E-HQQE
Brand: Grundfos
SKU: LSI60ZMKI7
Price: 9292.0 USD
Availability: OutOfStock

SKU: LSI60ZMKI7 Part Number: 97791967

Price:

$9,292.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Manufacturer	Grundfos
Part Number	97791967
Rated pump speed	2919 rpm
Rated flow	282 US gpm
Rated head	95.81 ft
Maximum head	133.9 ft
Stages	2
Impellers	2
Number of reduced-diameter impellers	2
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CE,EAC,UKCA,SEPRO
Approvals for drinking water	ACS
Curve tolerance	ISO9906:2012 3B
Pump version	B
Base	Cast iron, EN 1563 EN-GJS-500-7, ASTM A536 80-55-06
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Support bearing	Graflon
Maximum operating pressure	232.06 psi
Max pressure at stated temperature	232 psi / 250 °F, 232 psi / -22 °F
Type of connection	ANSI
Size of suction port	4 inch
Size of outlet port	4 inch
Pressure rating for connection	PN 16
Flange rating inlet	150 lb
Flange size for motor	FF300
Connect code	G
Pumped liquid	Water
Liquid temperature range	-22 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	IEC
Power (P2) required by pump	10 HP
Frequency converter	None
Pressure sensor	N
Minimum efficiency index, MEI ≥	0.70
Net weight	166 lb
Gross weight	217 lb
Shipping volume	10.9 ft³
