Grundfos 96082377, Vertical Multistage Centrifugal Pump CRI1-3 A-CA-A-V-HQQV

SKU: LSI6BJVEZC Part Number: 96082377

Price:
Sale price$1,043.95 Regular price$1,558.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with stainless steel materials (EN 1.4301) in contact with the liquid, suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, and drip or micro spray irrigation systems.

Specifications

Manufacturer Grundfos
Part Number 96082377
Rated pump speed 3425 rpm
Rated flow 9.69 US gpm
Rated head 67.92 ft
Maximum head 89.57 ft
Stages 3
Impellers 3
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQV
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber V
Bearing SIC
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 194 °F, 363 psi / -4 °F
Type of connection FlexiClamp
Size of inlet connection DN 32
Size of outlet connection DN 32
Pressure rating for connection PN 25
Flange size for motor 56C
Connect code CA
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Frequency converter None
Net weight 25.6 lb
Gross weight 36.6 lb
Shipping volume 4.94 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Save 6%

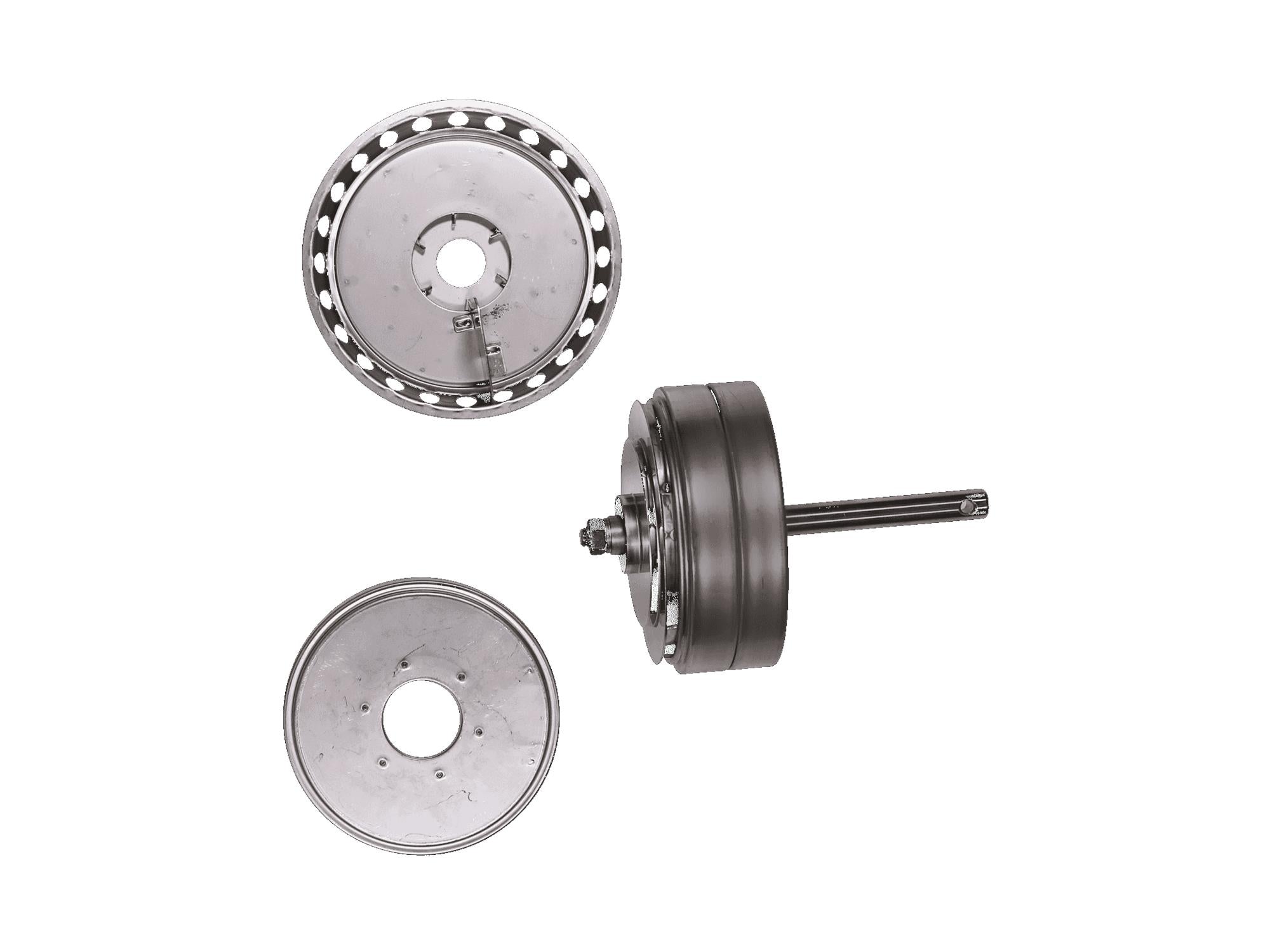

Grundfos 96453486, Chamber Stack Kit for CR/CRI 1-3
