This Taco Shell & Tube Heat Exchanger, model G4206S, is a high-quality heat transfer device designed for efficient steam to liquid heat exchange. With a nominal shell diameter of 4 inches, this heat exchanger features two tube passes and a tube bundle length of 36 inches. The tubes are made of copper, measuring 3/4 OD x .049 (18 Ga) wall thickness, specifically SB75 tubes. The connection type is threaded connections, ensuring secure and leak-free operation. The tube plate material is steel, providing durability and strength, while the separators are also made of steel for optimal performance. This heat exchanger has a working pressure capacity of 150 psi, making it suitable for various applications requiring reliable heat transfer capabilities.

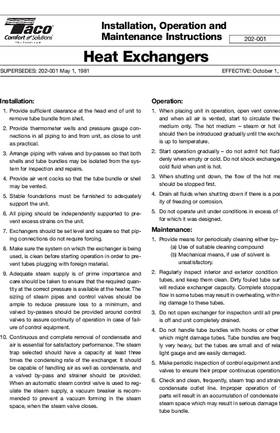

Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.
Note: product image is generic
