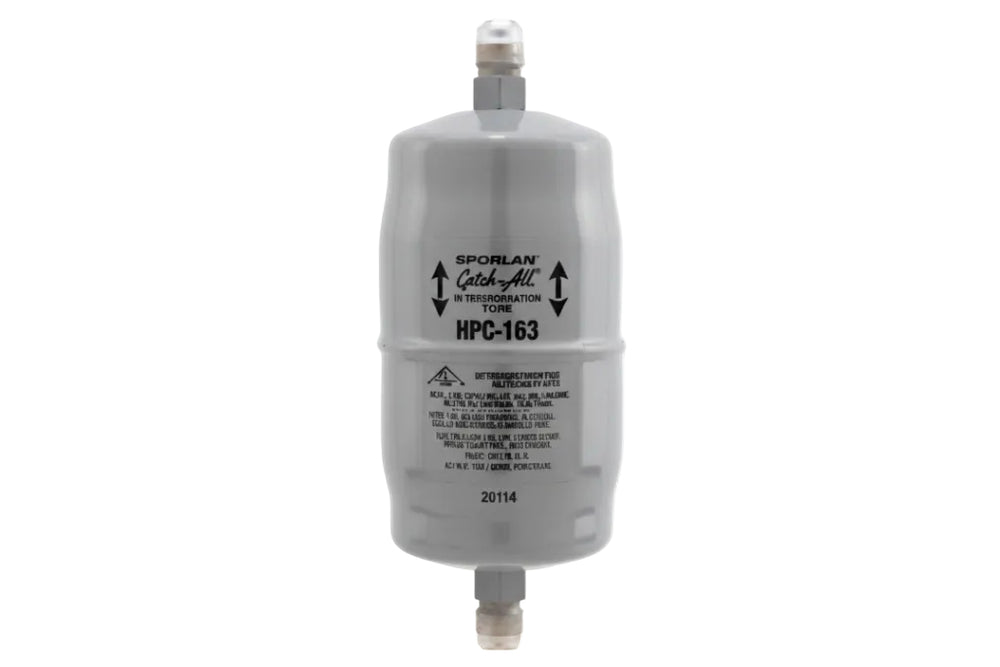

This Sporlan bi-flow drier removes moisture and contaminants from refrigeration and air conditioning systems. It supports flow in both directions, accommodating the cycling of refrigerant during heating and cooling operations. The device connects via 1/2" ODF fittings, ensuring compatibility with standard piping used in HVAC installations.
Specifications
| Nominal Capacity Range (ton): |
1-8 |
| Desiccant Volume (cu. in.): |
14 |
| Filter Area (in²): |
26 in² |
| Model Number: |
HPC-164-S 1/2 ODF |
| Length (inch): |
7.07" |
| Connection Size (inch): |
1/2" |
| Connection Style: |
ODF Solder |
| Application: |
System Clean Up |
| Length (mm): |
179.6 mm |
Sporlan HPC Series Overview
Sporlan Heat Pump Liquid Line Filter Driers—HPC Series—provide unparalleled control of the most harmful contaminants in HVAC&R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today’s high-performance heat pump air-conditioning systems. With multiple sizes and fitting configurations, it is easy to find the right model for systems up to 20 tons.
Features/Benefits:
- Complete contaminant control to protect and extend system life and ensure system reliability
- High-performance desiccant package provides high water capacity & acid capacity
- Porous molded core provides excellent filtration of solid debris for TEV and compressor protection
- Internal stainless steel check valves always directly flow through the core to ensure solid debris is retained when the system reverses the cycle.
- Sizes from 8 cu. in. to 30 cu. in. and 1/4" to 7/8" fittings for use up to 20 tons cooling capacity
- Models available with activated charcoal for use during system clean-up
- CSG models have an integrated liquid and moisture-indicating sight glass to allow visual refrigerant examination
- SAE flare fittings and solid copper ODF fittings available
- Suitable for use with HCFC, HFC, HFO, and HC refrigerants
- UL Listed for 650 psig rated pressure for R-410A and Sub-critical CO2 refrigerant use
- RoHS, REACH, ATEX, and PED compliant
-
Applications: Liquid line drying and filtering for solid contaminant removal
