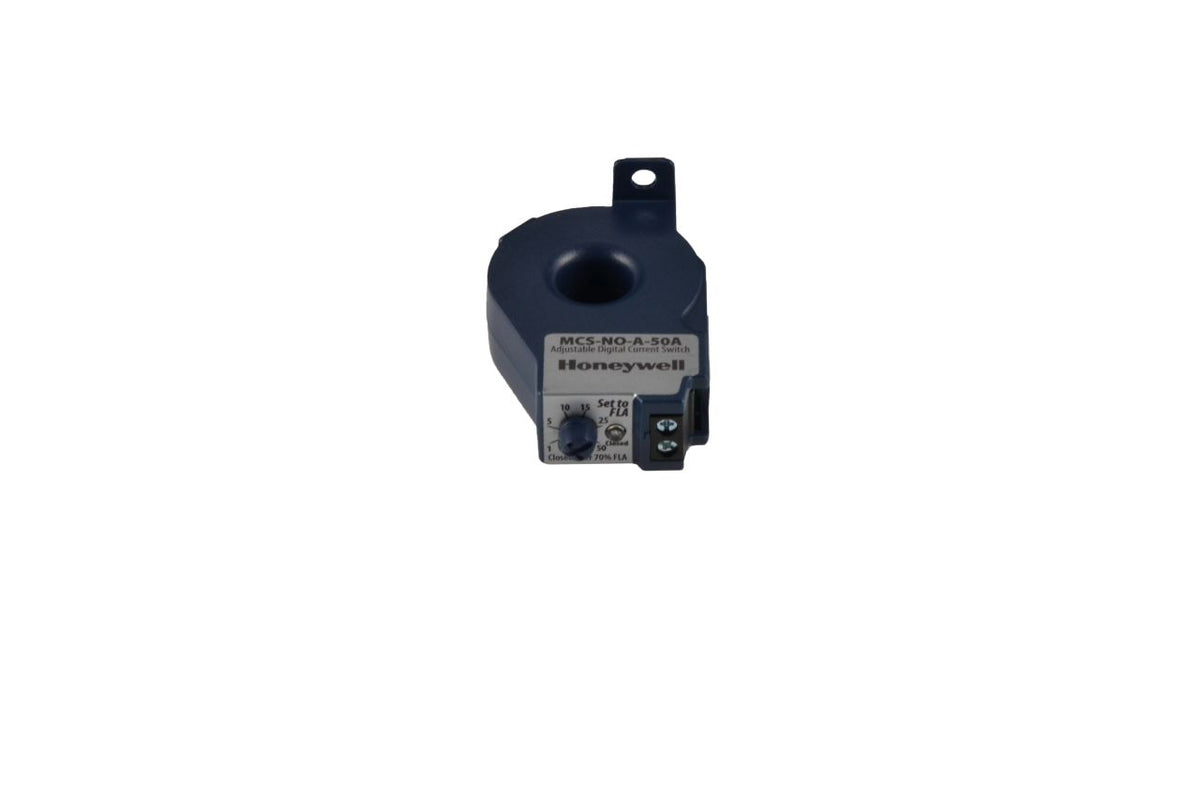

Honeywell MCSS/MCSP Current Switch MCSP-A

Current switch, split-core, adjustable.

MCSS/MCSP current switches are miniature Go/No Go current status switches designed to provide status information on AC current supplied equipment. The output of these switches uses a normally open (NO) solid-state switch (more reliable than a relay) and are non-polarity sensitive. These units do not need power supplies, as they induce the current from the conductors being monitored.

Features & Benefits:

• Maximum sensing current voltage: 600V AC
• Isolation voltage: 2,200V AC
• Operating frequency: 50 Hz, 60 Hz
• Operating temperature range: -30 to 60ºC
