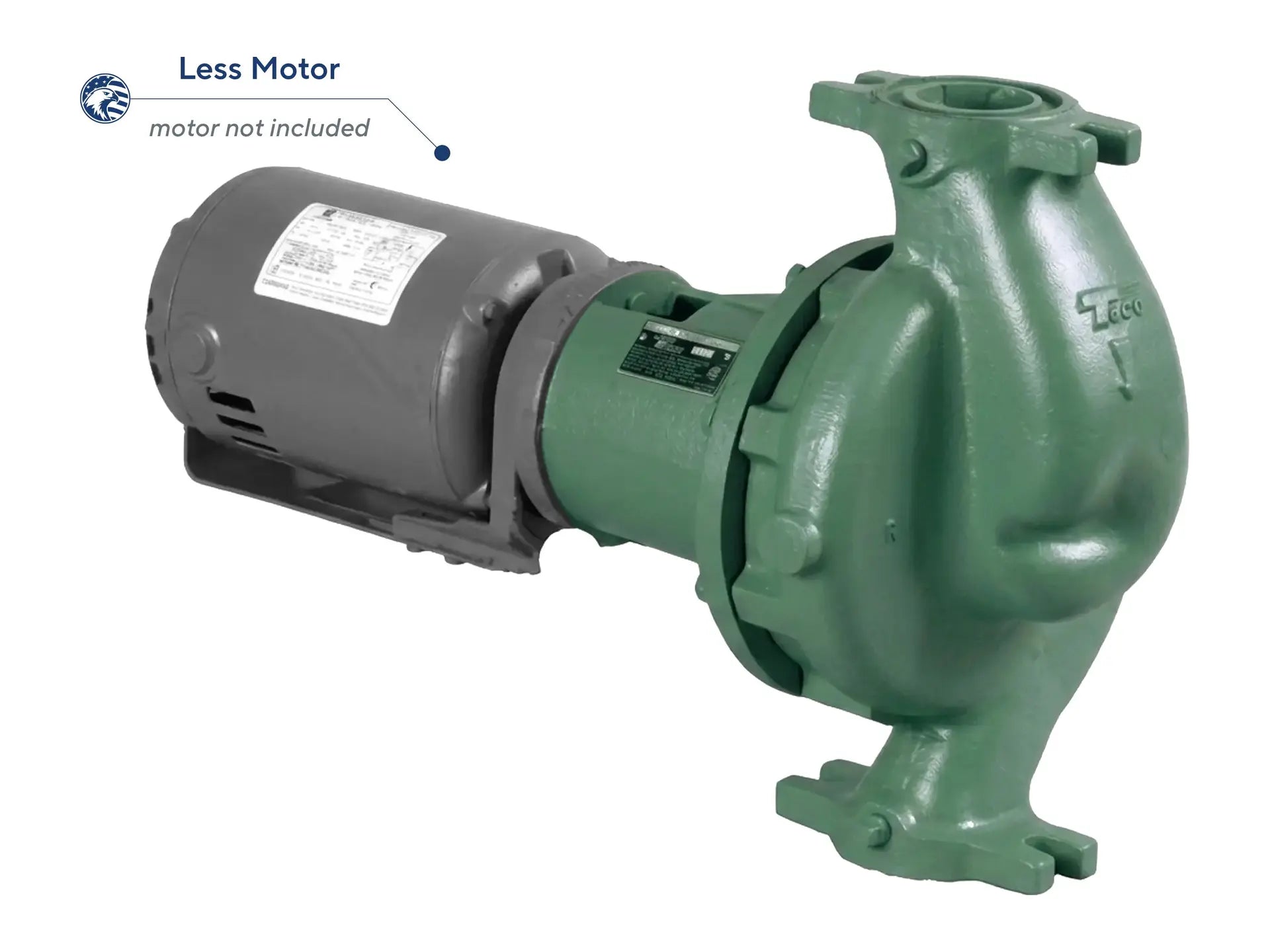

This in-line pump has 2" suction and 2" discharge ports along with a 6.15" nominal impeller. The unit consists of a cast iron casing and bracket with a bronze face plate, while the impeller and shaft use stainless steel construction. The mechanical seal assembly includes a silicon carbide stationary seat, a carbon rotating element, and Viton elastomers rated for operation at 250°F. The pump includes a replaceable bearing cartridge containing permanently sealed, grease-lubricated ball bearings, which isolates internal bearing components from system fluid temperatures. This standardized cartridge arrangement simplifies general maintenance requirements.
The unit fits 3/4 HP and 1 HP motors with a 56 frame size. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
