Please note this item is made to order and additional lead-times may apply.

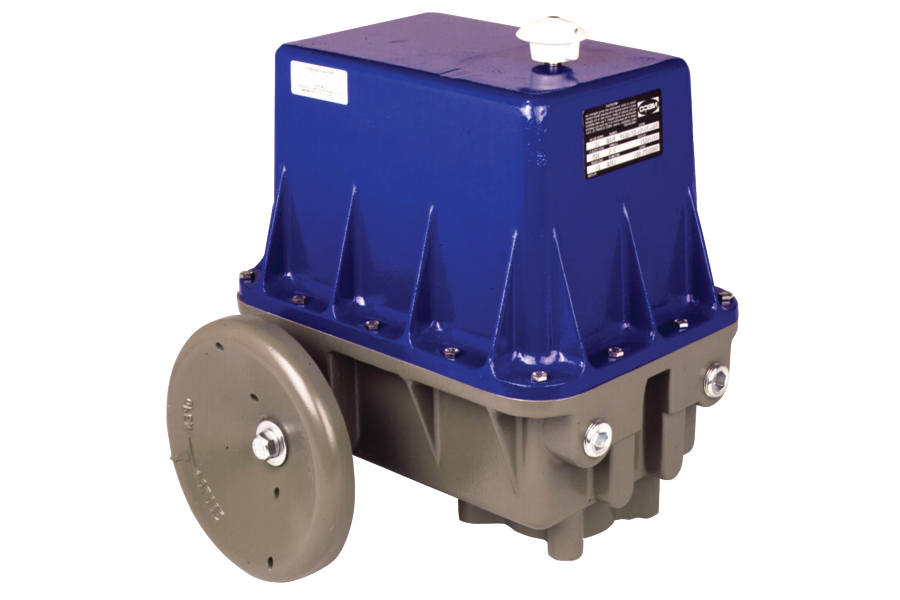

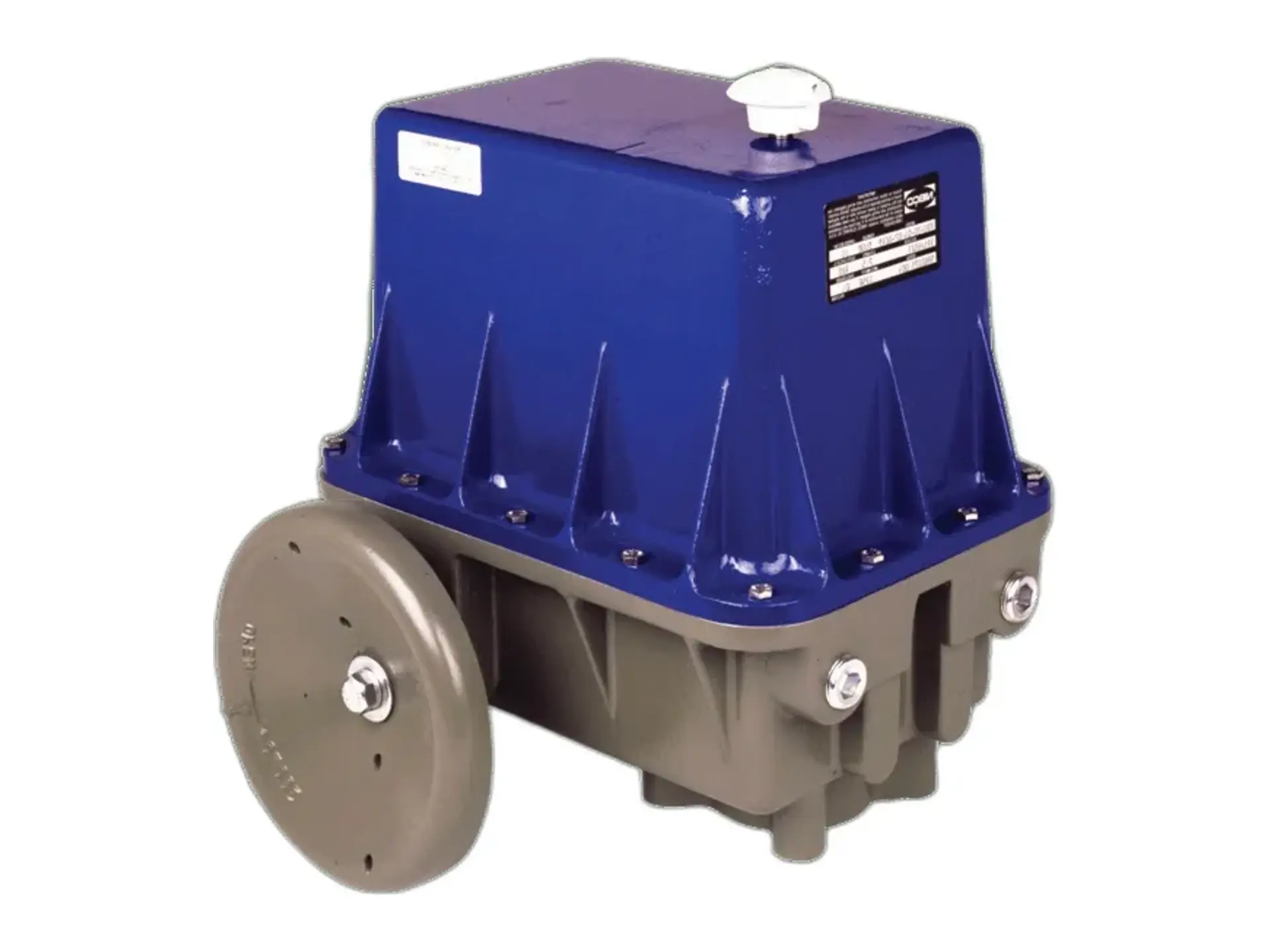

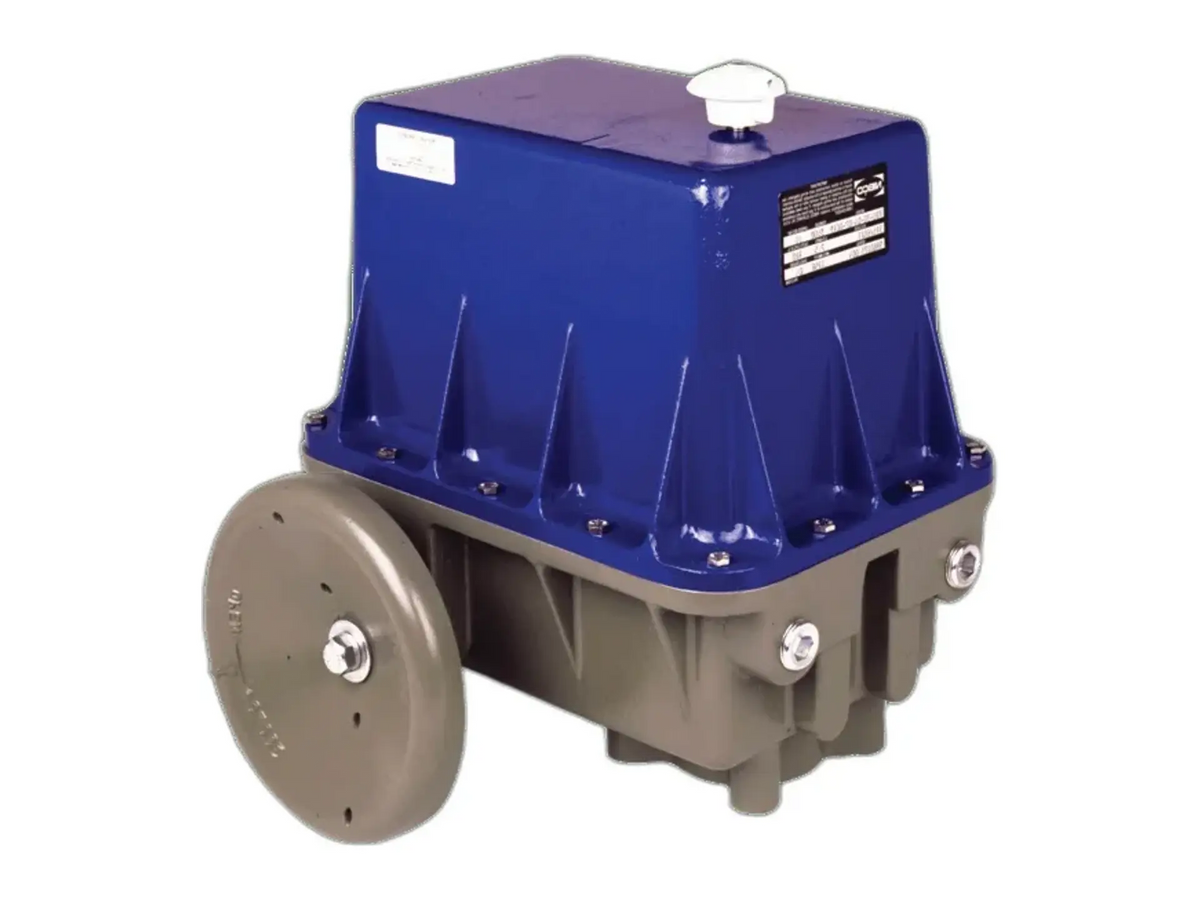

This NIBCO Series 800 actuator offers output torque ranging from 3,000 to 10,000-inch pounds. Based on a highly effective planetary gear system, the actuator series includes a full-time direct-acting handwheel type manual override to produce maximum torque in a compact package. Motors are rated for 100% duty cycle. The Series 800 line of quality electric actuators is designed for quarter-turn applications, including ball valves, butterfly valves, plug valves, dampers, vents, and similar uses. The actuator operating temperature ranges from -40°F to +140°F. The aluminum enclosure is certified to NEMA 4 and 7. Please refer to NIBCO technical data sheets, valve selection guides, and catalog for engineering and installation information. Engineered with a modular approach, NIBCO electric actuation systems offer the flexibility to actuate new valves or to retrofit existing valves with unprecedented ease. Electric actuation systems feature an ISO standard mounting design, assuring long-term industry acceptance. Choose NIBCO flow control products for the most specified, versatile, and economical option in commercial and industrial applications. A NIBCO limited warranty backs NIBCO actuation products.
Features
- Heater and thermostat installed in all actuators
- Case-hardened steel spur gear train is permanently lubricated
- Operating temperatures -40°F with standard heater activated, to +140°F
- Single-phase capacitor run motor with thermal overload protection
- Handwheel manual operation
- Captive slotted hex bolts on enclosure
- Dual-machined conduit entrances
- Two single-pole double-throw travel-stop limit switches with adjustable cams and two auxiliary SPDT
- Female drive shaft
- Torque 3,000 to 10,000 in/lb
- Voltage 110, 220 VAC
- Aluminum enclosure certified to NEMA 4 and 7
