Name: Grundfos 99971218, Vertical Multistage Centrifugal Pump, Stainless Steel
Brand: Grundfos
SKU: LSIAPBEX74
Price: 80314.0 USD
Availability: OutOfStock

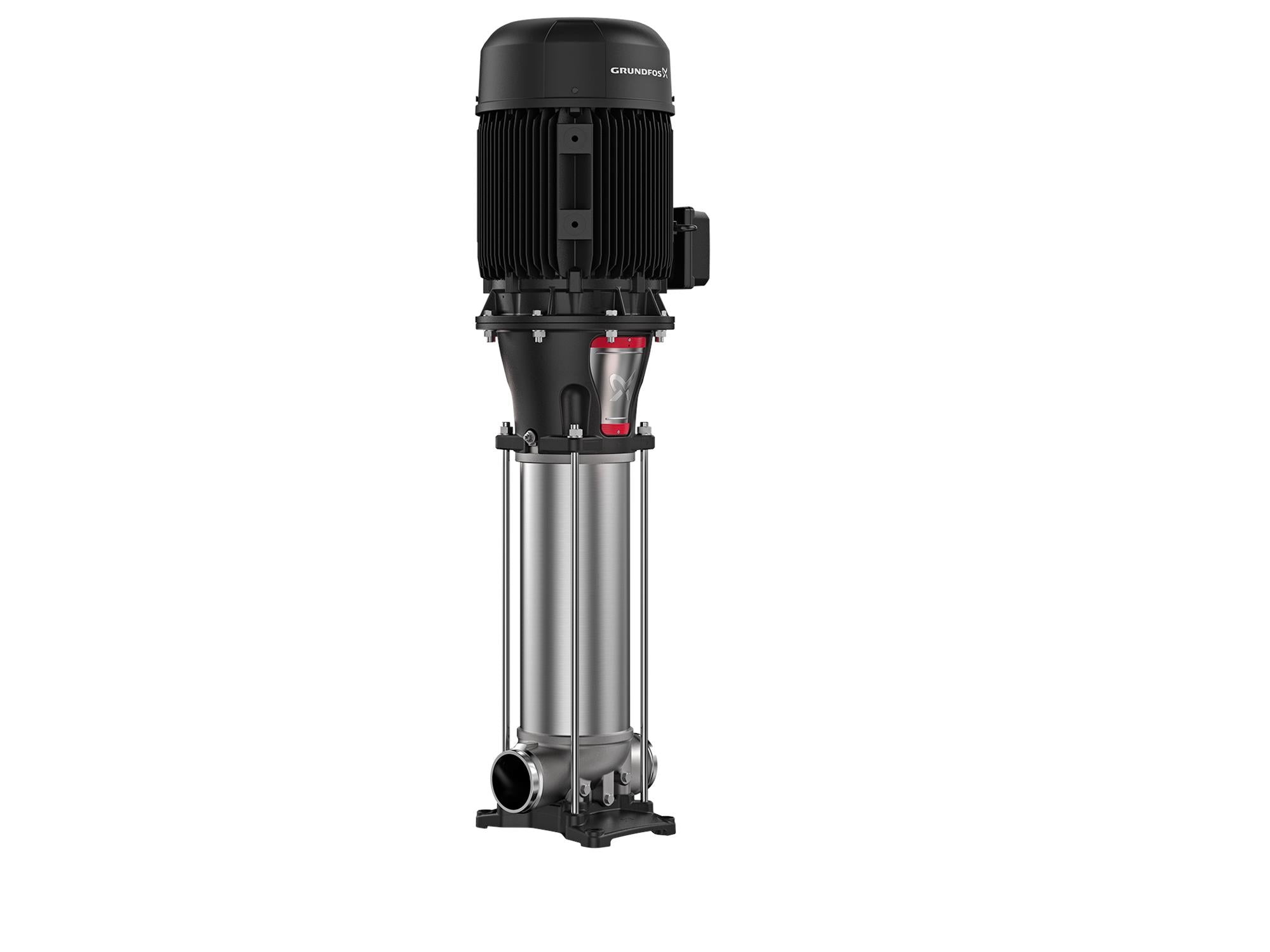

Grundfos 99971218, Vertical Multistage Centrifugal Pump, Stainless Steel

Roll over image to zoom in Click on image to zoom

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made from high-grade stainless steel (EN 1.4401). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Manufacturer	Grundfos
Part Number	99971218
Rated pump speed	3578 rpm
Rated flow	980 US gpm
Rated head	598.1 ft
Maximum head	799.9 ft
Stages	4
Impellers	4
Number of reduced-diameter impellers	2
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals for drinking water	NSF/ANSI 61,NSF/ANSI 372
Curve tolerance	ISO9906:2012 3B
Pump version	A
Base	Stainless steel, EN 1.4408, ASTM A351 CF8M
Impeller	Stainless steel, EN 1.4401, AISI 316
Material code	A
Code for rubber	E
Bearing	WC/WC
Support bearing	Graflon
Thrust handling device	Y
Material certified according to	European standards
Maximum operating pressure	362.59 psi
Max pressure at stated temperature	363 psi / 250 °F
Type of connection	PJE
Size of suction port	8 inch
Size of outlet port	8 inch
Pressure rating for connection	800 psi
Flange size for motor	447TSD
Connect code	P
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Power (P2) required by pump	201 HP
Frequency converter	None
Net weight	743 lb
Gross weight	1000 lb
Shipping volume	44.2 ft³
