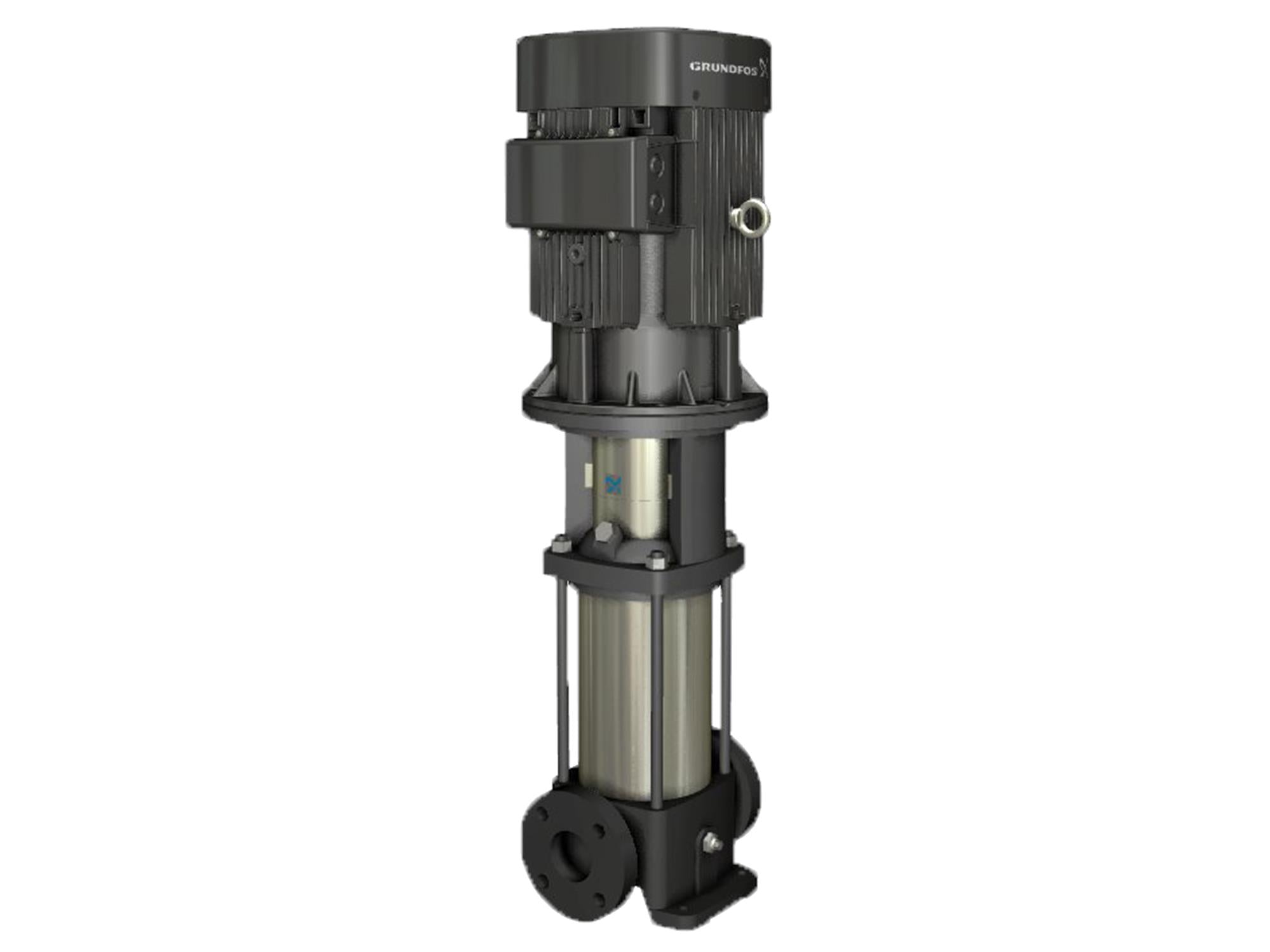

Name: Grundfos 91159210, Vertical Multistage Centrifugal Pump
Brand: Grundfos
SKU: LSIB7W1PGS
Price: 5160.0 USD
Availability: OutOfStock

Grundfos 91159210, Vertical Multistage Centrifugal Pump

Roll over image to zoom in Click on image to zoom

This vertical, multistage centrifugal pump has suction and discharge ports on the same level.

Manufacturer	Grundfos
Part Number	91159210
Rated pump speed	2902 rpm
Rated flow	132 US gpm
Rated head	74.15 ft
Maximum head	103.7 ft
Stages	2
Impellers	2
Number of reduced-diameter impellers	2
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CE,EAC,UKCA,SEPRO
Approvals for drinking water	ACS
Curve tolerance	ISO9906:2012 3B
Pump version	A
Base	Cast iron, EN 1563 EN-GJS-500-7, ASTM A536 80-55-06
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Support bearing	Graflon
Maximum operating pressure	232.06 psi
Max pressure at stated temperature	232 psi / 250 °F, 232 psi / -22 °F
Type of connection	ANSI
Size of suction port	2 1/2 inch
Size of outlet port	2 1/2 inch
Pressure rating for connection	PN 16
Flange rating inlet	150 lb
Flange size for motor	FT130
Connect code	G
Pumped liquid	Water
Liquid temperature range	-22 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	IEC
Power (P2) required by pump	4 HP
Frequency converter	None
Pressure sensor	N
Minimum efficiency index, MEI ≥	0.70
Net weight	109 lb
Gross weight	145 lb
Shipping volume	7.45 ft³

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
