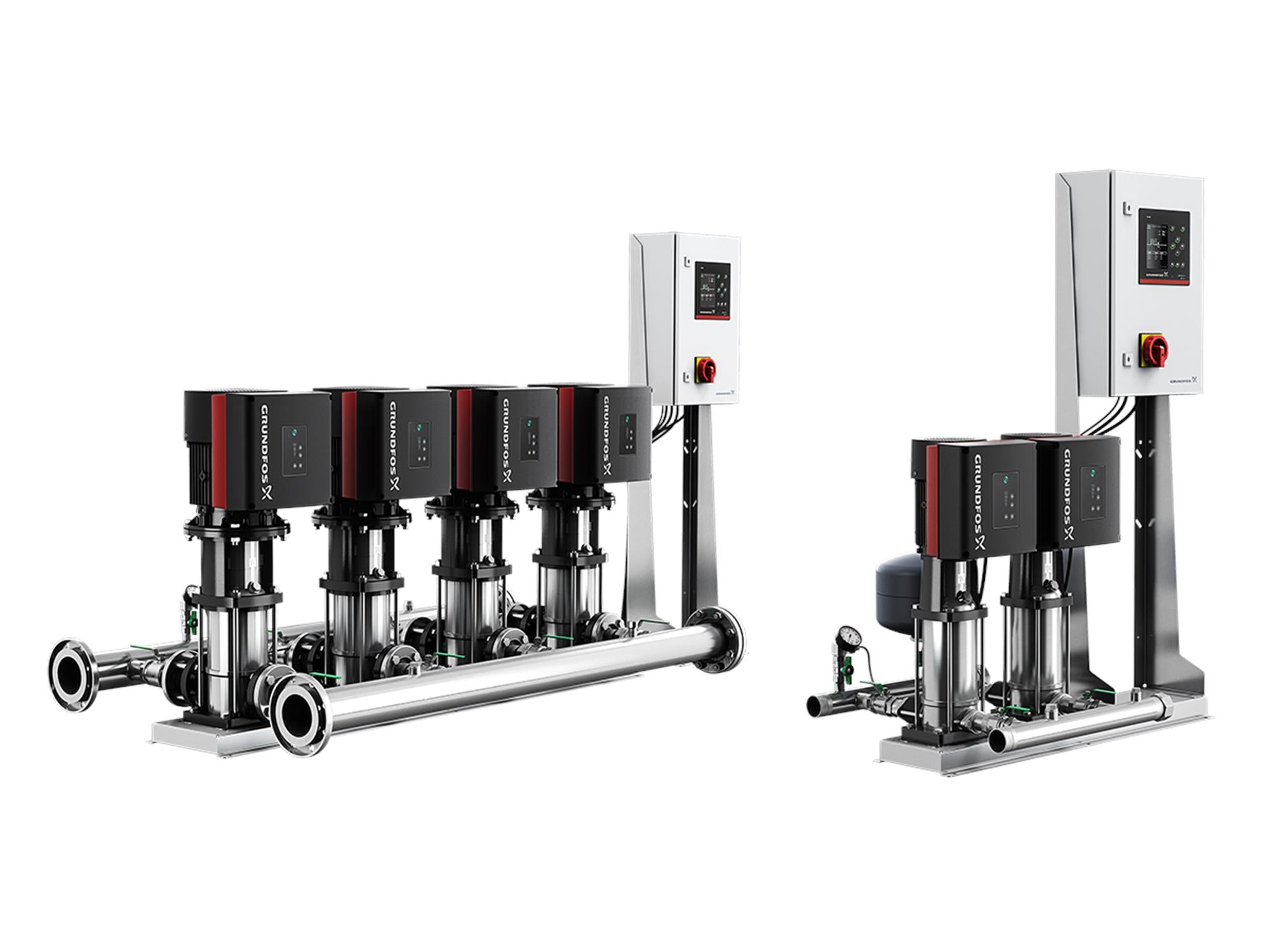

Grundfos 99689145, Hydro MPC-E 4 CRE95-2-2 Pressure Boosting System

Roll over image to zoom in Click on image to zoom

Grundfos 99689145, Hydro MPC-E 4 CRE95-2-2 Pressure Boosting System

Name: Grundfos 99689145, Hydro MPC-E 4 CRE95-2-2 Pressure Boosting System
Brand: Grundfos
SKU: LSIB8IC4MQ
Price: 148955.95 USD
Availability: OutOfStock

SKU: LSIB8IC4MQ Part Number: 99689145

Price:

$148,955.95

Save -20% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This booster set is an advanced and energy-efficient pressure boosting system for clean water applications. It has 2-6 parallel connected pumps, an integrated advanced controller, and all necessary fittings.

Manufacturer	Grundfos
Part Number	99689145
Rated flow	2000 US gpm
Max flow	2600 US gpm
Rated head	153.2 ft
Maximum head	232 ft
Approvals	CULUS,PROP65
Main pump name	CRE 95-2-2
Non-return valve position	Outlet
Number of pumps	4
Manifold	Stainless steel, EN 1.4571, AISI 316 TI
Base	Carbon steel, EN 1.0025, ASTM A36
Range of ambient temperature	41 .. 104 °F
Maximum operating pressure	232.06 psi
Manifold inlet	ANSI 10"
Manifold outlet	ANSI 10"
Pressure rating for connection	PN 16
Earth connection	PE
System design	D
Pumped liquid	Water
Liquid temperature range	41 .. 179.6 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Power (P2) main pump	24.8 HP
Rated power - P2	25 HP
Main frequency	60 Hz
Rated voltage	3 x 460-480 V
Rated current	30.5 A
Rated current of system	123 A
Enclosure class (IEC 34-5)	IP54
Radio interference supression	EMC DIRECTIVE(2014/30/EU)
Number of phases of main pump	3
Control type	E
Dry running protection, mechanical	PRESSURE SENSOR 0-10 BAR
Controller	CU 352
Diaphragm tank	No
Net weight	4110 lb
Gross weight	4720 lb
Shipping volume	415 ft³
Sales region	Namreg
Config. file no	99406274
Configuration file Control MPC	98271948
Configuration file Hydro MPC	98272054

Hydro MPC (Quick Guide)

Hydro MPC (Data booklet)

Hydro MPC (Installation and operating instructions)

HYDRO MPC BOOSTERPAQ®, Pressure Boosting and Water Supply Systems (Product brochure)

HYDRO MPC HVAC, Packaged Pumping Systems (Product brochure)

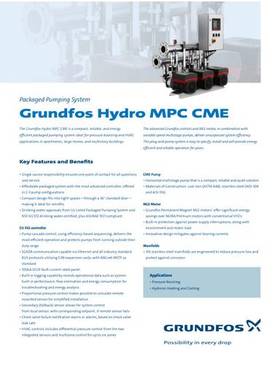

GRUNDFOS HYDRO MPC CME, Packaged Pumping System (Data sheet)

GRUNDFOS DISTRIBUTED PUMPING, A modern approach to HVAC system design (Brochure)

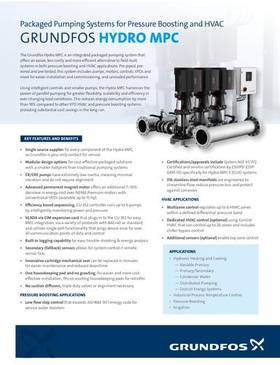

HYDRO MPC, Packaged Pumping Systems for Pressure Boosting and HVAC (Product brochure)

Get It All with Grundfos Plumbing, ONE PARTNER ALL the PUMPS (Product brochure)

Grundfos Data Center Solutions
