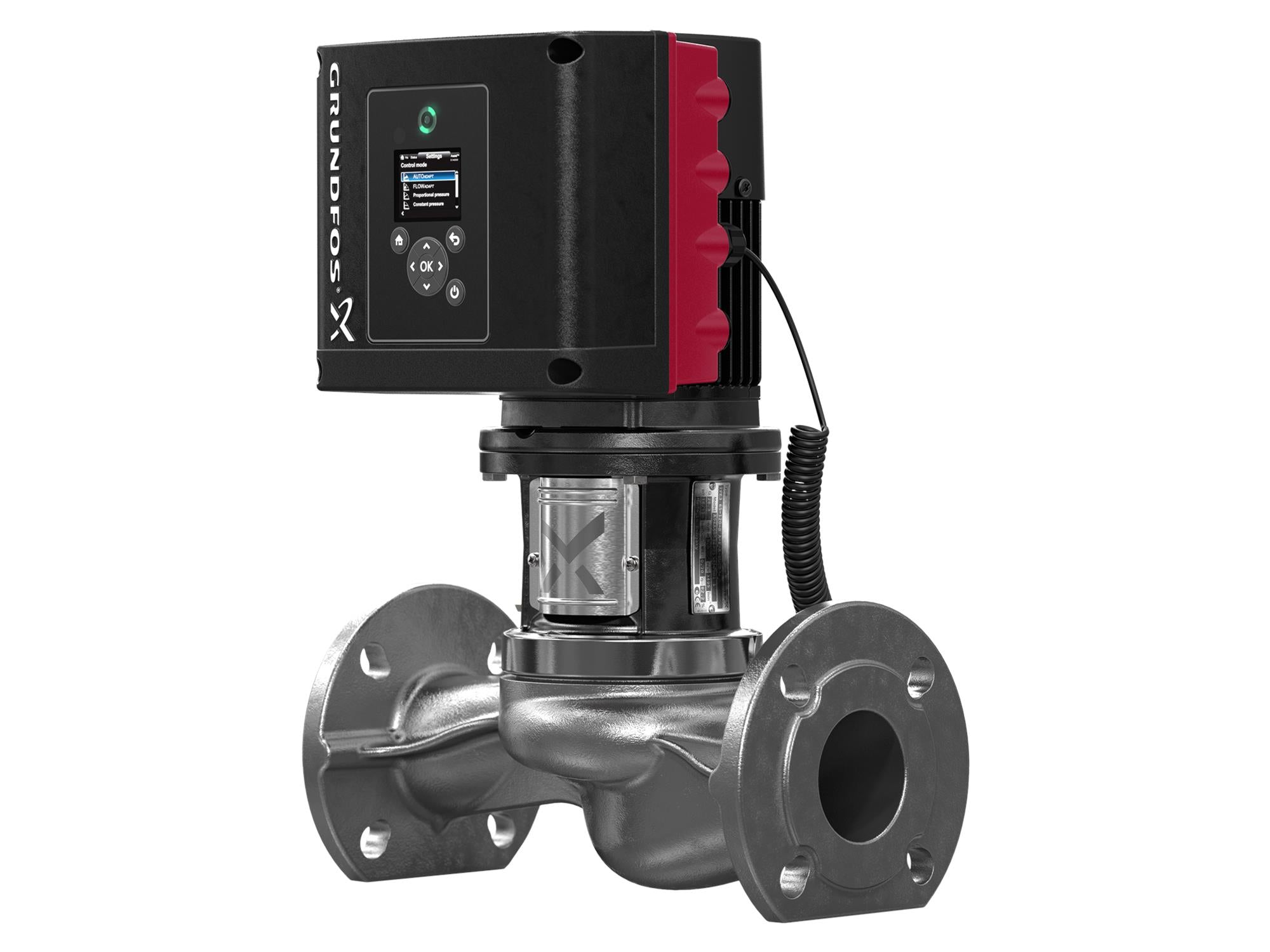

Grundfos 98819610, TPE3 50-80 S-A-G-I-BQQE-DYB Inline Pump

SKU: LSIBH9NIAD Part Number: 98819610

Price:
Sale price$6,215.95 Regular price$10,359.00

Save 40% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability

Description

This inline single-stage pump is a TPE3 model with a stainless steel housing, designed for hot water recirculation. It has a mechanical shaft seal and is fitted with frequency-controlled motors and differential pressure/temperature transmitters.

Specifications

Manufacturer Grundfos
Part Number 98819610
Rated pump speed 3000 rpm
Rated flow 79.3 US gpm
Rated head 19.03 ft
Maximum head 26.25 ft
Actual impeller diameter 2.91 in
Code for shaft seal BQQE
Curve tolerance ISO9906:2012 3B2
Pump version A
Pump housing Stainless steel, EN 1.4308, ASTM CF8
Impeller Composite, PES+30% GF
Material code I
Range of ambient temperature -4 .. 122 °F
Maximum operating pressure 174.05 psi
Max pressure at stated temperature 174.05 psi / 248 °F
Type of connection GF
Size of connection GF 53
Pressure rating for connection PN 12
Port-to-port length 11 1/16 in
Flange size for motor 56C
Connect code G
Pumped liquid Water
Liquid temperature range -13 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor type 71A
Rated power - P2 0.5 HP
Main frequency 60 Hz
Rated voltage 1 x 200-240 V
Rated current 2.4-2.1 A
Cos phi - power factor 0.96
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 84 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel HMI300 - Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Net weight 55.8 lb
Gross weight 71.7 lb
Shipping volume 3.67 ft³
Config. file no 98481397
Country of origin HU
Custom tariff no. 8413.70.2022

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
