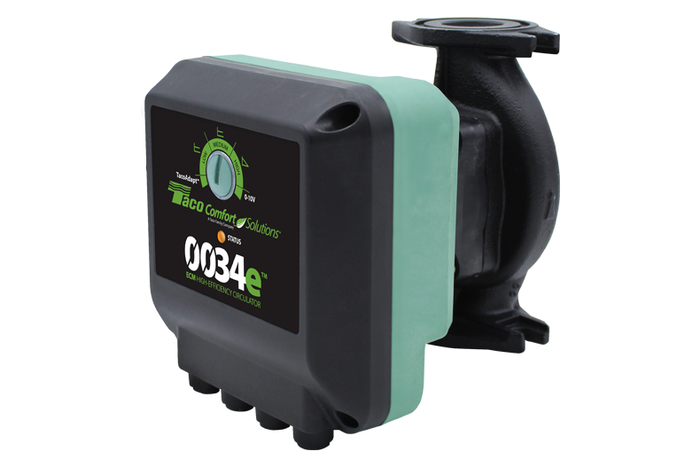

Taco 0034E-F2, 0034e ECM Circulator Pum CI Flgd 115-230/1 Analog

115/208/230v, 50/60Hz, single phase, cast iron ECM circulator pump from Taco.

0034e™ & 0034ePlus™ ECM High-Efficiency Circulators Overview

The 0034e & 0034ePlus ECM High-Efficiency Circulators are high-performance, variable speed, wet-rotor circulators with high-efficiency ECM permanent magnet technology. Their variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. They are ideal for large residential and light commercial hydronic heating, chilled water cooling, and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034e comes with an easy-to-use dial, while the 0034ePlus has an intuitive digital user interface.

Performance Data

• Shut-Off Head: 34 ft
• Max Flow: 50 GPM
• Max Pressure: 150 psi (10.3 bar)
• Max Temp: 230° F (110°C)
• Min Temp: 14°F (-10°C)
• Voltage: 115/208/230V, 50/60Hz Single phase
• Max Power: 170 W
• Max AMP: 1.48 A
• Flange-to-flange: 6-1/2"
• RPM: 830-4300

Features

• Replaces all single-speed and 3-speed circulators in its class
• Rotatable control cover to simplify installation
• BIO Barrier® protects the pump from system contaminants
• SureStart® automatic unblocking and air purging mode
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
• Nut-grabber feature on flanges for easier fit-up
• Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
• Double insulated
• Whisper quiet operation

Applications

• Closed Loop Hydronic Heating
• Hydronic Systems with Zone Valves
• Zoning with Circulators
• Hydronic Heating & Cooling TRV Systems
• DHW recirculation (Stainless Steel)
• Constant Flow Applications
