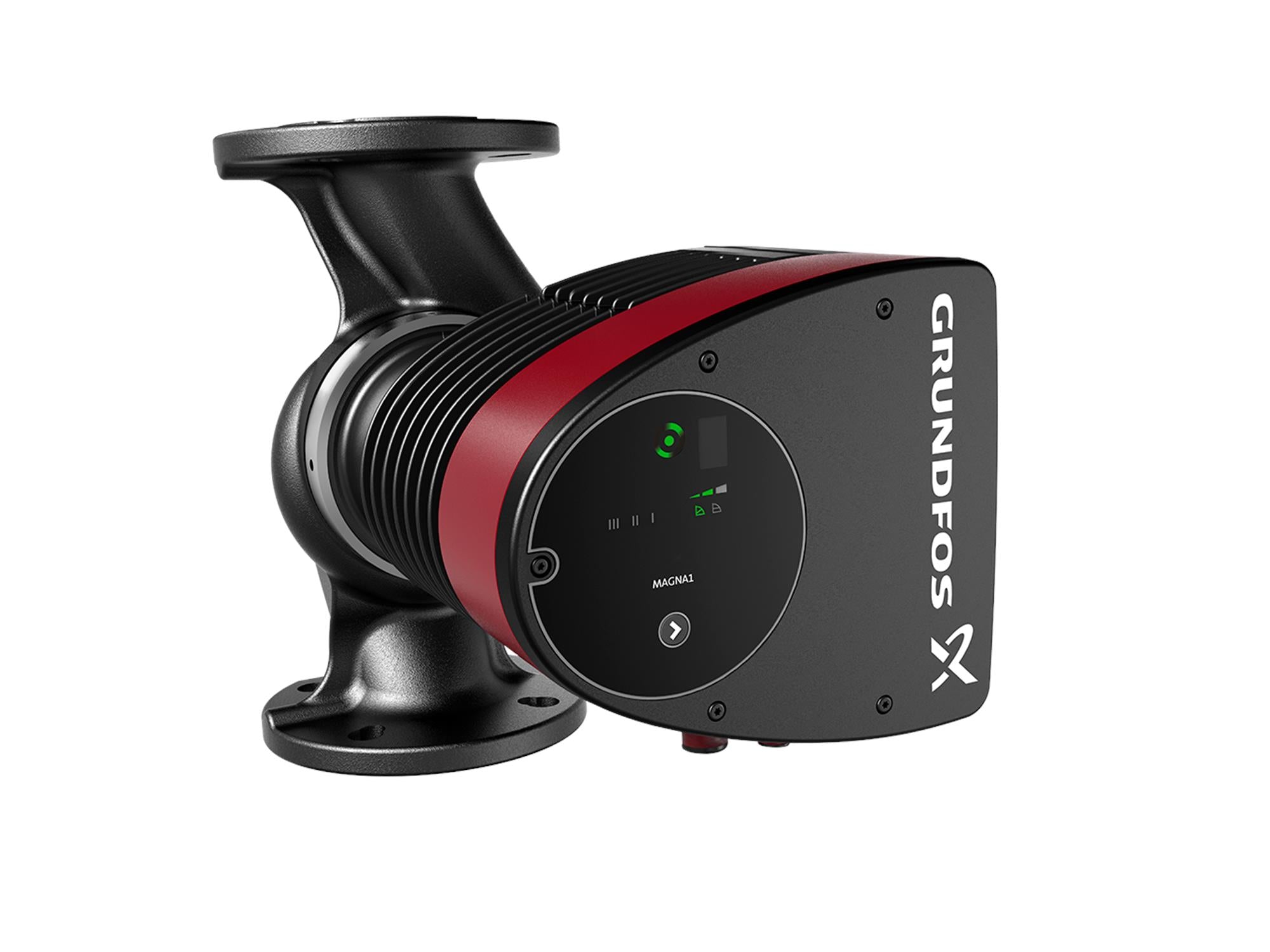

Grundfos 98124695, MAGNA1 65-120 GF Circulator Pump 115V

SKU: LSIBQTOVKF Part Number: 98124695

Price:
Sale price$3,636.95 Regular price$6,494.00

Save 44% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This circulator pump is designed for basic performance needs in heating and cooling applications. It is suitable for commercial air conditioning, commercial heating, and domestic heating systems.

Specifications

Manufacturer Grundfos
Part Number 98124695
Maximum head 39.37 ft
TF class 110
Approvals cETLus, Proposition 65
Pump housing Cast iron, EN 1561 EN-GJL-250, ASTM A48-250B
Impeller Composite
Range of ambient temperature 32 .. 104 °F
Maximum operating pressure 174.05 psi
Flange standard GF
Pipe connection GF53/65
Pressure rating for connection PN 12
Port-to-port length 13 7/16 in
Pumped liquid Water
Liquid temperature range 14 .. 230 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³
Maximum power input - P1 752 W
P1 min. 24 W
Main frequency 60 Hz
Rated voltage 1 x 115 V
Minimum current consumption 0.34 A
Maximum current consumption 6.6 A
Enclosure class (IEC 34-5) X4D
Insulation class (IEC 85) F
Energy (EEI) 0.18
Net weight 48.8 lb
Gross weight 53.7 lb
Shipping volume 1.94 ft³
Country of origin US
Custom tariff no. 8413.70.2015

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
