Name: Grundfos 97653285, Horizontal Multistage End-Suction Pump
Brand: Grundfos
SKU: LSIC5D21ML
Price: 2701.0 USD
Availability: OutOfStock

Grundfos 97653285, Horizontal Multistage End-Suction Pump

Roll over image to zoom in Click on image to zoom

This horizontal multistage end-suction pump is categorized under inline multi stage pumps.

Manufacturer	Grundfos
Part Number	97653285
Rated pump speed	3436 rpm
Rated flow	4.84 US gpm
Rated head	95.48 ft
Maximum head	140.1 ft
Stages	5
Impellers	5
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Horizontal
End suction pump (Yes/No)	Y
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals on nameplate	CURUS,NSF/ANSI 61
Curve tolerance	ISO9906:2012 3B
Pump version	H
Cooling	TEFC
Base	Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	232.06 psi
Max pressure at stated temperature	232 psi / 250 °F, 232 psi / -4 °F
Size of suction port	1 1/2 inch
Size of outlet port	1 inch
Pressure rating for connection	PN 16
Flange rating inlet	150 lb
Flange size for motor	56C
Connect code	GA
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	BALDOR
Rated power - P2	0.33 HP
Power (P2) required by pump	0.33 HP
Main frequency	60 Hz
Rated voltage	1 x 115/230 V
Service factor	1.35
Rated current	6.00/3.00 A
Rated speed	3450 rpm
IE efficiency	58%
Motor efficiency at full load	58 %
Number of poles	2
Insulation class (IEC 85)	B
Built-in motor protection	NONE
Frequency converter	None
Pressure sensor	N
Net weight	65.1 lb
Gross weight	77.4 lb
Shipping volume	6.11 ft³
Sales region	USA

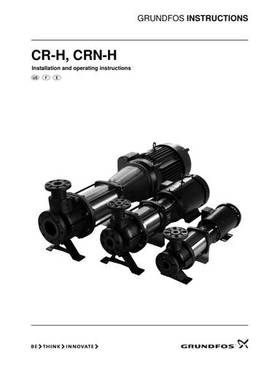

CR-H, CRN-H (Installation and operating instructions)

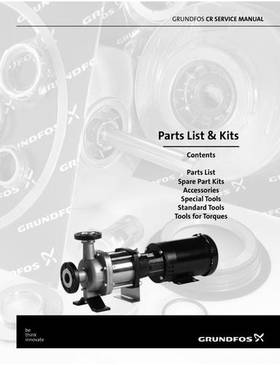

CR1-H (Industrial Service Manual)

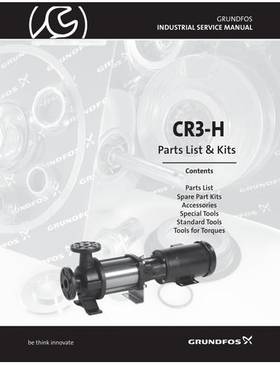

CR3-H (Industrial Service Manual)

CR5-H (Industrial Service Manual)

CRN1s-H (Industrial Service Manual)

CRN3-H (Industrial Service Manual)

CRN5-H (Industrial Service Manual)

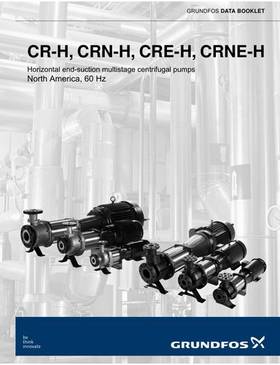

CR-H, CRN-H, CRE-H, CRNE-H (Data booklet)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)
