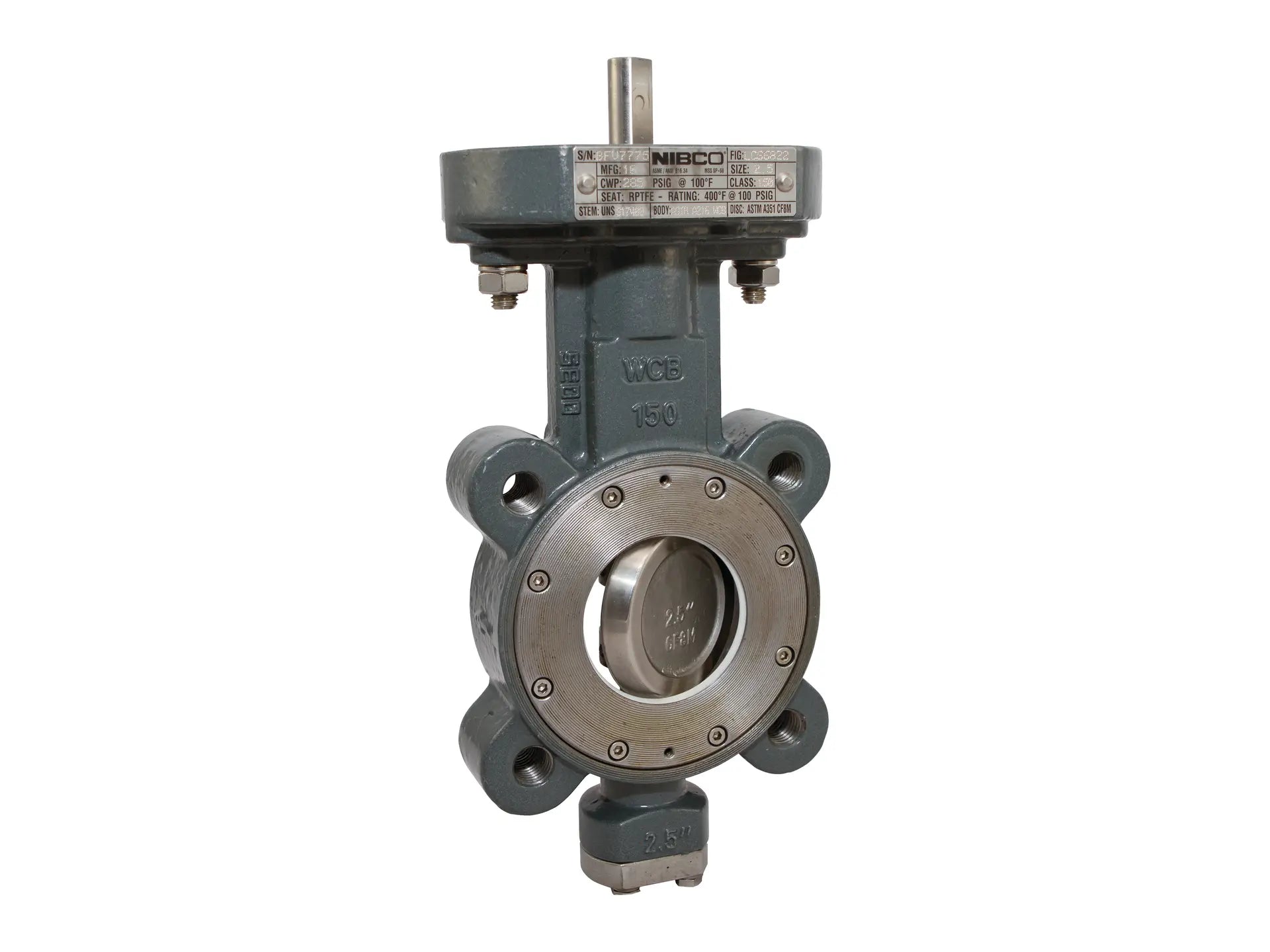

NIBCO LCS-6822 2-1/2" Lug High Performance Butterfly Valve NLL205E

SKU: LSIC9GPFS1 Part Number: NLL205E Model: LCS-6822-5

Price:
Sale price$1,555.95 Regular price$2,682.00

Save 42% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO high performance lug style butterfly valve features a carbon steel body with stainless steel trim. It is ideally suited for commercial, industrial and mechanical HVAC services. The valve performs isolation and throttling services in heating hot water, condenser water, glycol, chilled water, compressed air, chemical process, and domestic water or steam (2" to 12" 150 psi; on/off 50 psi modulating). The lug type butterfly valve features live loaded adjustable packing with a unique flush-mounted packing gland. The high performance valve also provides uni-directional dead-end service and includes an arrow on the body to indicate the flow direction. Seats are glass reinforced PTFE to provide exceptional chemical and heat resistance. Other features include the powder coated epoxy finish, direct mount actuation, integrally cast disc-stop and dual offset design, one-piece, blowout-proof 17-4PH stainless steel stem with 304 stainless steel bushings PTFE coated. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO high performance butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO high performance butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Valve pressure rating 285 psi
  • Maximum operating temperature 400°F at 100 psi
  • Lug style
  • Glass reinforced PTFE seats
  • Blowout-proof stem
  • Stainless steel disc and stem
  • Integrally cast disc stop
  • Dual offset design
  • Direct mount actuation
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  • MSS SP-68 (design) 100% production tested
  • MSS SP-25 (markings)
  • API 609 seat pressure/temperature ratings/blow-out proof stem
  • ASME/ANSI B16.34A, body pressure/temperature ratings
  • ASME/ANSI B16.5 flange dimensions
  • ISO 5211 EN 12116 actuator mounting top works
  • ANSI Class 150

Specifications

Manufacturer NIBCO
Part Number NLL205E
Model LCS-6822-5
Series LCS-6822
Type of Valve Butterfly
Nominal Pipe Size 2-1/2"
End Connection Type L - Lug
Material Carbon Steel
Butterfly Operator Gear Operator
Turns Operations Quarter-Turn
Seat Seal Material PTFE
UPC Code 039923315038
Length 15.85"
Width 9.27"
Height 8"
Country of Origin US
Potable Water Code LL Compliant not NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
