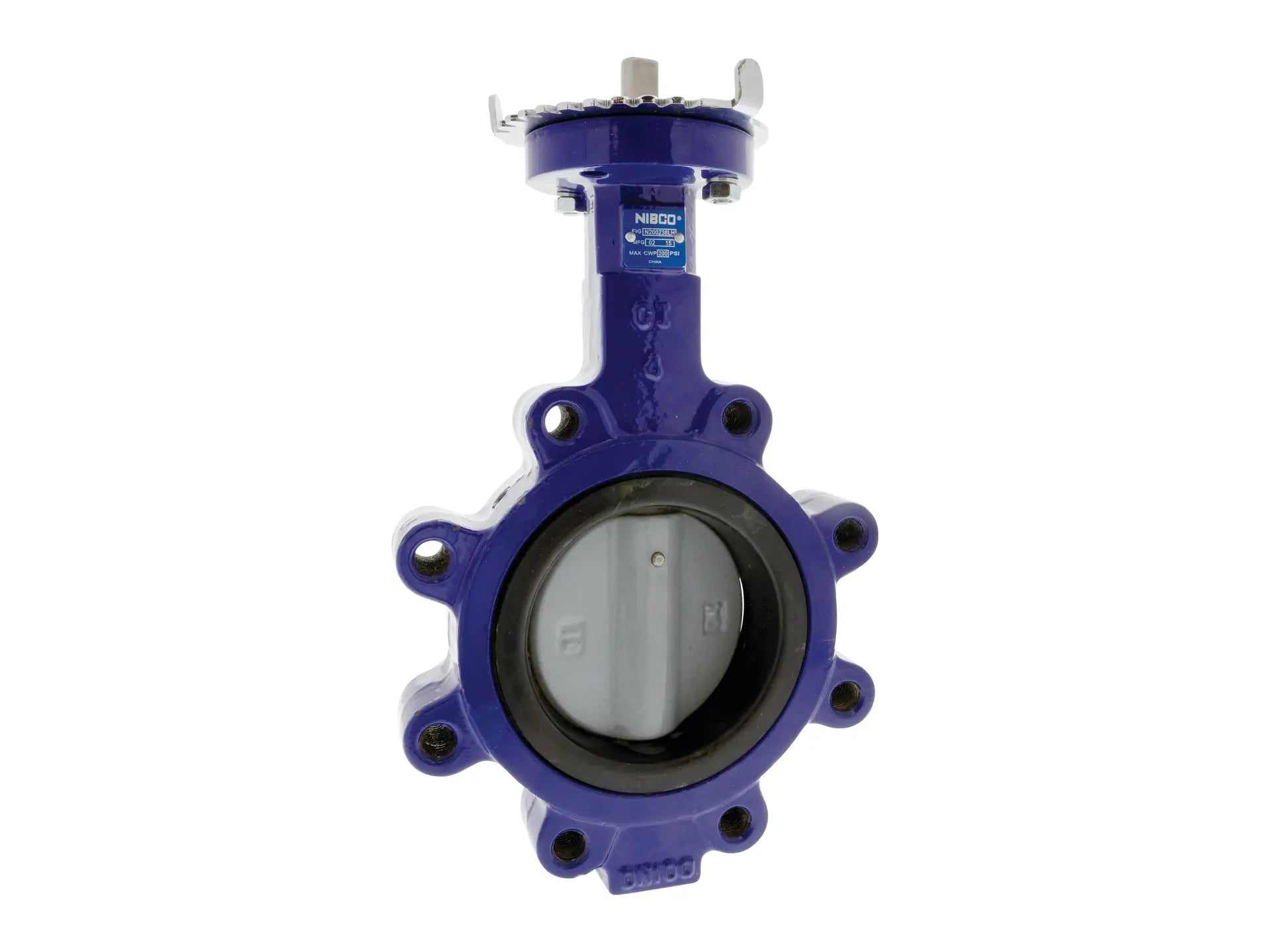

NIBCO N150248GO 20" Lug Cast Iron Butterfly Valve NLJ382W

SKU: LSICF3LBFZ Part Number: NLJ382W Model: N150248GO

Price:
Sale price$11,205.95 Regular price$17,786.45

Save 37% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

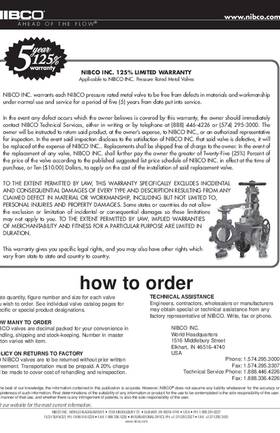

This NIBCO lug type butterfly valve provides in-line bubble-tight shutoff at 200 psi. The valve delivers bi-directional dead-end service without a downstream flange at pressures of 200 psi (2" to 6"), 150 psi (8") and 100 psi (10"-12"). The valve performs well in commercial applications including HVAC, and hot/cold potable water. This NIBCO cast iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge seat liner with ductile iron, electro nickel plated disc may be used in water applications. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO international cast iron butterfly valves for versatile and economical applications in commercial systems. These valves are backed by the NIBCO 5-year125% limited warranty.

Features

  • Valve pressure rating 150 psi
  • 225°F continuous and 250°F intermittent service
  • Lug style
  • Nylon Bonded Ductile Iron Disc
  • Buna-N cartridge seat liner
  • Stainless steel stem with bronze bushings
  • Extended neck
  • Operating mechanism: Bare stem, lever-lock operating system, manual gear operator
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • Designed to meet API 609

Specifications

Manufacturer NIBCO
Part Number NLJ382W
Model N150248GO
Series N150248GO
Type of Valve Butterfly
Nominal Pipe Size 20"
End Connection Type L - Lug
Material Cast Iron
Butterfly Operator Gear Operator
Turns Operations Quarter-Turn
Seat Seal Material Buna-N Nitrile Rubber
Pressure Rating (psi) 150 psi rated pressure
UPC Code 039923411259
Length 42.91"
Width 27"
Height 15.79"
Country of Origin CN
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
