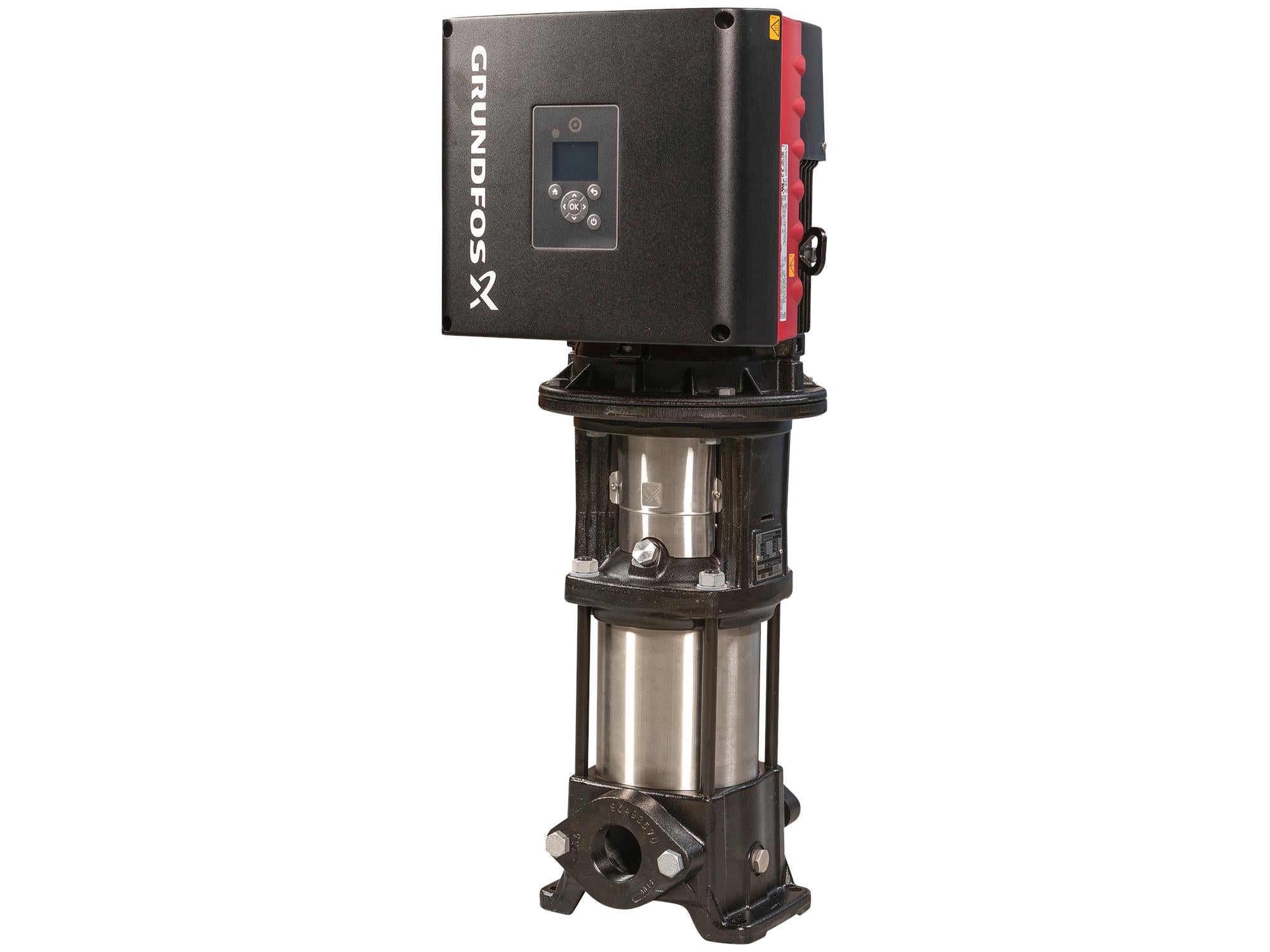

Grundfos 99388994, CRE1-15 A-B-A-E-HQQE Vertical Multistage Pump

SKU: LSICIGBGPG Part Number: 99388994

Price:
Sale price$5,617.95 Regular price$6,277.00

Save 10% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump features a MGE E-motor with a built-in frequency converter for precise control and efficiency. With a cast iron head and stainless steel wetted parts (EN 1.4301), it operates at 15 HP, 480V in three-phase, ideal for water treatment, fertigation, chemigation, and irrigation applications.

Specifications

Manufacturer Grundfos
Part Number 99388994
Rated pump speed 3452 rpm
Rated flow 9.69 US gpm
Rated head 315.6 ft
Maximum head 433.7 ft
Stages 15
Impellers 15
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version A
Base Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Bearing SIC
Maximum ambient temperature 104 °F
Maximum operating pressure 232.06 psi
Max pressure at stated temperature 232 psi / 250 °F, 232 psi / -4 °F
Type of connection Oval / NPT(F)
Size of suction port 1 inch
Size of outlet port 1 inch
Pressure rating for connection PN 16
Flange size for motor 56C
Connect code B
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 90C
Rated power - P2 2 HP
Power (P2) required by pump 2 HP
Over/undersize motor Standard motor size
Main frequency 60 Hz
Rated voltage 3 x 200-240 V
Service factor 1.00
Rated current 5.4-4.6 A
Cos phi - power factor 0.92
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 88.9 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Pressure sensor N
Terminal box position 6
Net weight 72.3 lb
Gross weight 86.8 lb
Shipping volume 8.26 ft³
Config. file no 99304099
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Grundfos 96453497, Chamber Stack Kit CR/CRI 1-15
Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Grundfos 96455090, Gasket Kit EPDM CR/I/N 1S/1/3/5
