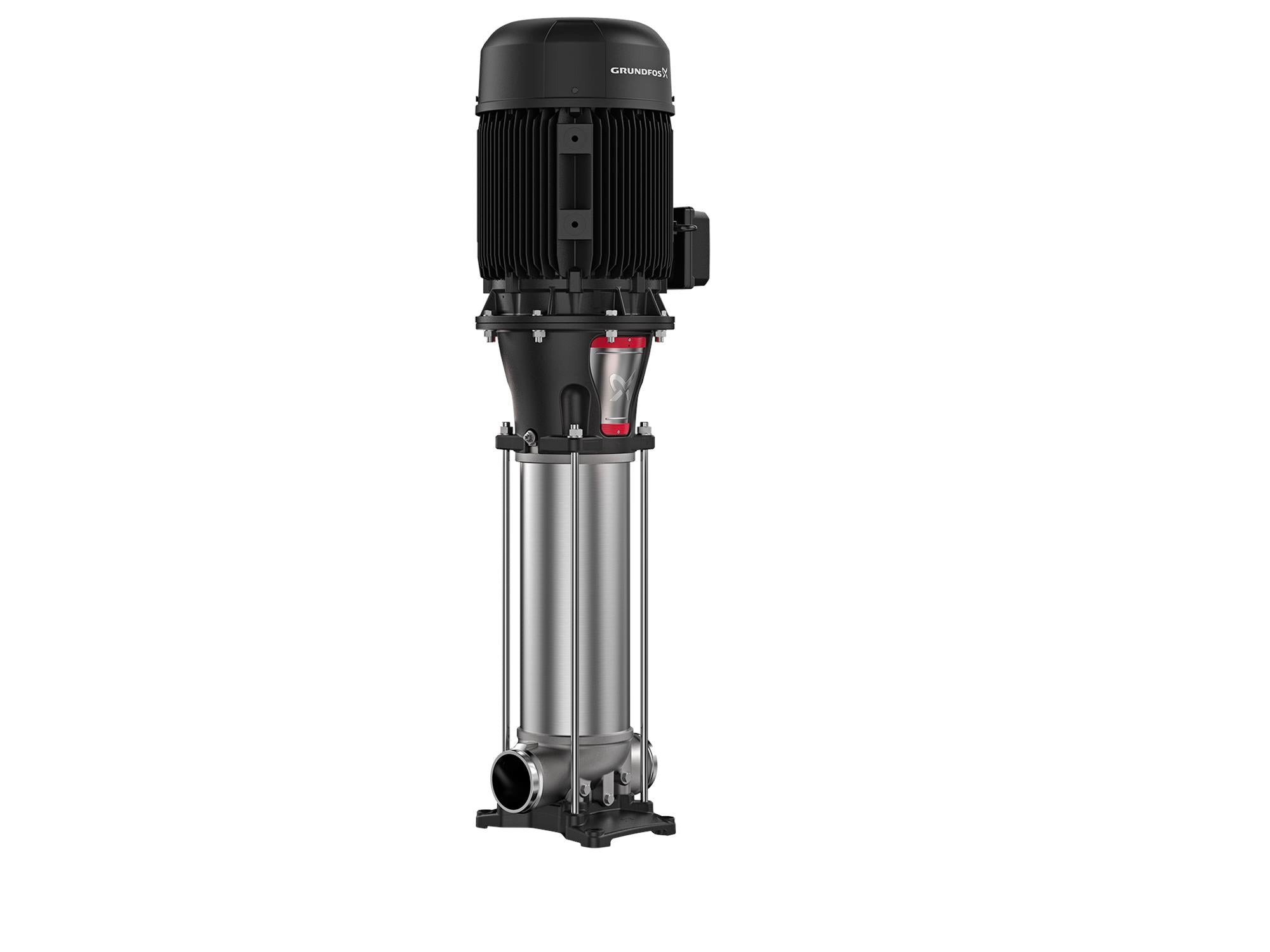

Grundfos 99400608, CRN 255-4-1 A-P-A-V-HQQV Vertical Multistage Pump

SKU: LSICMM2J10 Part Number: 99400608

Price:
Sale price$70,842.95 Regular price$110,691.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with high-grade stainless steel (EN 1.4401) for durability in applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, and drip irrigation systems.

Specifications

Manufacturer Grundfos
Part Number 99400608
Rated pump speed 3576 rpm
Rated flow 1350 US gpm
Rated head 729.7 ft
Maximum head 909.2 ft
Stages 4
Impellers 4
Number of reduced-diameter impellers 1
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQV
Approvals for drinking water NSF/ANSI 372
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, ASTM A351 CF8M
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber V
Bearing WC/WC
Support bearing Graflon
Thrust handling device Y
Material certified according to European standards
Maximum operating pressure 580.15 psi
Max pressure at stated temperature 363 psi / 194 °F, 580.15 psi / 176 °F
Type of connection PJE
Size of suction port 8 inch
Size of outlet port 8 inch
Pressure rating for connection 800 psi
Flange size for motor 449TSD
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Power (P2) required by pump 300 HP
Frequency converter None
Net weight 745 lb
Gross weight 1000 lb
Shipping volume 44.2 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
