Grundfos 96124865, Vertical Multistage Centrifugal Pump, Titanium

SKU: LSID4VDRUI Part Number: 96124865

Price:
Sale price$8,998.95 Regular price$13,431.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Obsolete
 More payment options

Description

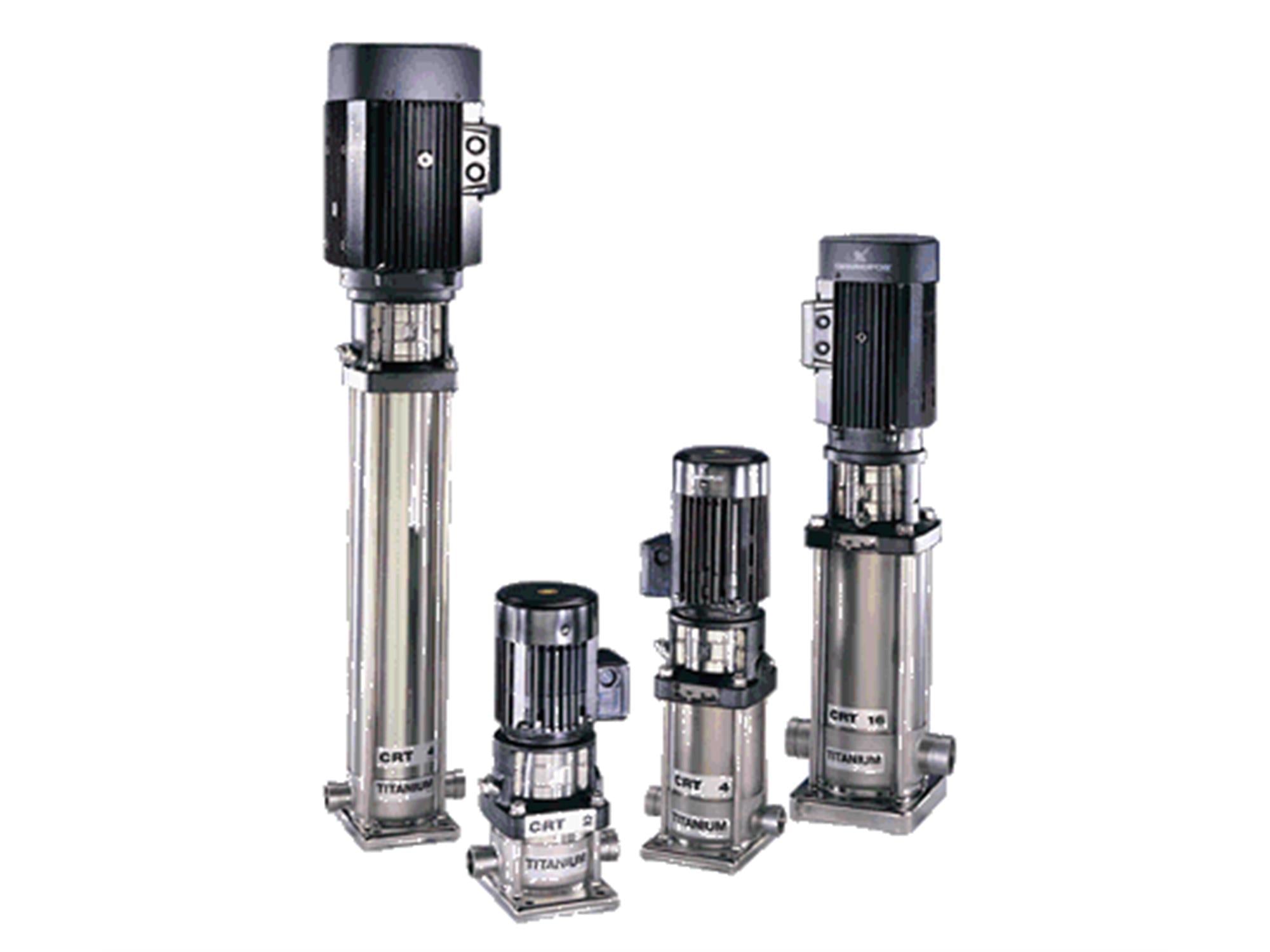

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with titanium, providing exceptional resistance to a wide range of acids, alkalis, seawater, and industrial chemicals.

Specifications

Manufacturer Grundfos
Part Number 96124865
Pump speed on which pump data is based 3454 rpm
Rated flow 52.8 US gpm
Rated head 113.9 ft
Head max 154.2 ft
Stages 4
Impellers 3
Low NPSH N
Pump orientation Vertical
Primary shaft seal AUUE
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version A
Pump housing Titanium, ASTM B 265
Impeller Titanium, ASTM B 265
Material code A
Code for rubber E
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Flange standard Victaulic
Pipe connection PJE 2
Flange size for motor 182TC
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Power (P2) required by pump 3 HP
Number of poles 2
Frequency converter None
Net weight 52.9 lb
Gross weight 75 lb

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
