Description

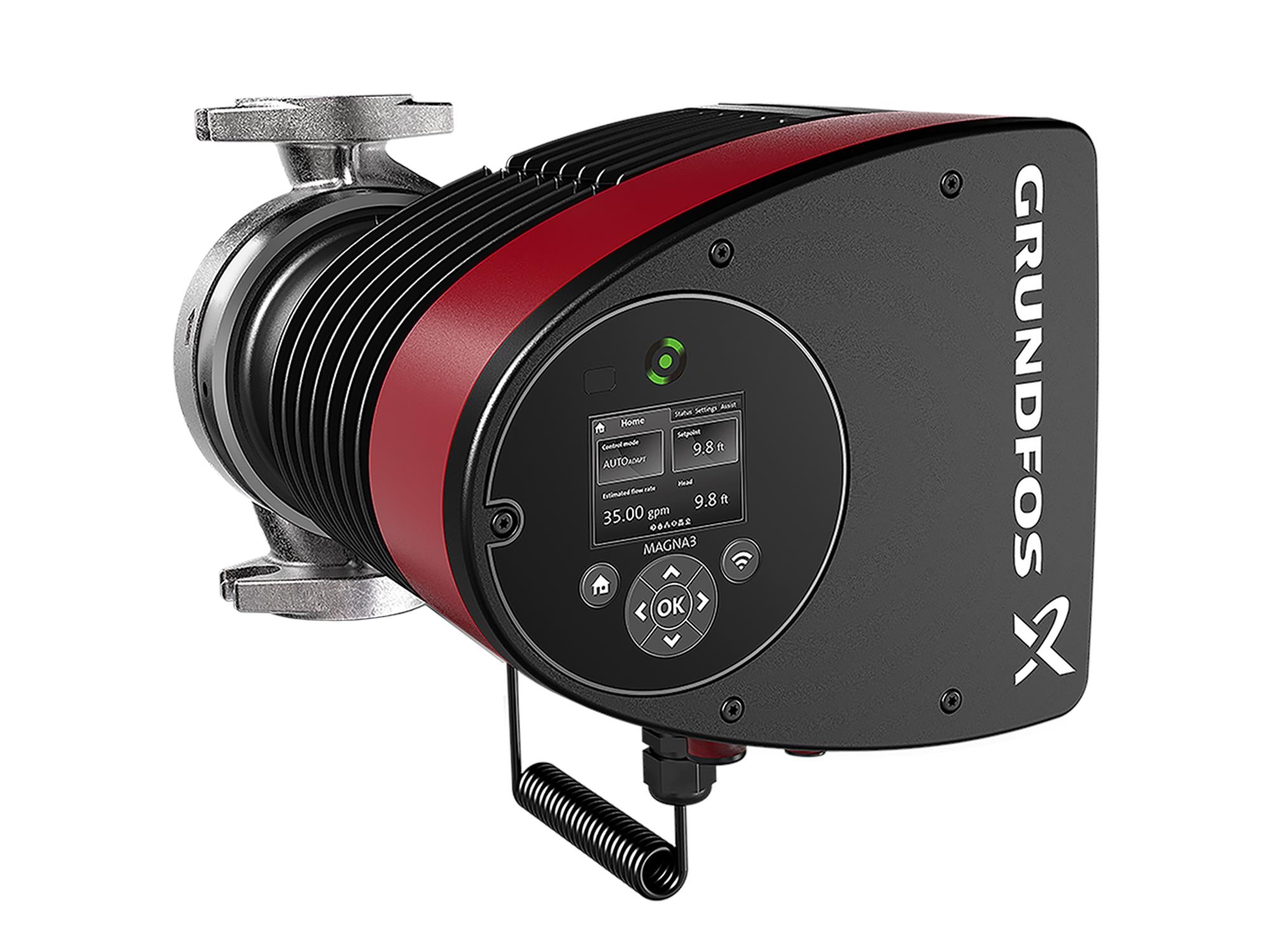

This circulator pump, known as the MAGNA3 40-120 GF N, is designed for commercial hot water recirculation and domestic hot water applications. It operates at 115 volts with a stainless-steel construction suitable for specific media requirements. The pump has integrated Bluetooth connectivity, allowing direct interaction with the GO APP for enhanced control and monitoring.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98126806 |
| Rated flow | 55.5 US gpm |
| Rated head | 25.59 ft |
| Maximum head | 39.37 ft |
| TF class | 110 |
| Approvals | cETLus, Proposition 65 |
| Approvals for drinking water | NSF372 |
| Pump housing | Stainless steel, EN 1.4308, ASTM A351-CF8 |
| Impeller | Composite |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 174.05 psi |
| Flange standard | GF |
| Pipe connection | GF15/26/40/43 |
| Pressure rating for connection | PN 12 |
| Port-to-port length | 8 9/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Maximum power input - P1 | 448 W |
| P1 min. | 16 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Minimum current consumption | 0.26 A |
| Maximum current consumption | 3.96 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Energy (EEI) | 0.19 |
| Net weight | 32.2 lb |
| Gross weight | 35.6 lb |
| Shipping volume | 1.06 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2005 |
