Grundfos 98160735, CRN 1-30 A-FGJ-A-E-HQQE Vertical Multistage Pump

SKU: LSIE7HU02F Part Number: 98160735

Price:
Sale price$4,687.95 Regular price$6,997.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98160735
Rated pump speed 2896 rpm
Rated flow 7.93 US gpm
Rated head 463.3 ft
Maximum head 610.3 ft
Stages 30
Impellers 30
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor FT115
Connect code FGJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard IEC
Power (P2) required by pump 2 HP
Frequency converter None
Pressure sensor N
Net weight 93.8 lb
Gross weight 106 lb
Shipping volume 4.7 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Grundfos 96455090, Gasket Kit EPDM CR/I/N 1S/1/3/5
Save 7%

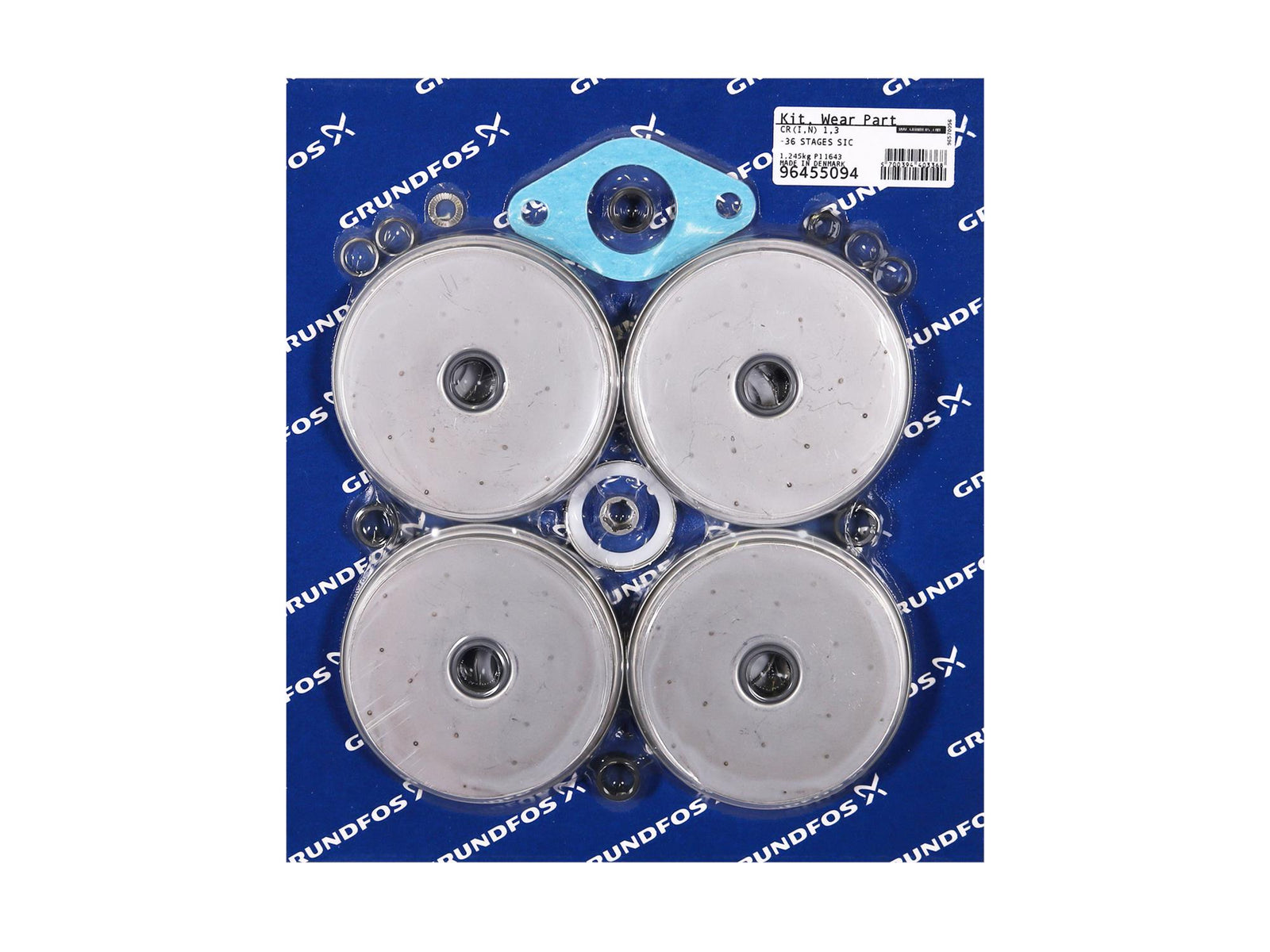

Grundfos 96455094, Wear Part Kit for CR/I/N1s/1/3 -36 st (SIC)
Save 6%
Grundfos logo
Grundfos Grundfos 96453526, Chamber Stack Kit CRN 1-30
Sale price$1,994.95 Regular price$2,133.00
