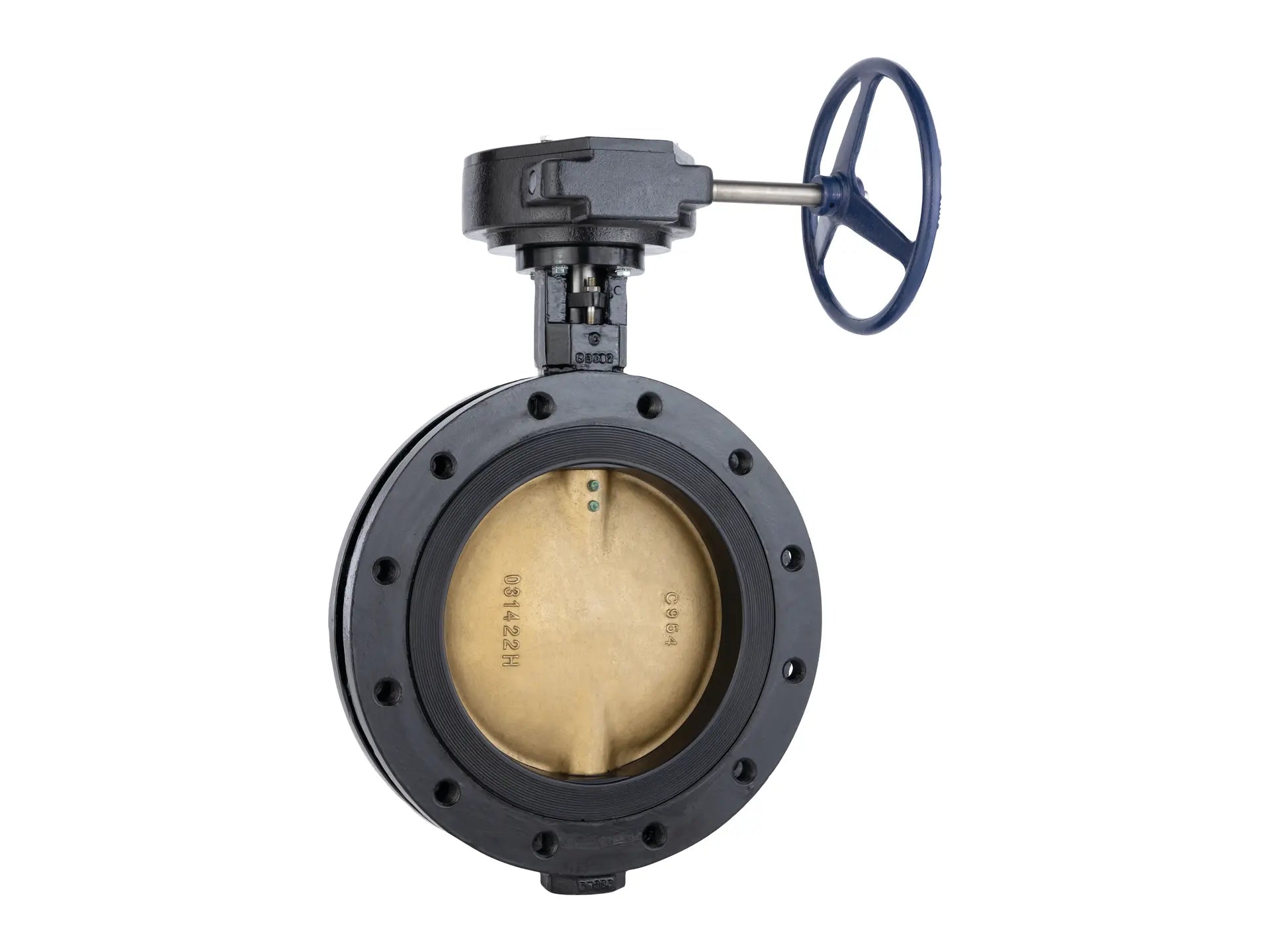

NIBCO LD-7000 36" Lug Butterfly Valve NLHL15Z

SKU: LSIFH3SJ0Y Part Number: NLHL15Z Model: LD70005

Price:
Sale price$100,522.95 Regular price$189,665.00

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is assembled to order and additional lead-times may apply.

This lug-type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shutoff at 232 psi to meet today's higher pressure demands. The valve performs well in isolation and throttling applications, commercial, some light industrial process, and a range of chemical applications. This NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90°) open to close. The unique EPDM molded-in seat liner with aluminum bronze disc is recommended for the higher pressure requirements of commercial HVAC systems today. An extended neck allows for insulation up to 2 inches.

Specifications

Manufacturer NIBCO
Part Number NLHL15Z
Model LD70005
Series LD-7000
Type of Valve Butterfly
System Use Commercial Plumbing, HVAC, Industrial
Material Ductile Iron
Nominal Pipe Size 36"
End Connection Type Lug
Potable Water Code LL Compliant NSF/ANSI 372
Butterfly Operator Gear Operator
Turns Operations Quarter-Turn
Seat Seal Material EPDM Rubber
Pressure Rating (psi) 232 psi
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
UPC 039923435675
Length 79"
Width 46"
Height 20"
Country of Origin CN

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
