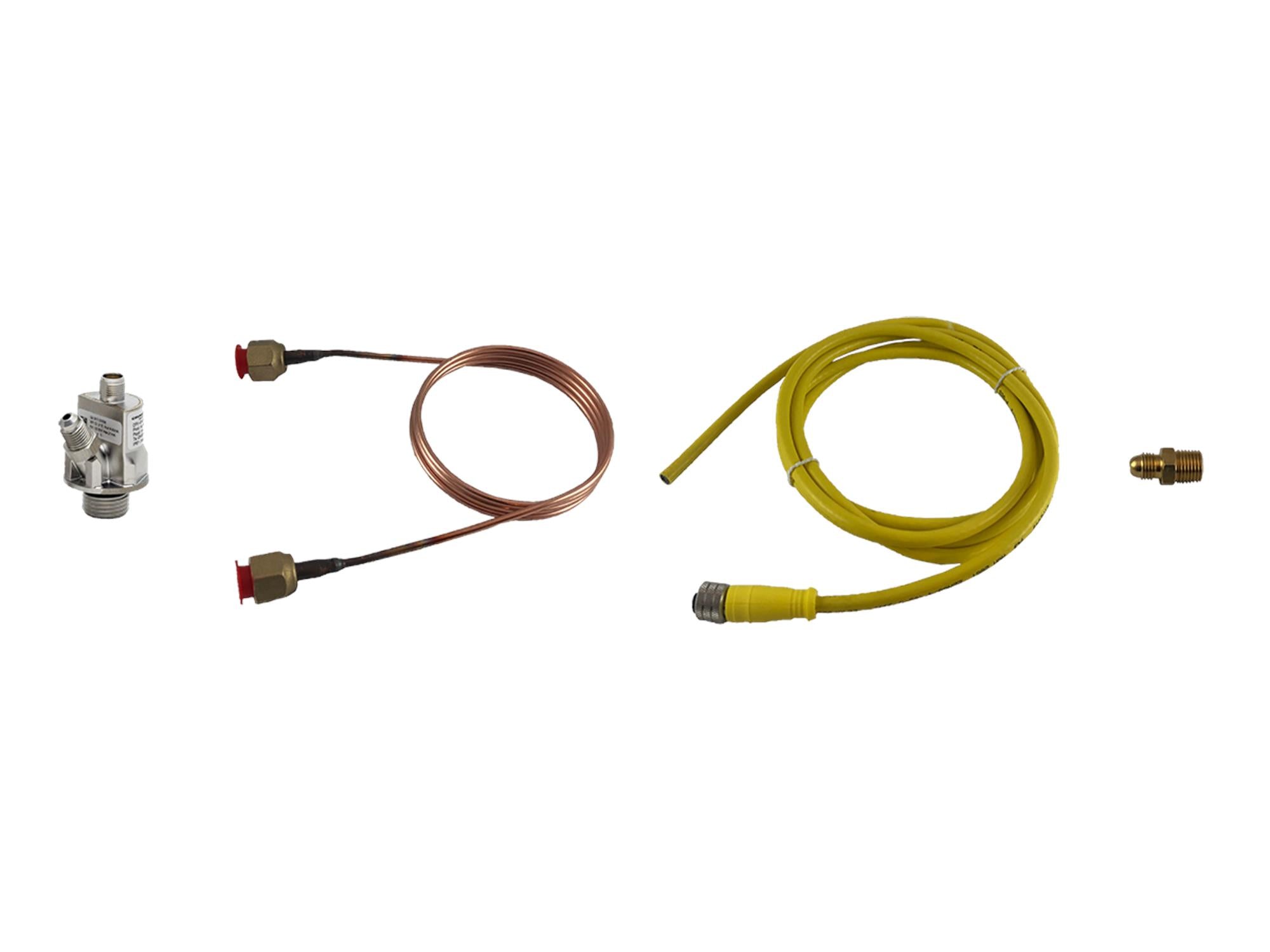

This transmitter is part of a differential pressure industrial sensor family designed to be robust and accurate. It uses Silicoat coating for direct contact with media, ensuring stable signals.
Specifications
Manufacturer
Grundfos
Part Number
97747198
Approvals
CCSAUS
Approvals for drinking water
AS4020, WRAS, UBA, ACS
Pressure differential functionality (Yes/No)
Y
Pressure relative functionality (Yes/No)
N
Flow functionality (Yes/No)
N
Temperature functionality (Yes/No)
N
Minimum measuring pressure
0 psi
Maximum measuring pressure
58.02 psi
Range of ambient temperature
-13 .. 140 °F
Liquid temperature range
-22 .. 248 °F
Enclosure class (IEC 34-5)
IP67
Length of cable
6.56 ft
Minimum rated voltage DC
12.50 V
Maximum rated voltage DC
30.00 V
Net weight
0.83 lb
Gross weight
1.4 lb
Danish VVS No.
475274040
Finnish LVI No.
4534522
Country of origin
DK
Custom tariff no.
9026.20.4000
